DTC B1782: Rear Occupant Classification Sensor LH Circuit Malfunction: Wiring Diagram

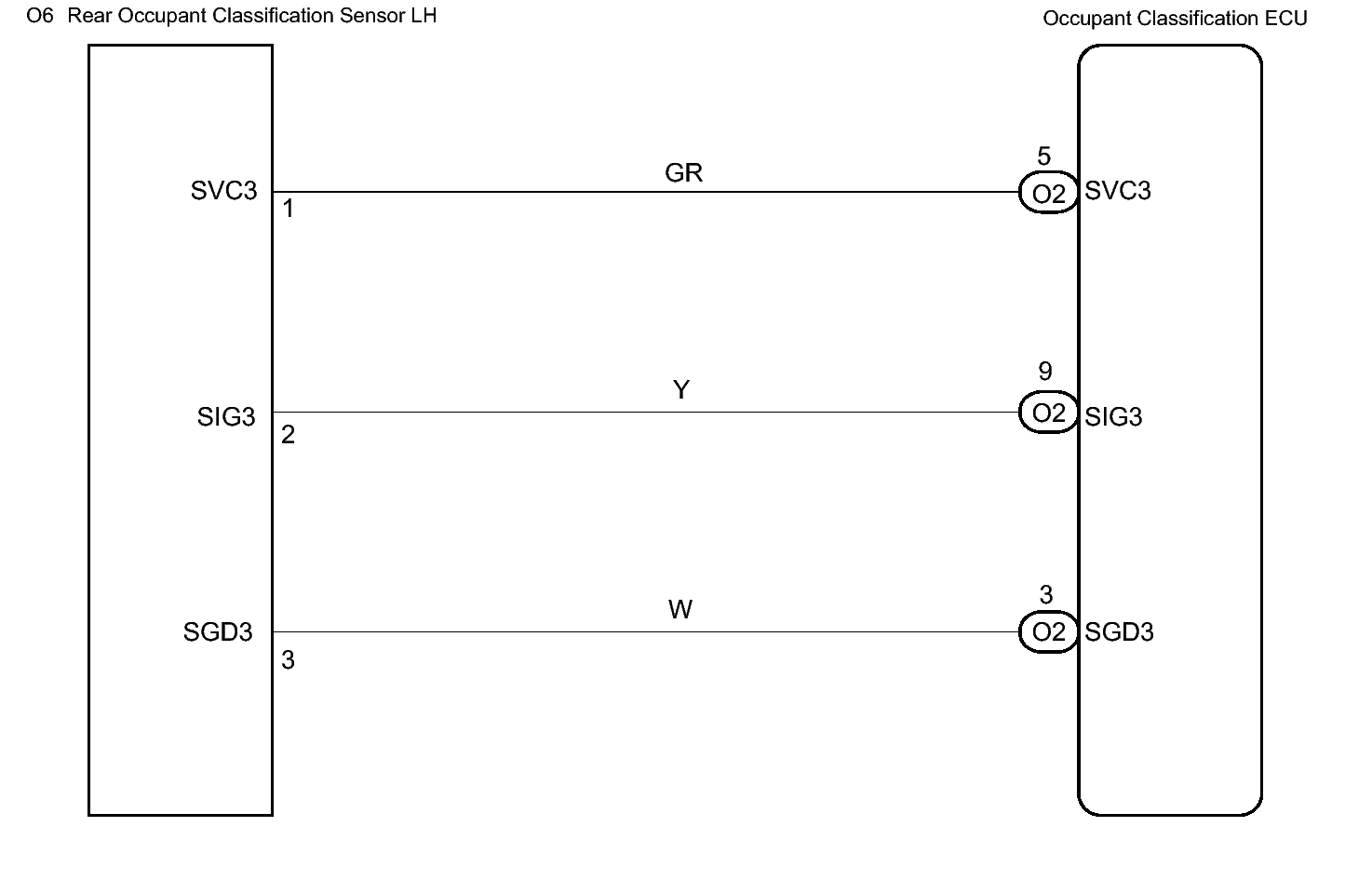

Fig 1: Rear Occupant Classification Sensor LH Circuit - Wiring Diagram
GTY210062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
