Remote Control Mirror (w/o Driving Position Memory): Notes

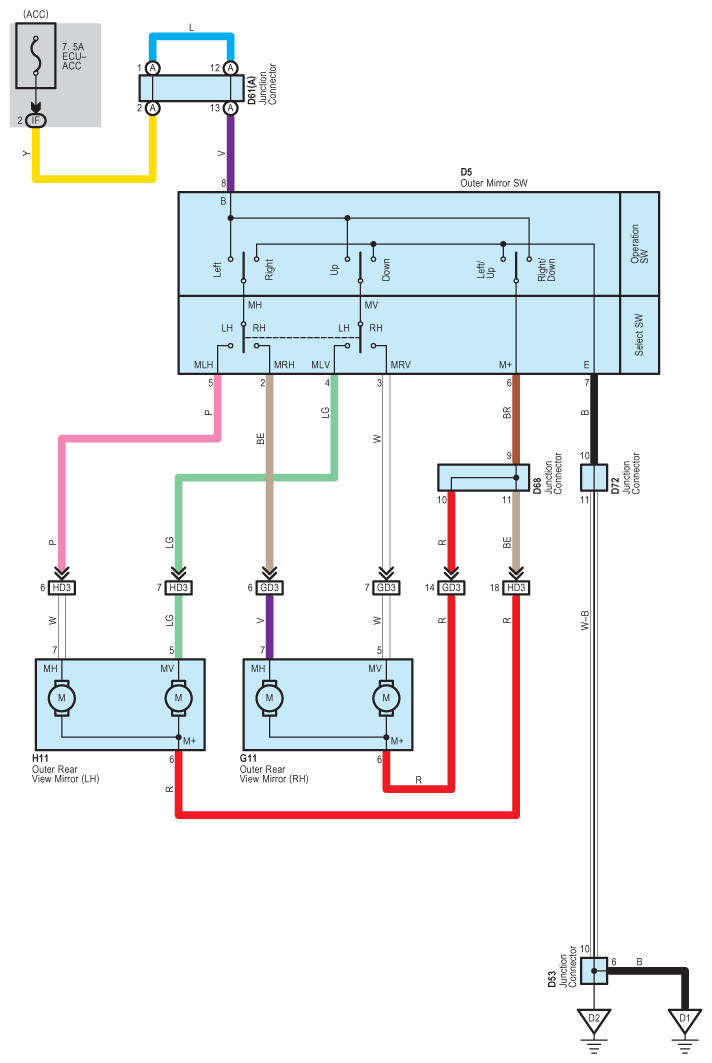

Fig 1: Remote Control Mirror (w/o Driving Position Memory) System Wiring Diagram

G08797491

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
