Combination Switch ECU Power Source Circuit: Wiring Diagram

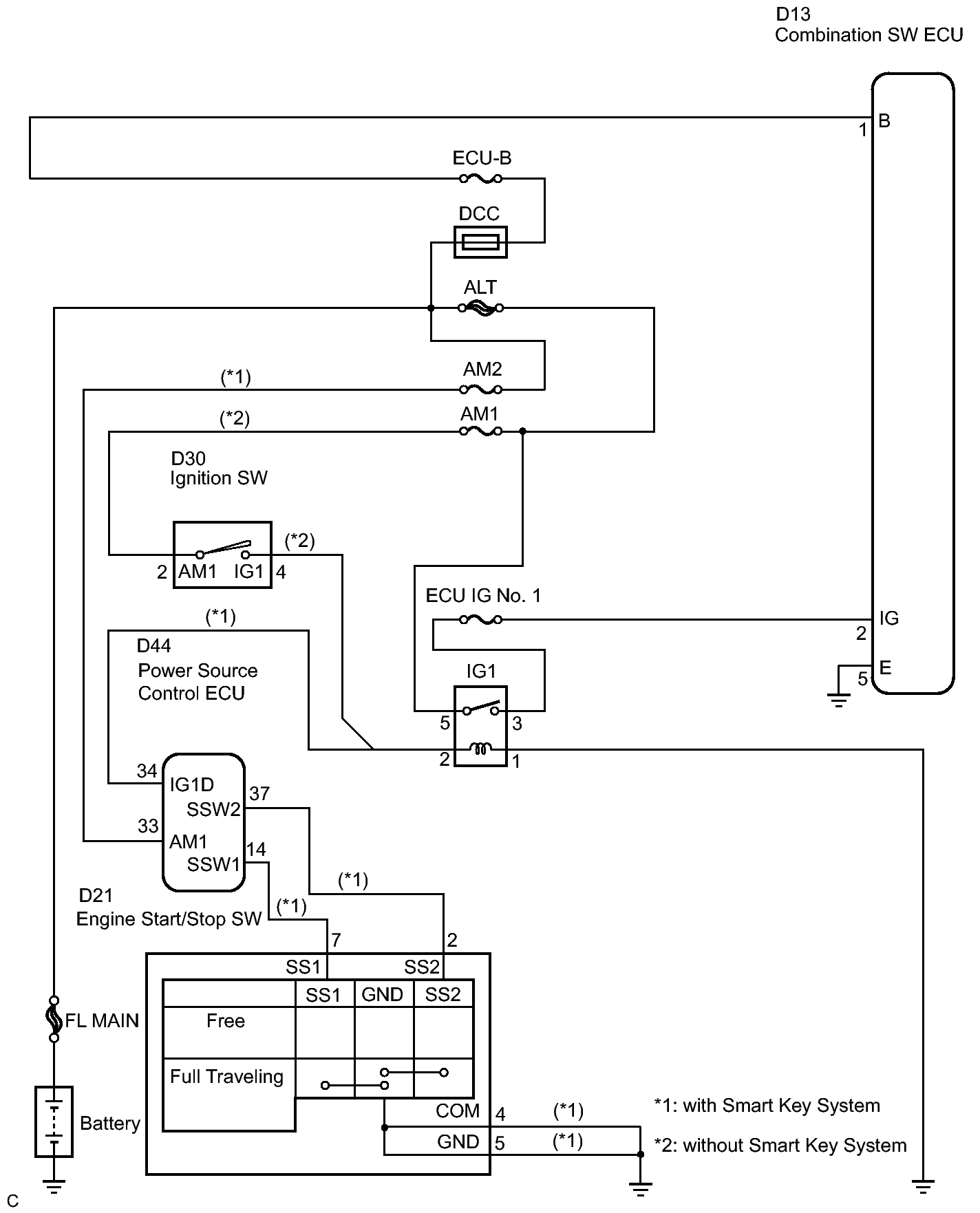

Fig 1: Combination Switch ECU Power Source Circuit - Wiring Diagram

GTY302441

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
