Sound Signal Circuit between Stereo Component Tuner Assembly and Multi-media Interface ECU: Wiring Diagram

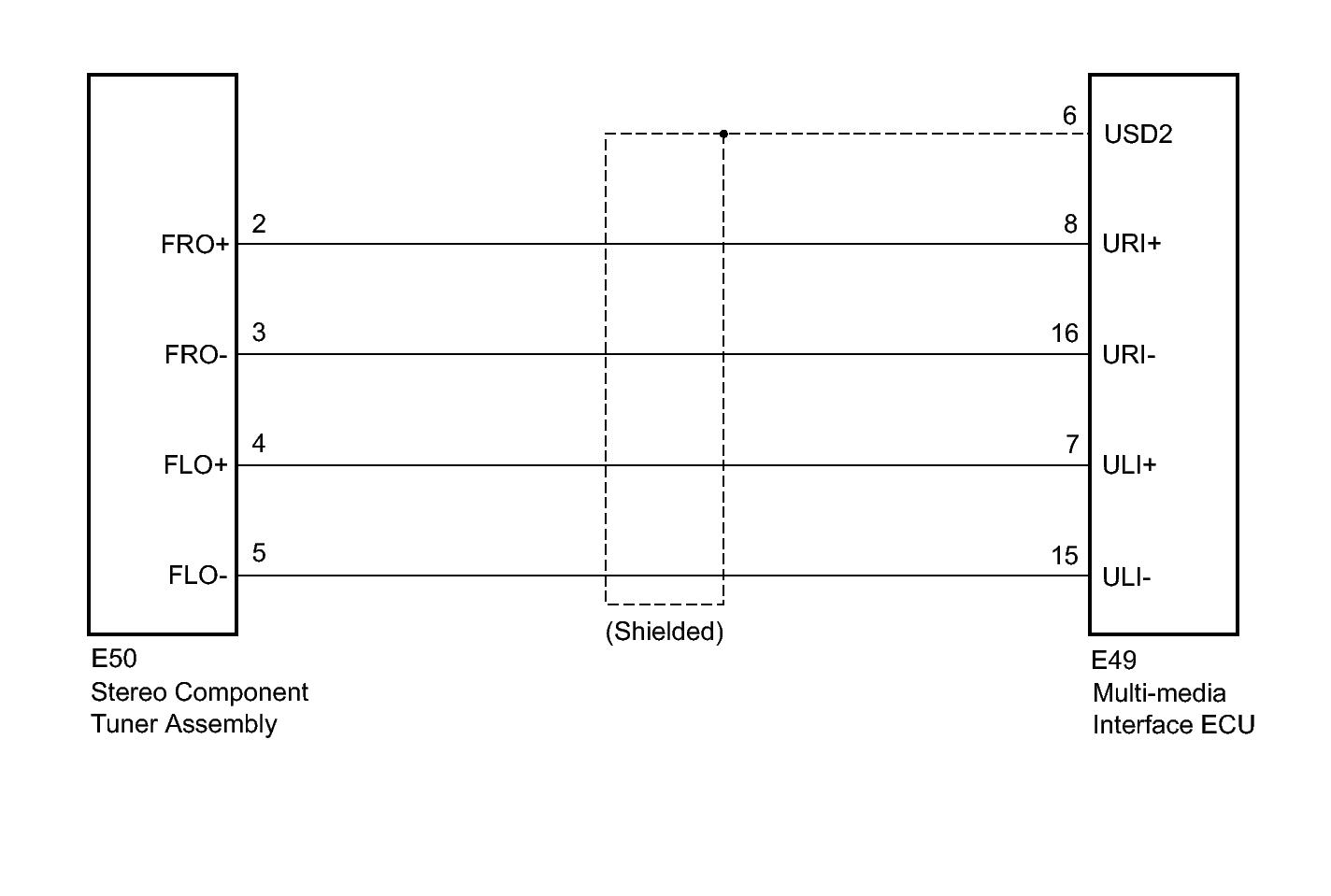

Fig 1: Sound Signal Circuit Between Stereo Component Tuner Assembly And Multi-Media Interface ECU - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
