Downhill Assist Control Switch: Installation: Installation

  1. INSTALL DOWNHILL ASSIST CONTROL SWITCH
    1. Attach the 2 claws to install the downhill assist control switch to the map lamp assembly.

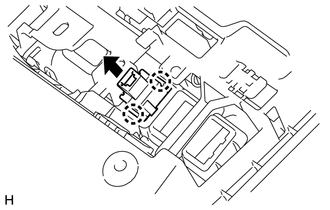

      Fig 1: Identifying Downhill Assist Control Switch
      GTY212910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 connectors.
  2. INSTALL MAP LIGHT ASSEMBLY  See step  2
  3. INSTALL DRIVE MONITOR SWITCH  See step  1
  4. PERFORM DOWNHILL ASSIST CONTROL CALIBRATION
    1. Perform downhill assist control switch calibration. Refer to CALIBRATION .
