Oil Pump: Reassembly: Reassembly

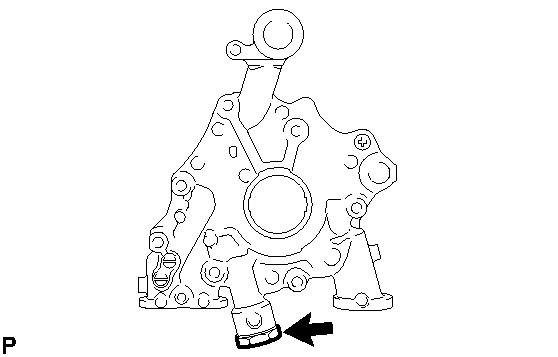

INSTALL OIL PUMP RELIEF VALVE
1. Coat the relief valve with engine oil and insert the relief valve and spring into the valve hole.
2. Install the relief valve plug.
  Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

INSTALL OIL PUMP COVER

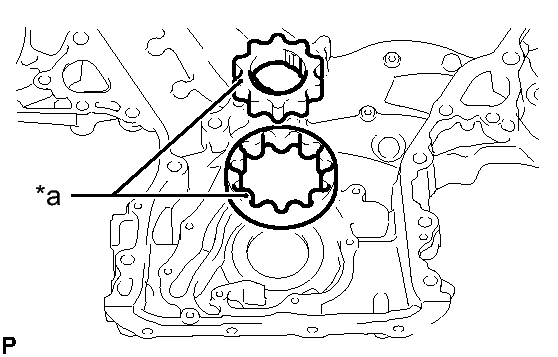

Fig 2: Identifying Matchmarks On Oil Pump Rotor Set

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place the drive and driven rotors into the timing chain cover with the marks facing the oil pump cover side.
TEXT IN ILLUSTRATION

*a Mark

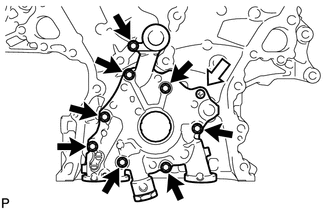

Fig 3: Identifying Oil Pump Cover, Bolts & Screw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the oil pump cover with the 8 bolts and screw.

for screw

Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

for bolt

Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

TEXT IN ILLUSTRATION

	Bolt
	Screw
