Front Airbag Sensor: Removal: Removal

HINT:

• Use the same procedure for the RH and LH sides.
• The procedure listed below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

2. REMOVE FRONT BUMPER COVER
   1. Remove the front bumper cover. Refer to REMOVAL .
3. REMOVE FRONT AIRBAG SENSOR LH
   1. Disconnect the connector.

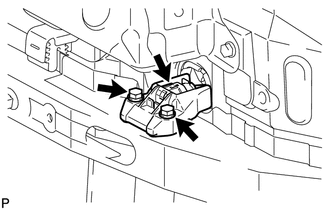

      Fig 1: Identifying Front Airbag Sensor LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 bolts and front airbag sensor.
