On-Vehicle Inspection

  1. INSPECT INTAKE SYSTEM
    1. Check that there is no air suction at the points shown in the illustration.

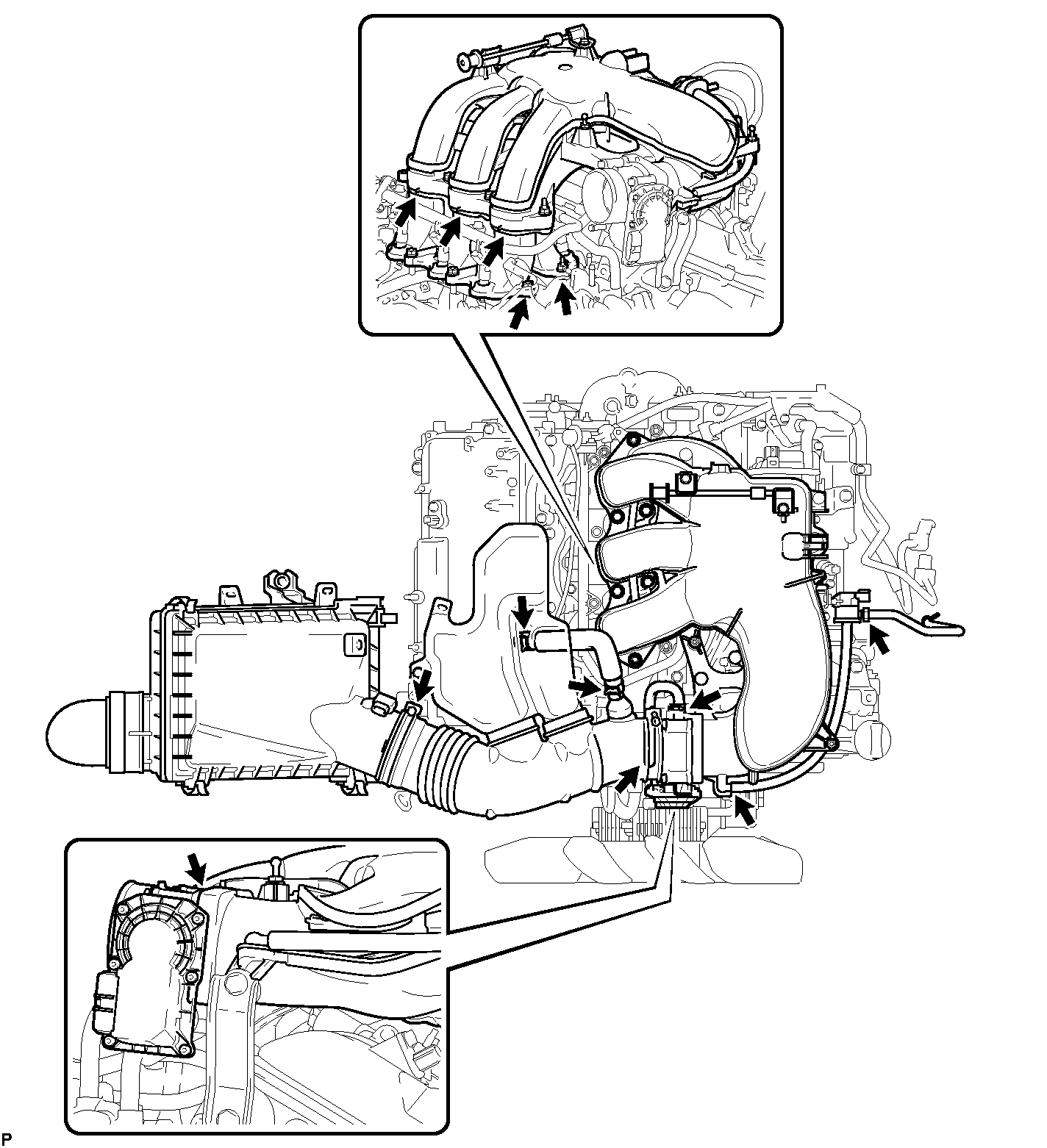

      Fig 1: Identifying Intake System
      GTY235396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
