System Diagram

  1. POWER SOURCE CIRCUIT

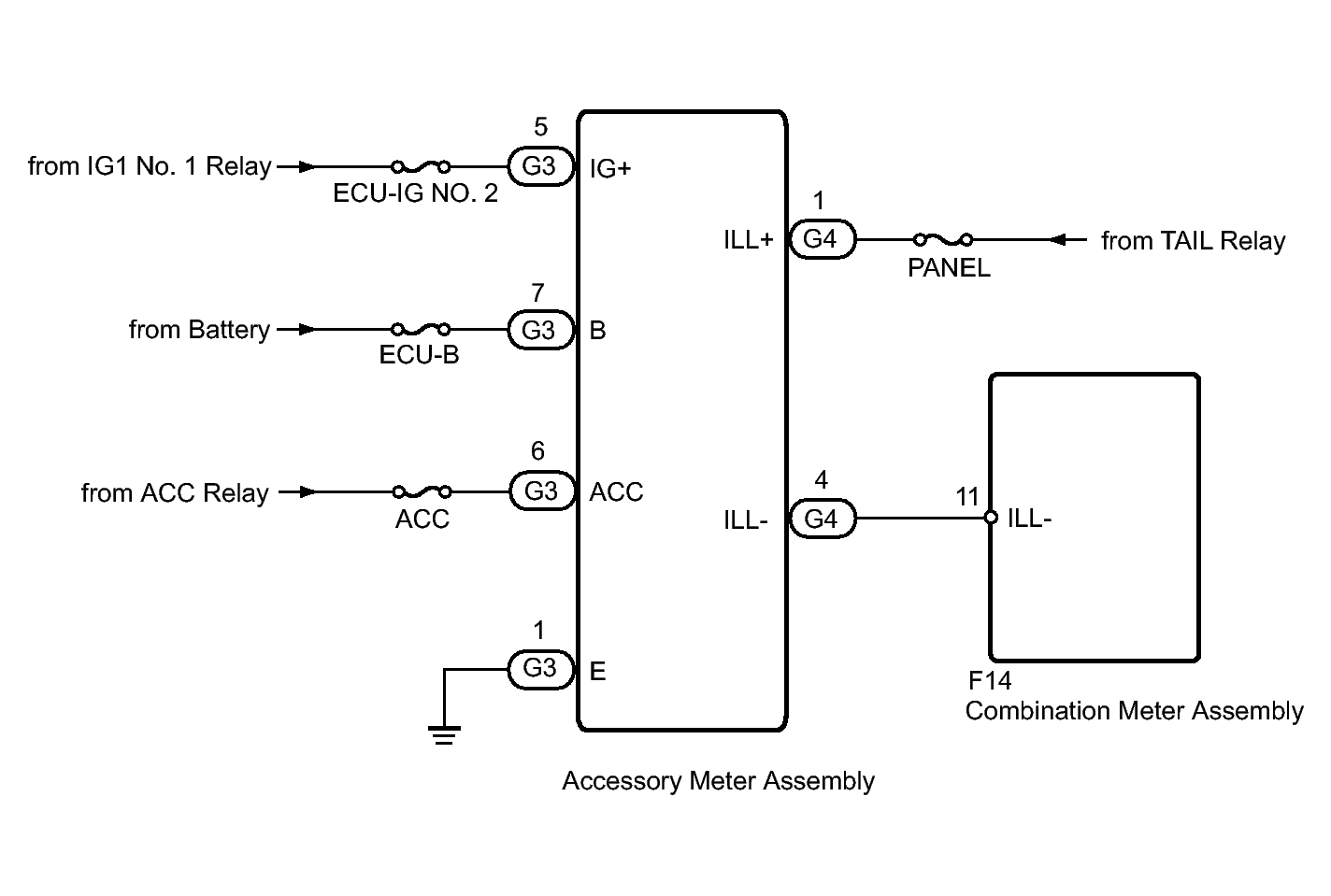

    Fig 1: Identifying Clock System Circuit Diagram
    GTY235235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
