Main Body Ecu: Components: Illustration

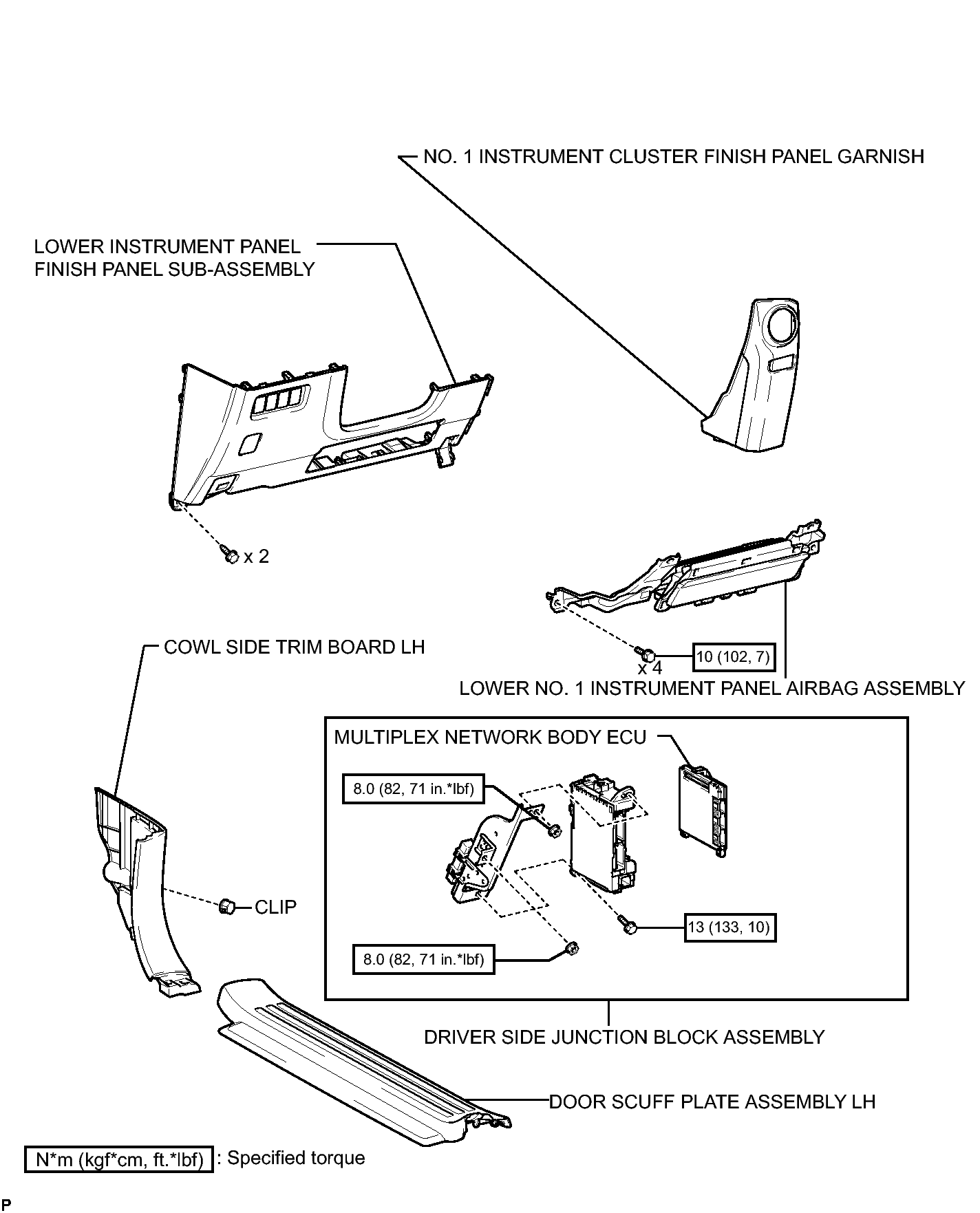

Fig 1: Identifying Main Body ECU Replacement Components With Torque Specifications

GTY222405

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
