Power Seat (Driver's Seat): Notes

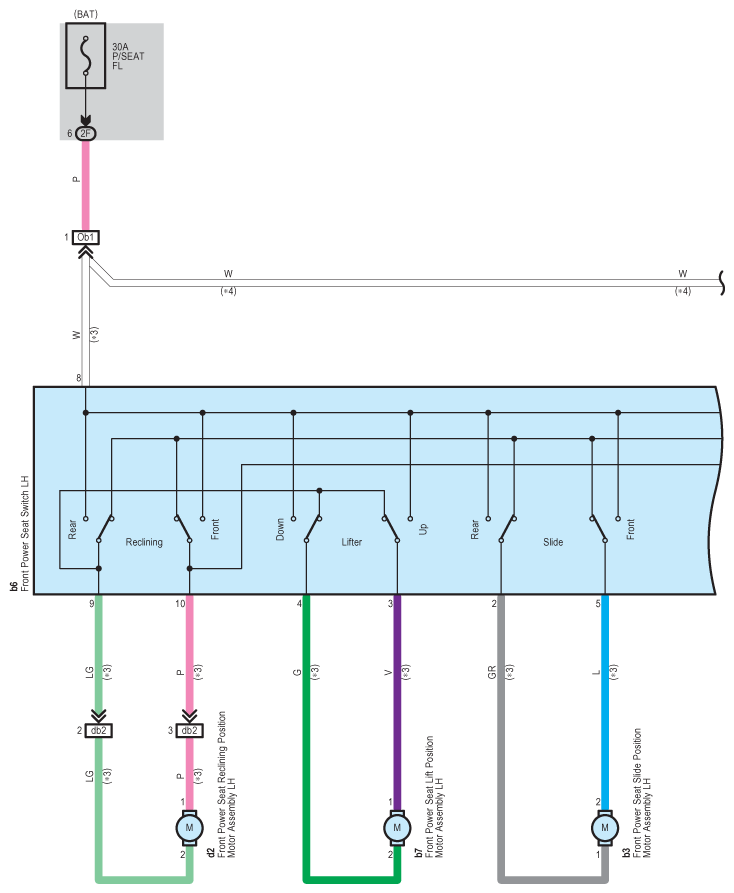

Fig 1: Driver's Power Seat System Wiring Diagram (1 Of 3)
G08792407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Driver's Power Seat System Wiring Diagram (2 Of 3)
G08792408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

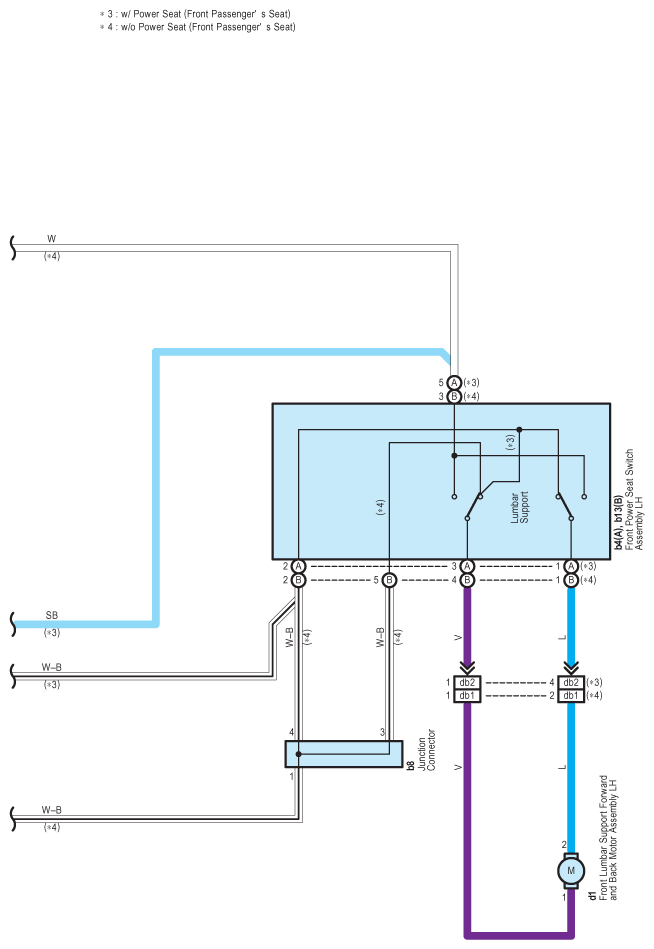

Fig 3: Driver's Power Seat System Wiring Diagram (3 Of 3)
G08792409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
