Ignition Switch: Inspection: Inspection

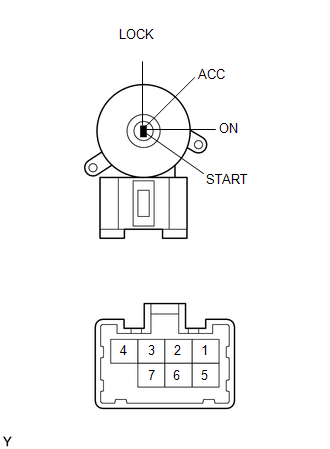

- INSPECT IGNITION OR STARTER SWITCH ASSEMBLY
- Check the resistance.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Using an ohmmeter, measure the resistance between the terminals.
Standard resistance
| Condition |
Tester Connection |
Standard |
| LOCK |
Between all terminals |
10 kΩ or higher |
| ACC |
2-4 |
Below 1 Ω |
| ON |
1-2-4 |
Below 1 Ω |
| 5-6 |
| START |
1-3-4 |
Below 1 Ω |
| 5-6-7 |
