Charging System (Service Information): Generator: Components: Illustration

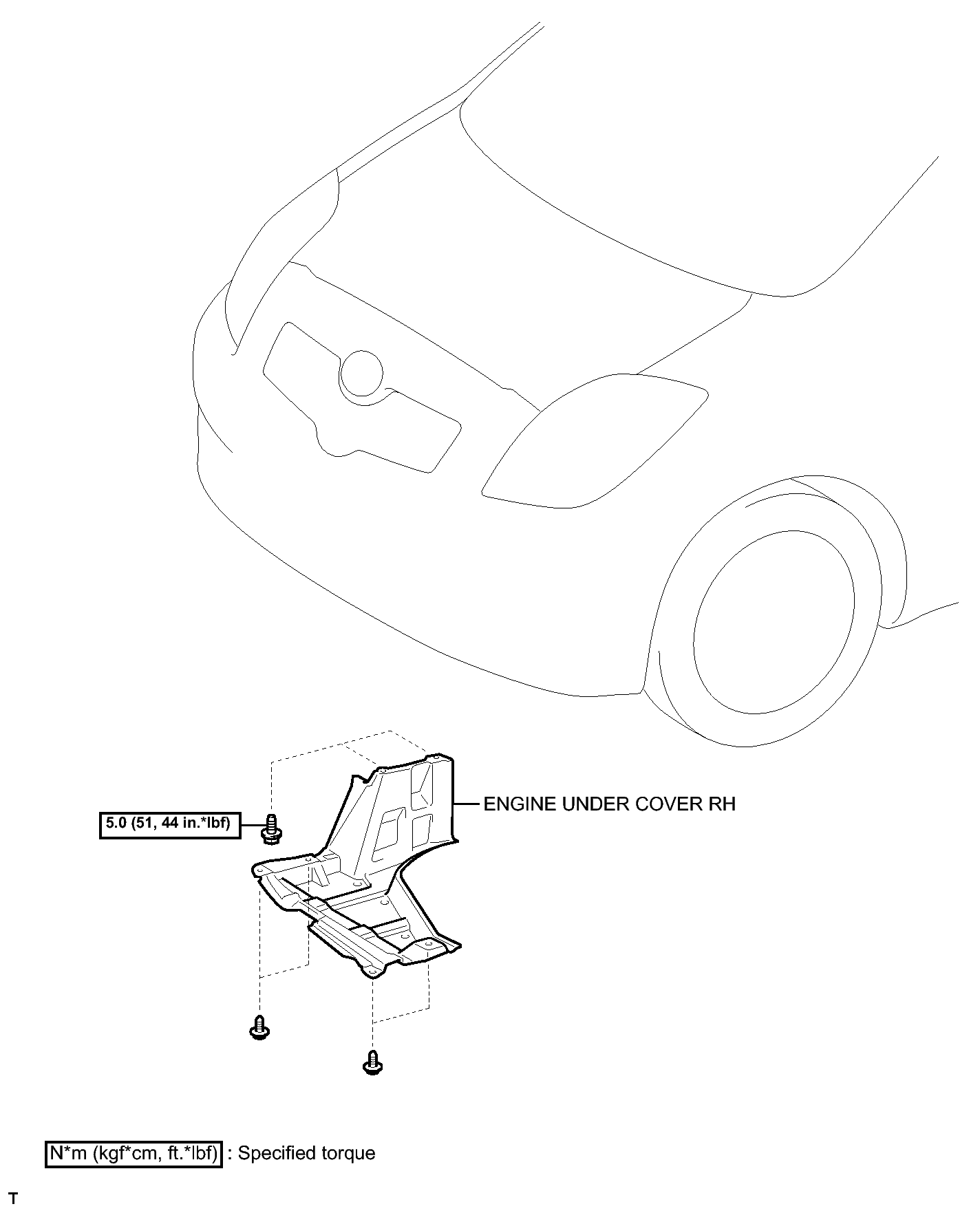

Fig 1: Generator Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

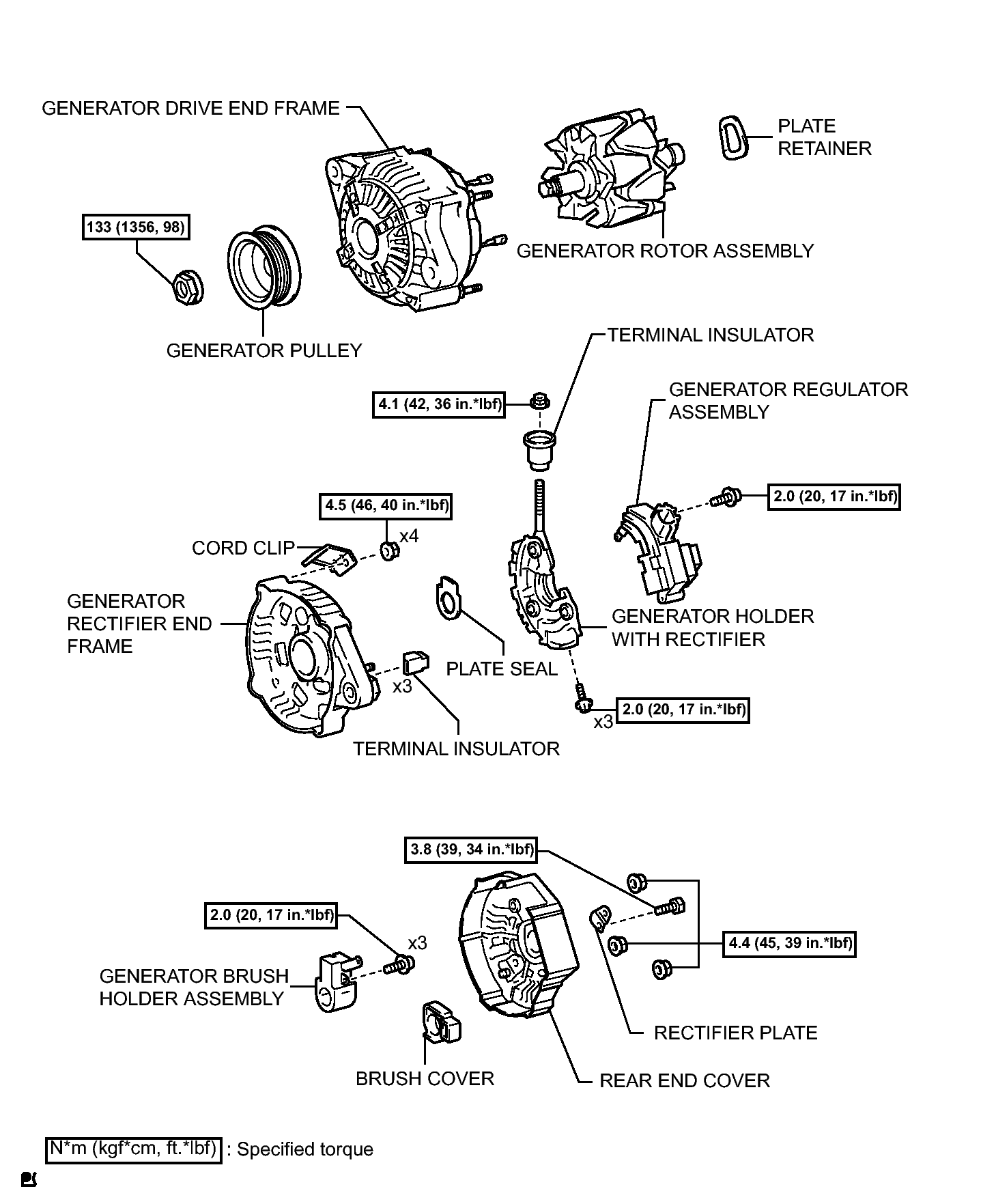

Fig 1: Generator Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

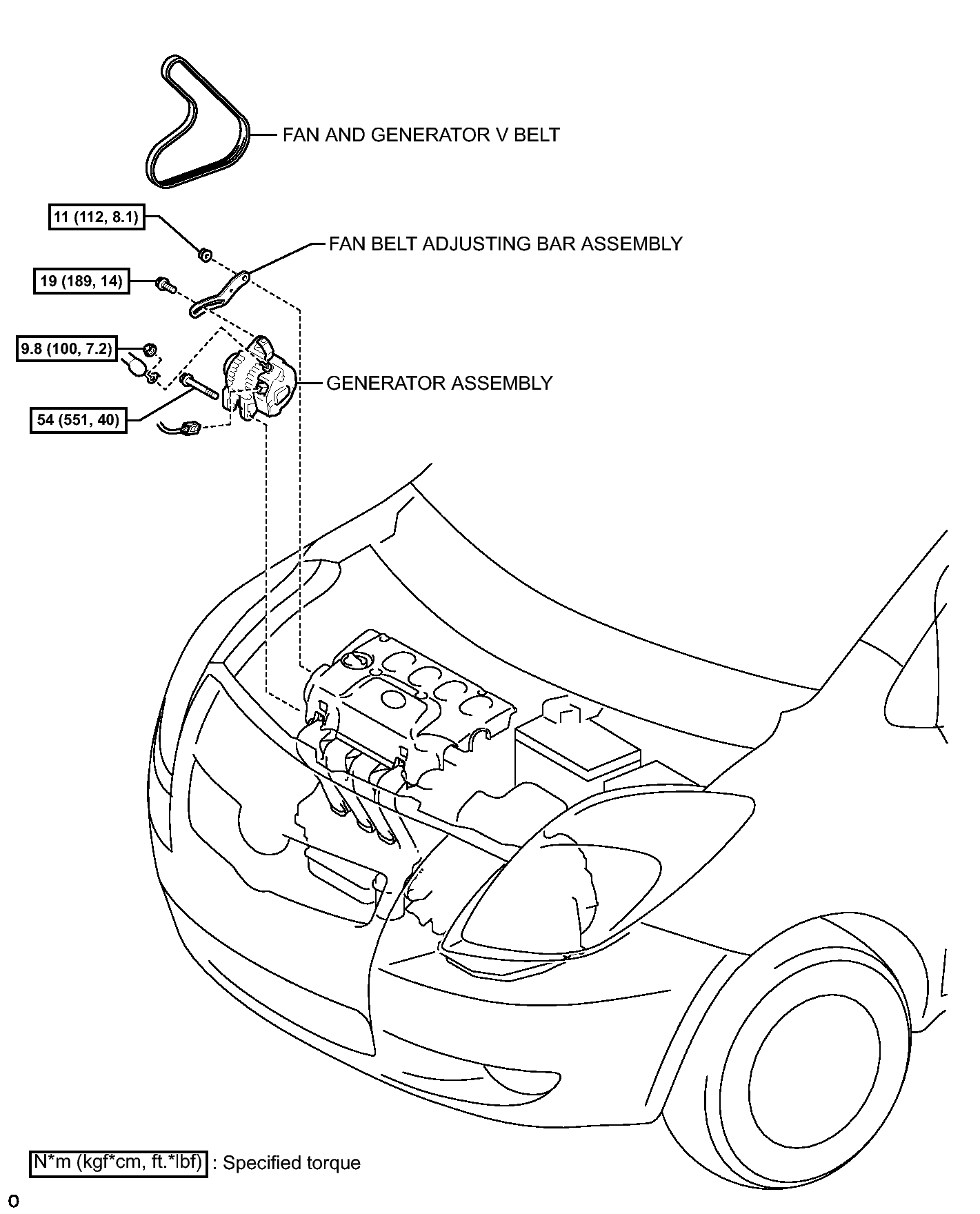

Fig 1: Exploded View Of Generator Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
