Remote Control Mirror: Notes

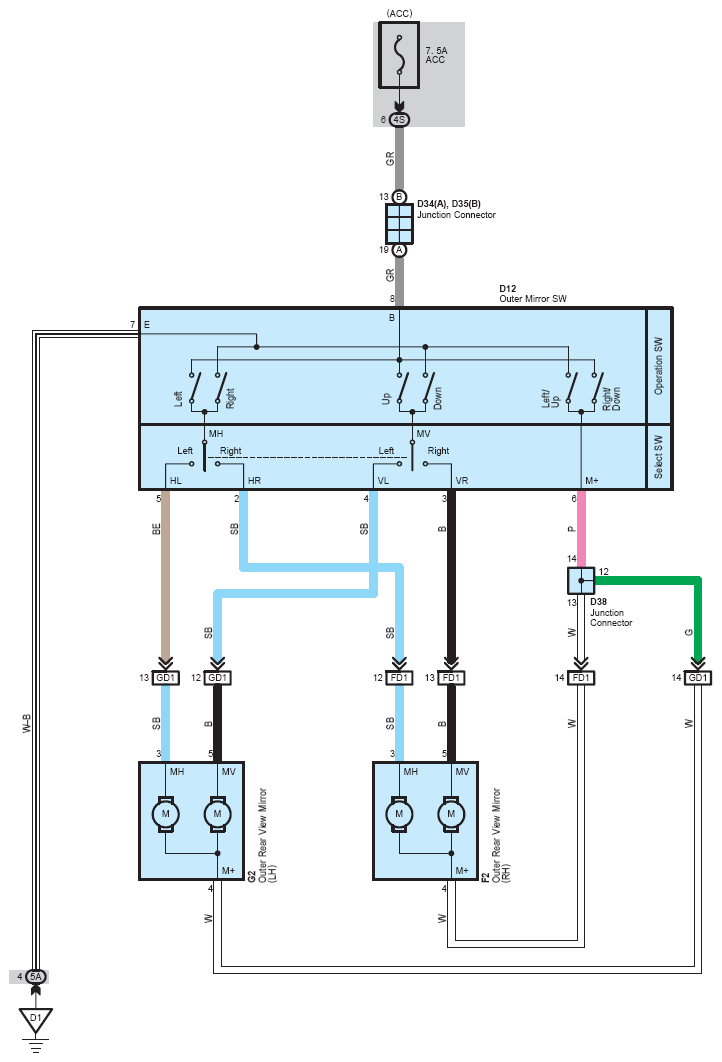

Fig 1: Remote Control Mirror System Wiring Diagram

G07124540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
