Engine Immobiliser System: Notes

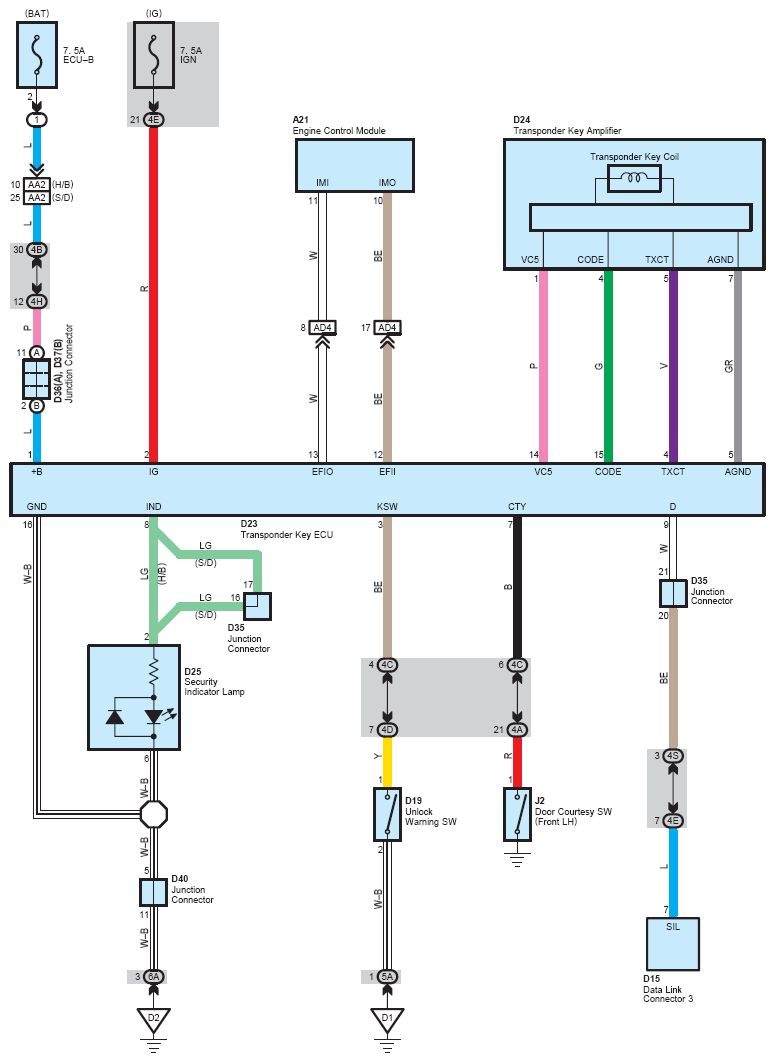

Fig 1: Engine Immobiliser System Wiring Diagram

G07124467

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
