Data Link Connector 3: Notes

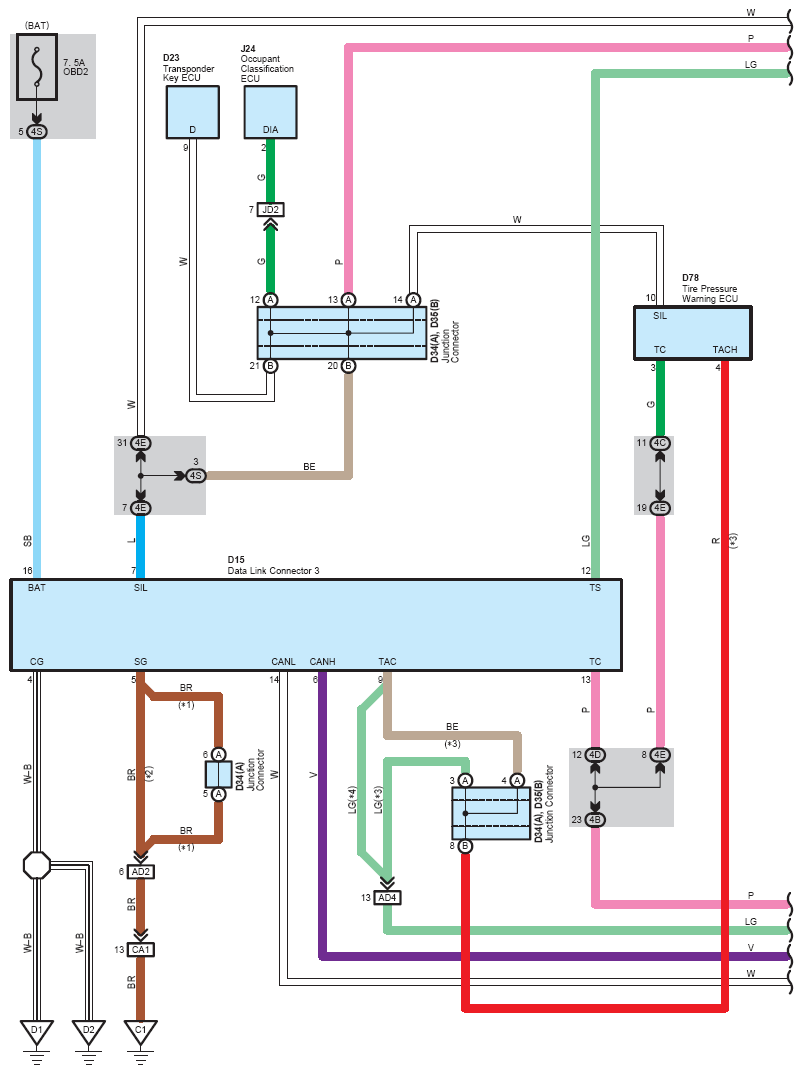

Fig 1: Data Link Connector 3 Wiring Diagram (1 Of 3)
G07124468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

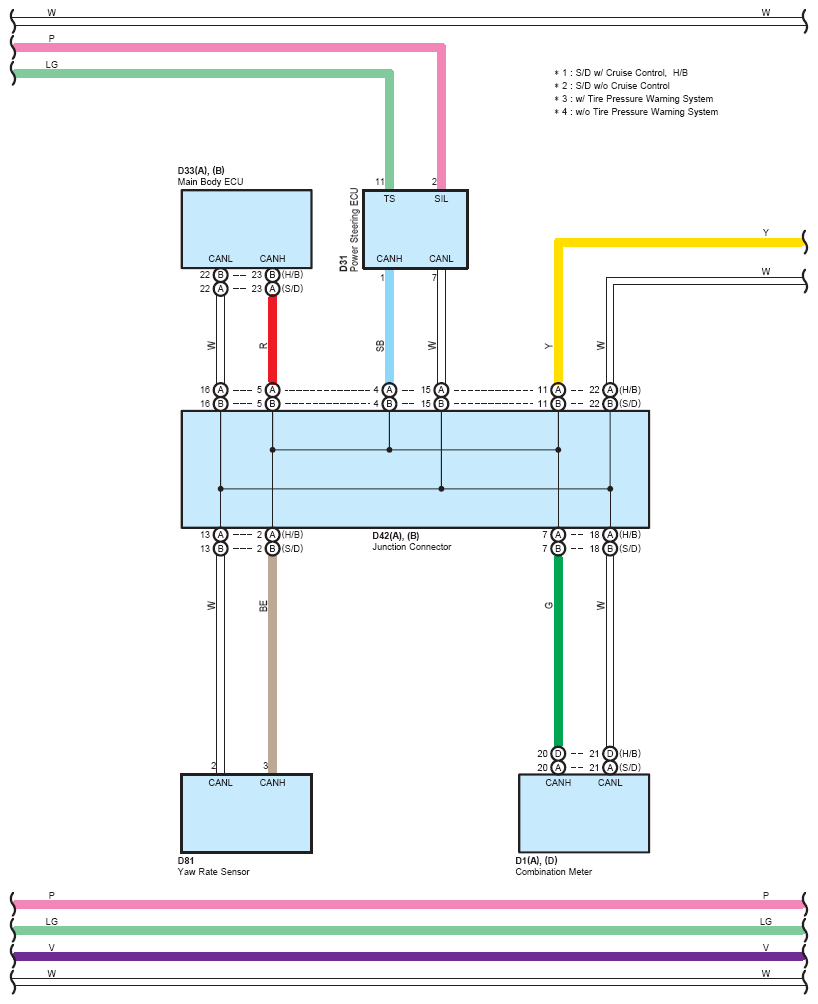

Fig 2: Data Link Connector 3 Wiring Diagram (2 Of 3)
G07124469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

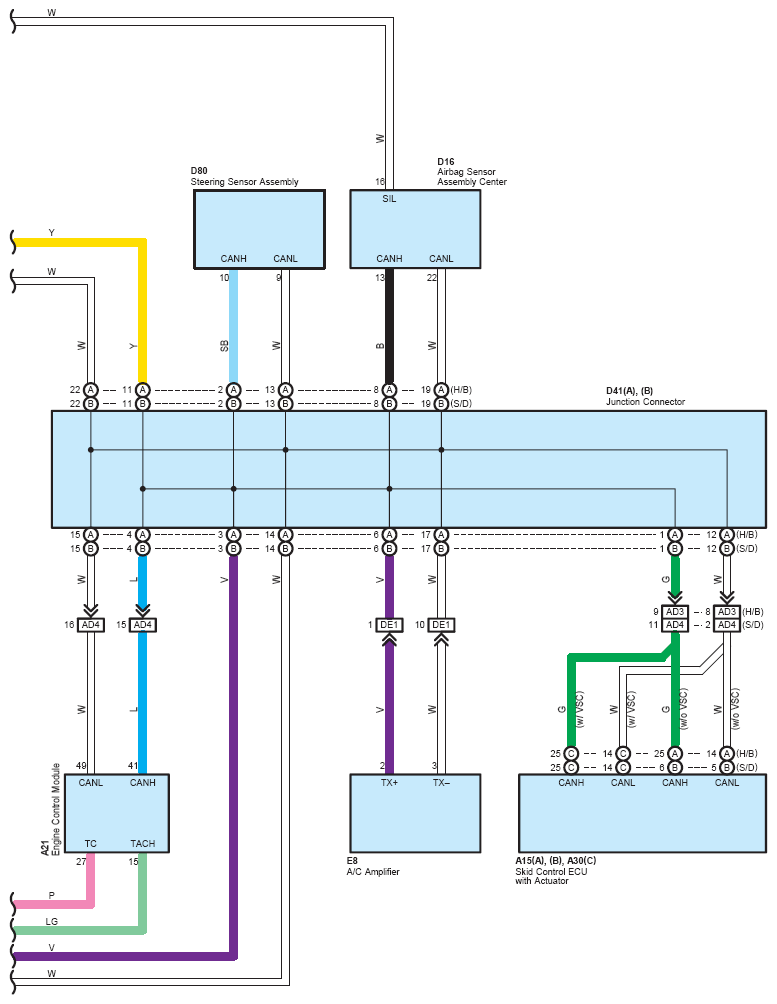

Fig 3: Data Link Connector 3 Wiring Diagram (3 Of 3)
G07124470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
