Yaw Rate And Acceleration Sensor: Components: Illustration

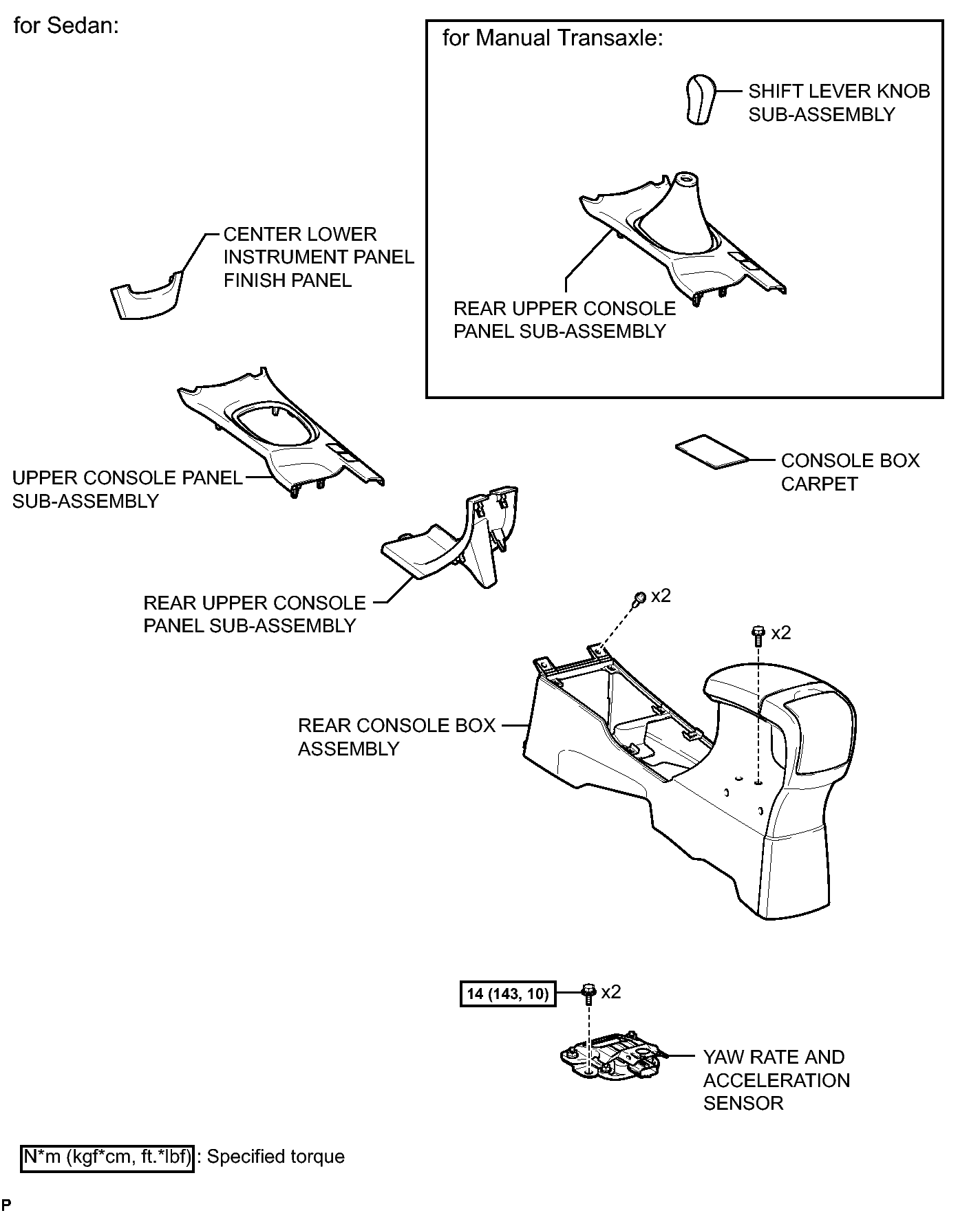

Fig 1: Yaw Rate And Acceleration Sensor (Sedan) Replacement Components With Torque Specifications
GTY217614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

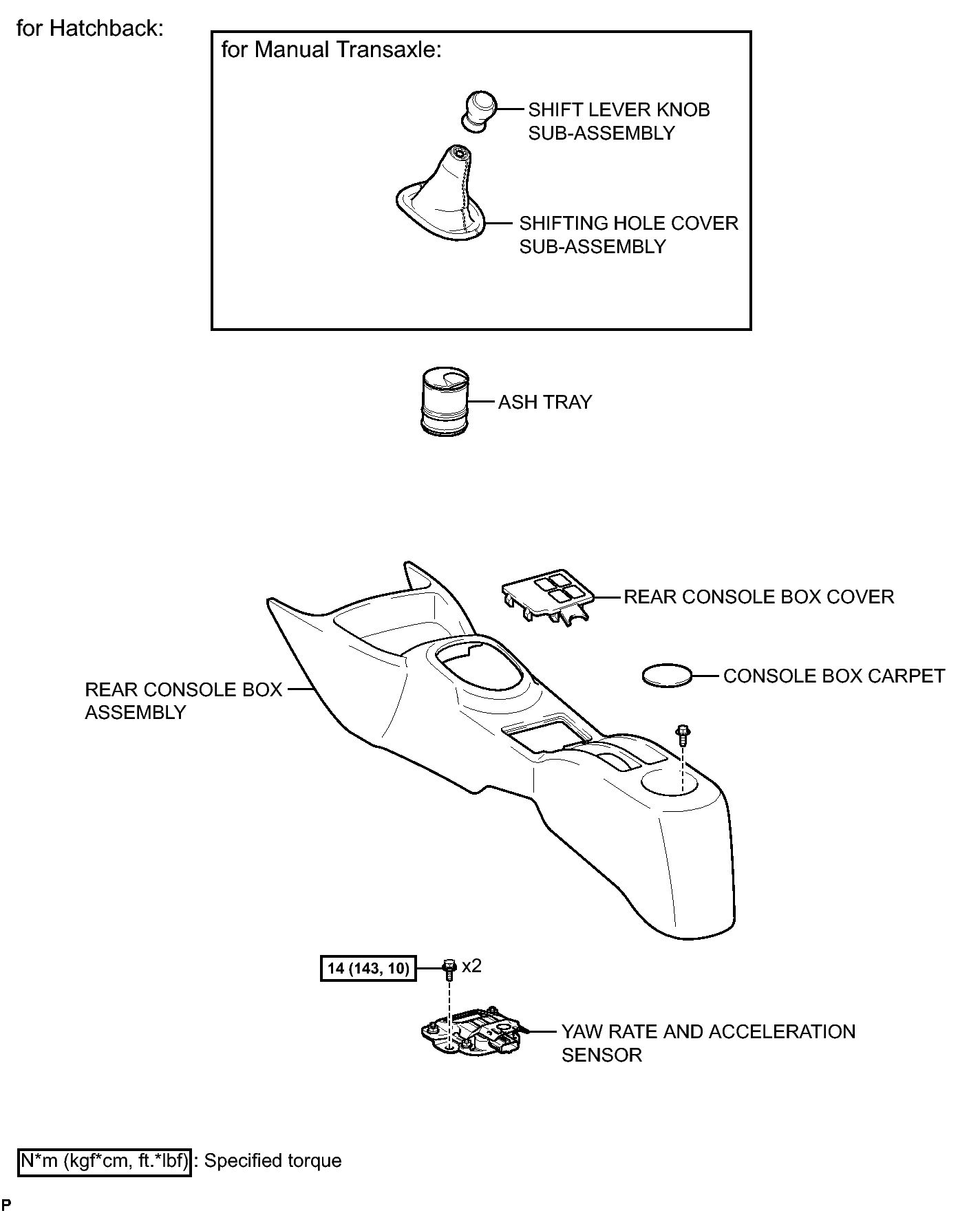

Fig 1: Yaw Rate And Acceleration Sensor (Hatchback) Replacement Components With Torque Specifications
GTY224299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
