VSC Off Switch: Components: Illustration

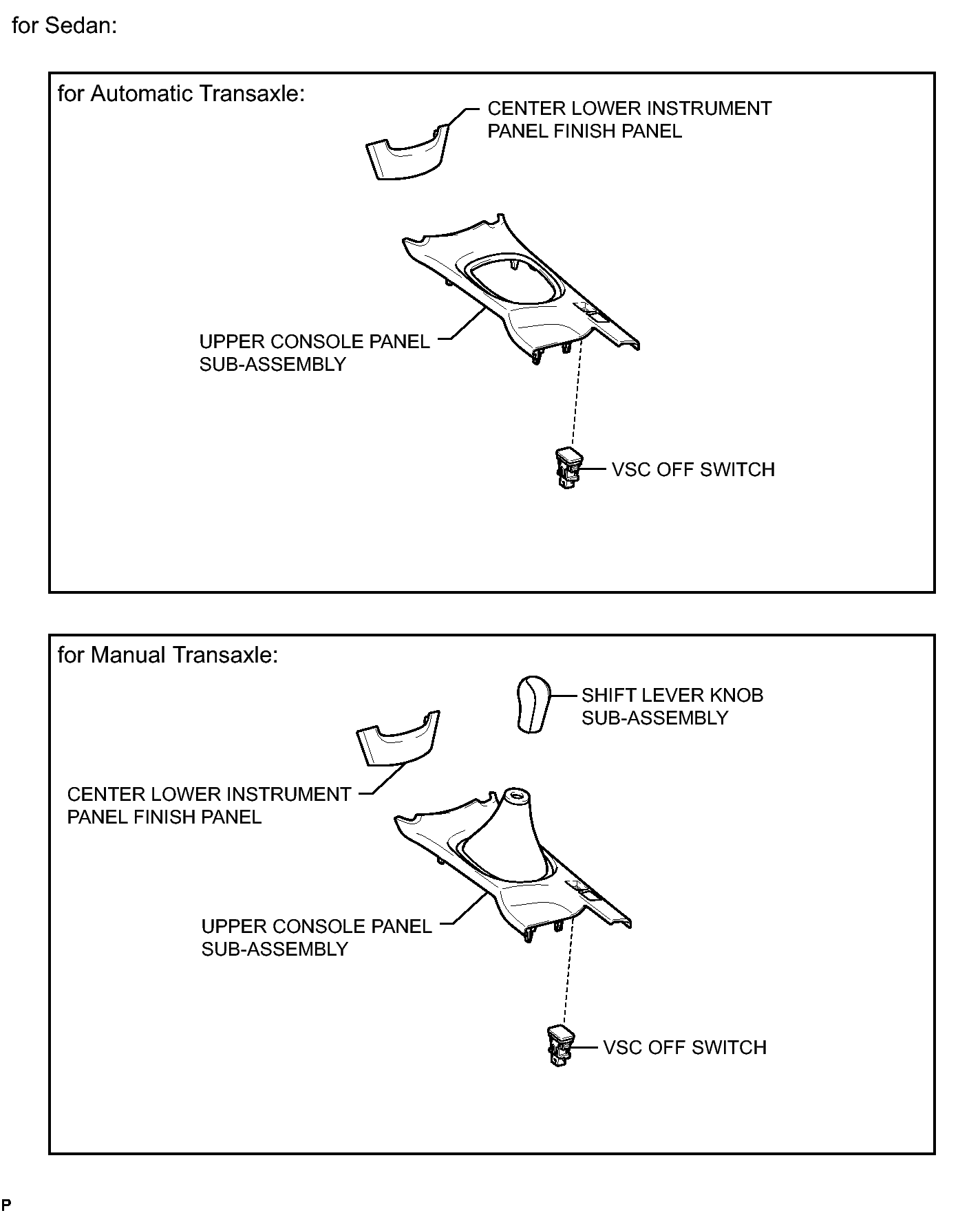

Fig 1: Identifying VSC Off Switch (Sedan) Replacement Components
GTY229274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

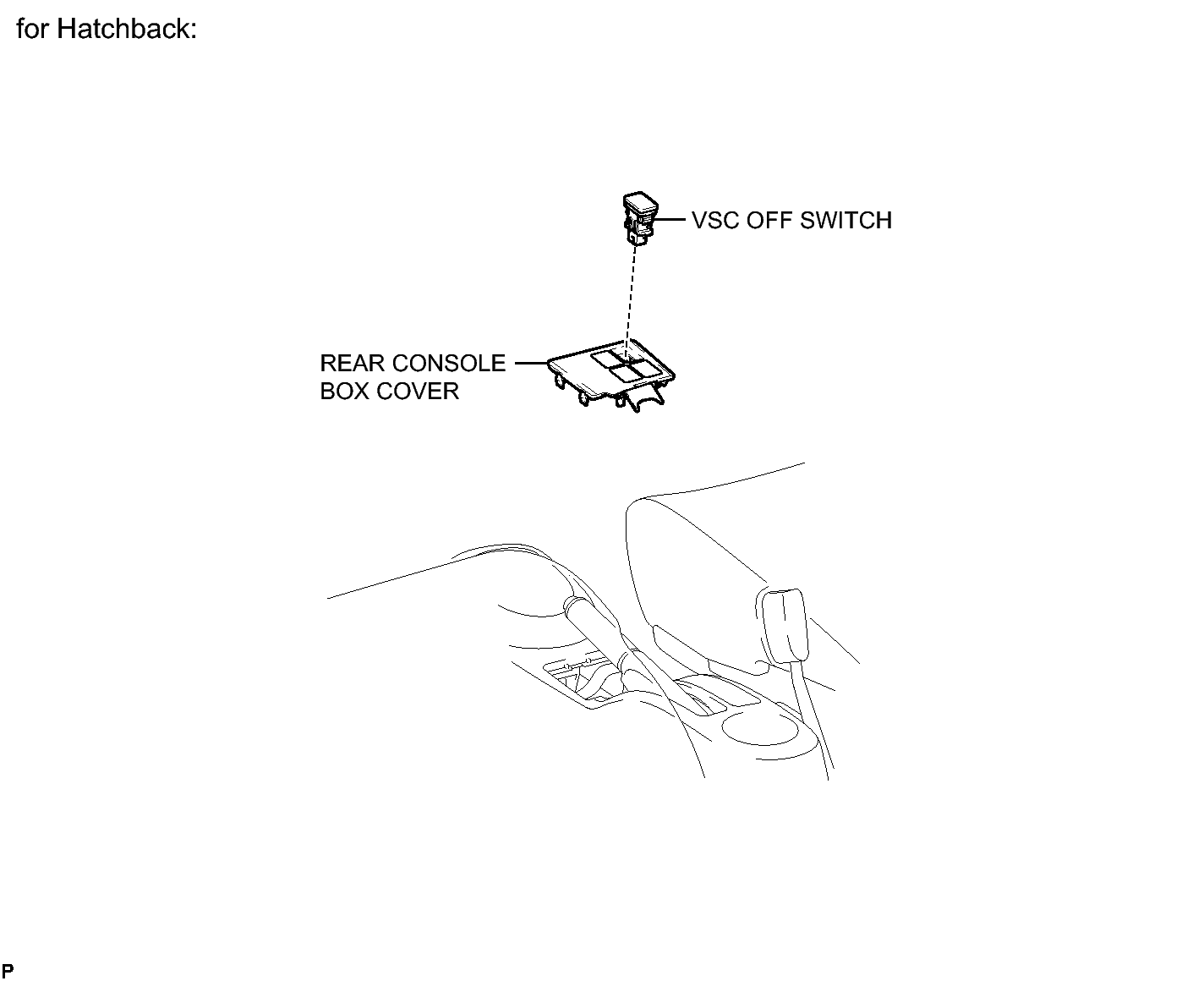

Fig 1: Identifying VSC Off Switch (Hatchback) Replacement Components
GTY215982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
