Steering Angle Sensor: Components: Illustration

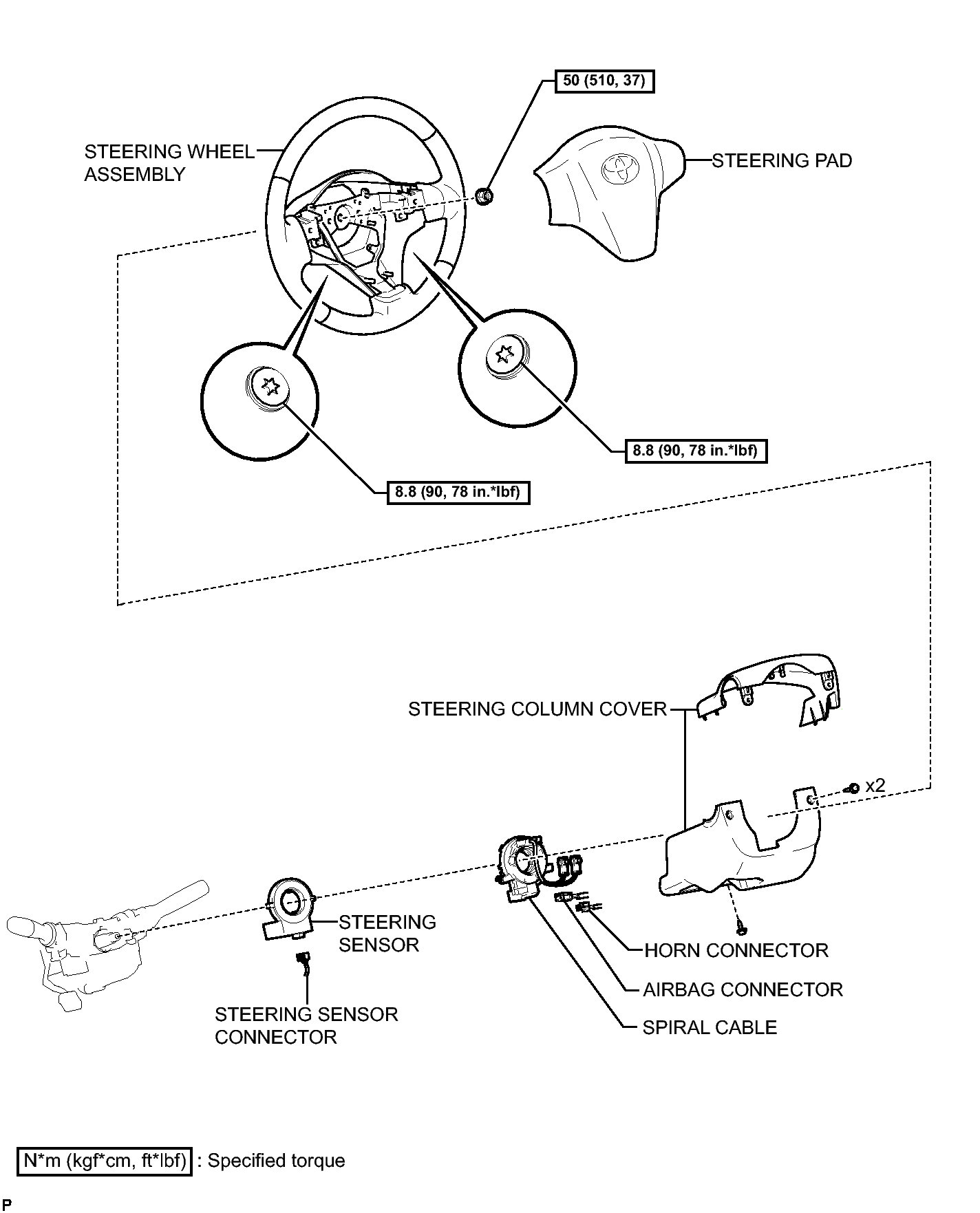

Fig 1: Steering Angle Sensor Replacement Components With Torque Specifications

GTY219889

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
