Home >> Toyota >> 2011 >> Yaris 2D Hatchback, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System (Service Information) >> Rear Speed Sensor >> Components >> Illustration

Rear Speed Sensor: Components: Illustration

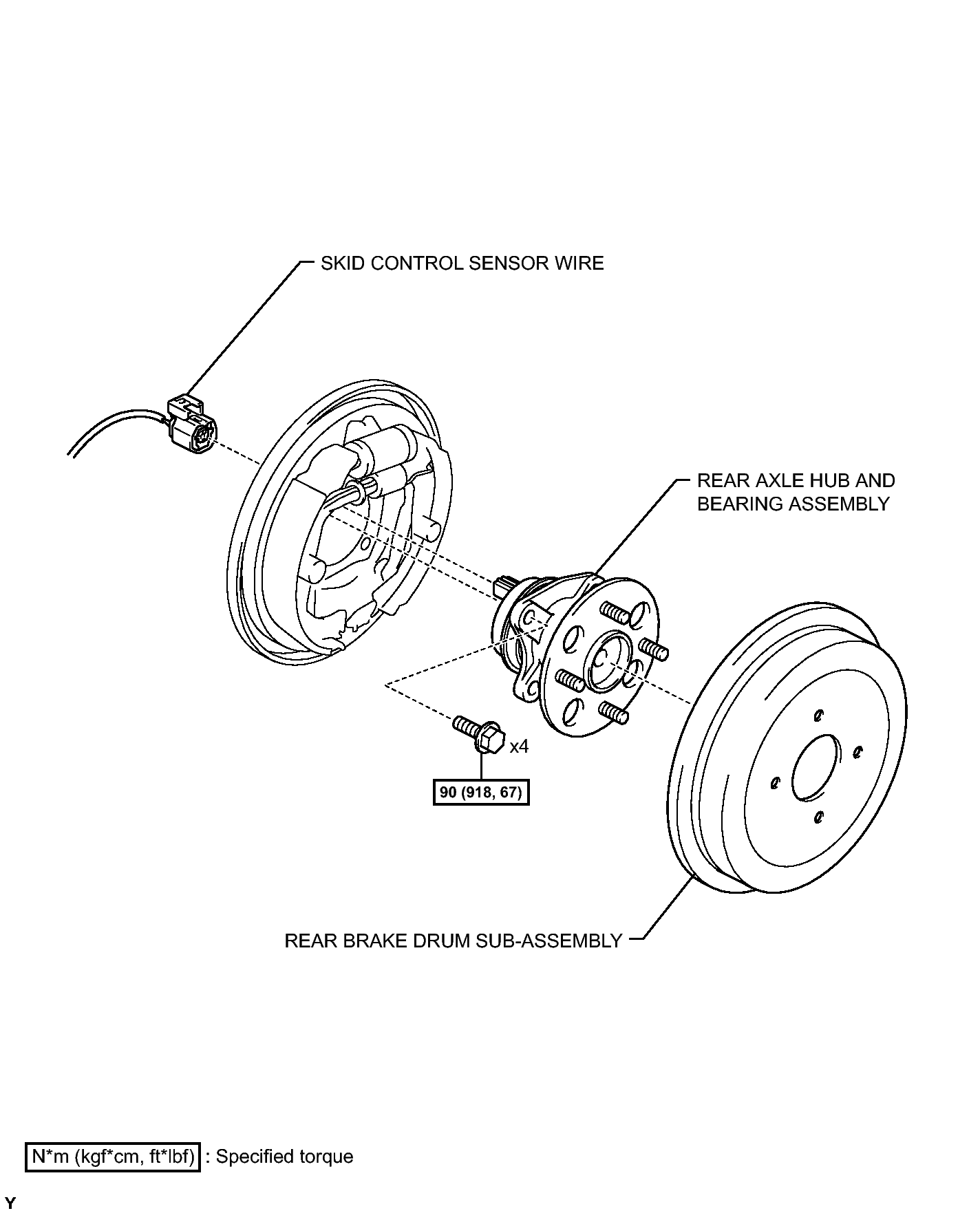

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications

GTY237978

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
