Front Speed Sensor: Components: Illustration

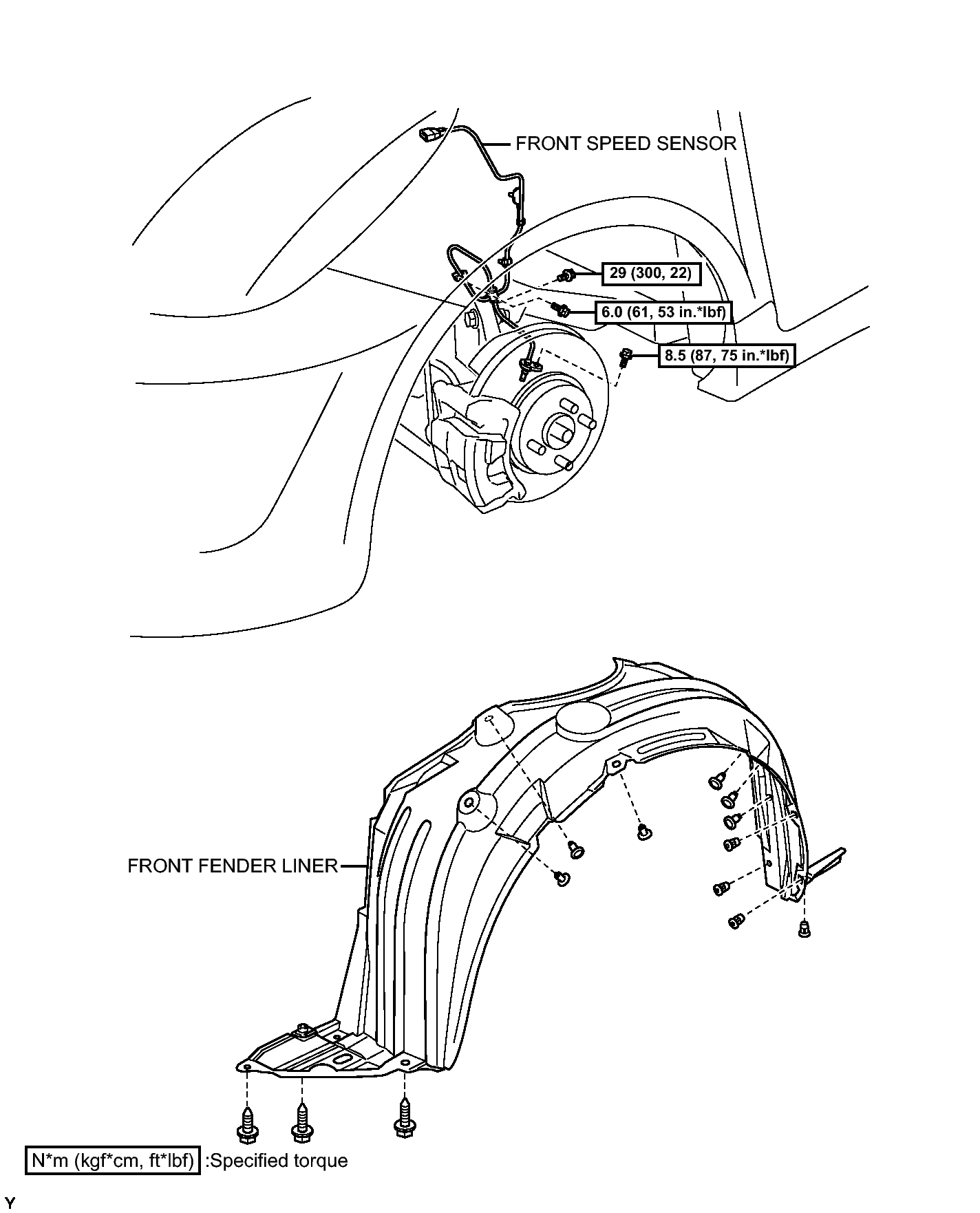

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications

GTY243318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
