System Diagram

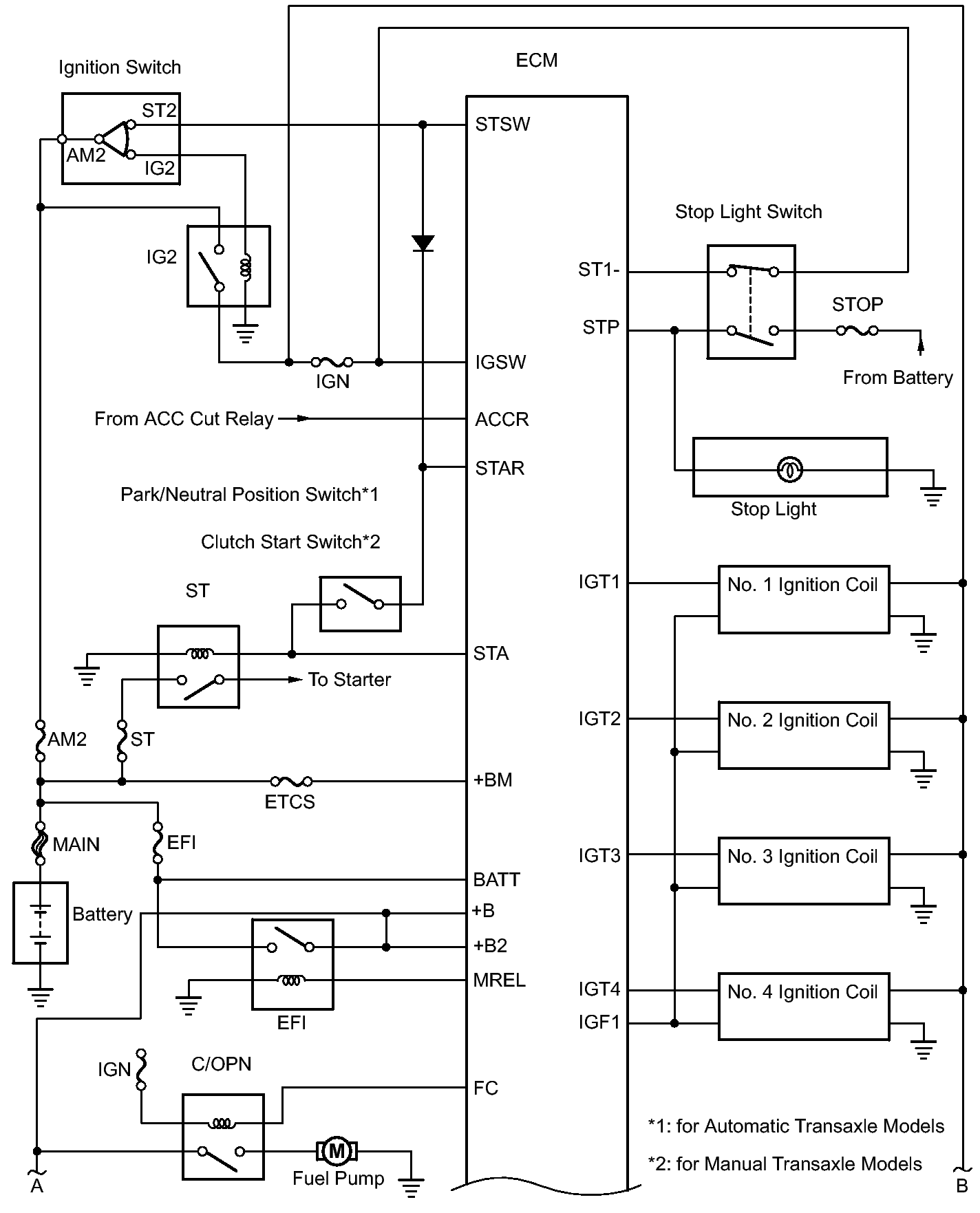

Fig 1: Engine Control System Wiring Diagram (1 Of 3)
GTY291915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

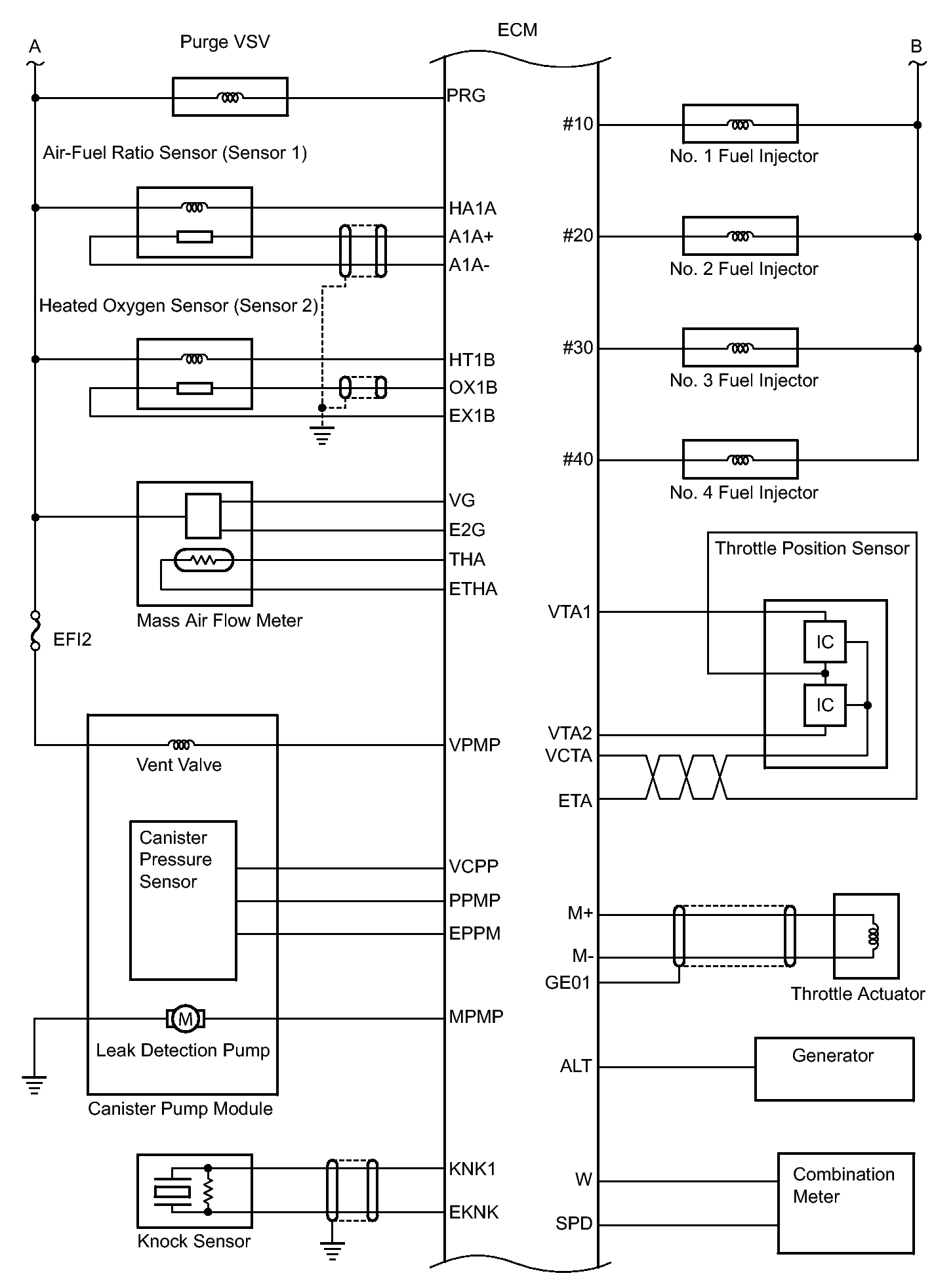

Fig 2: Engine Control System Wiring Diagram (2 Of 3)
GTY291192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

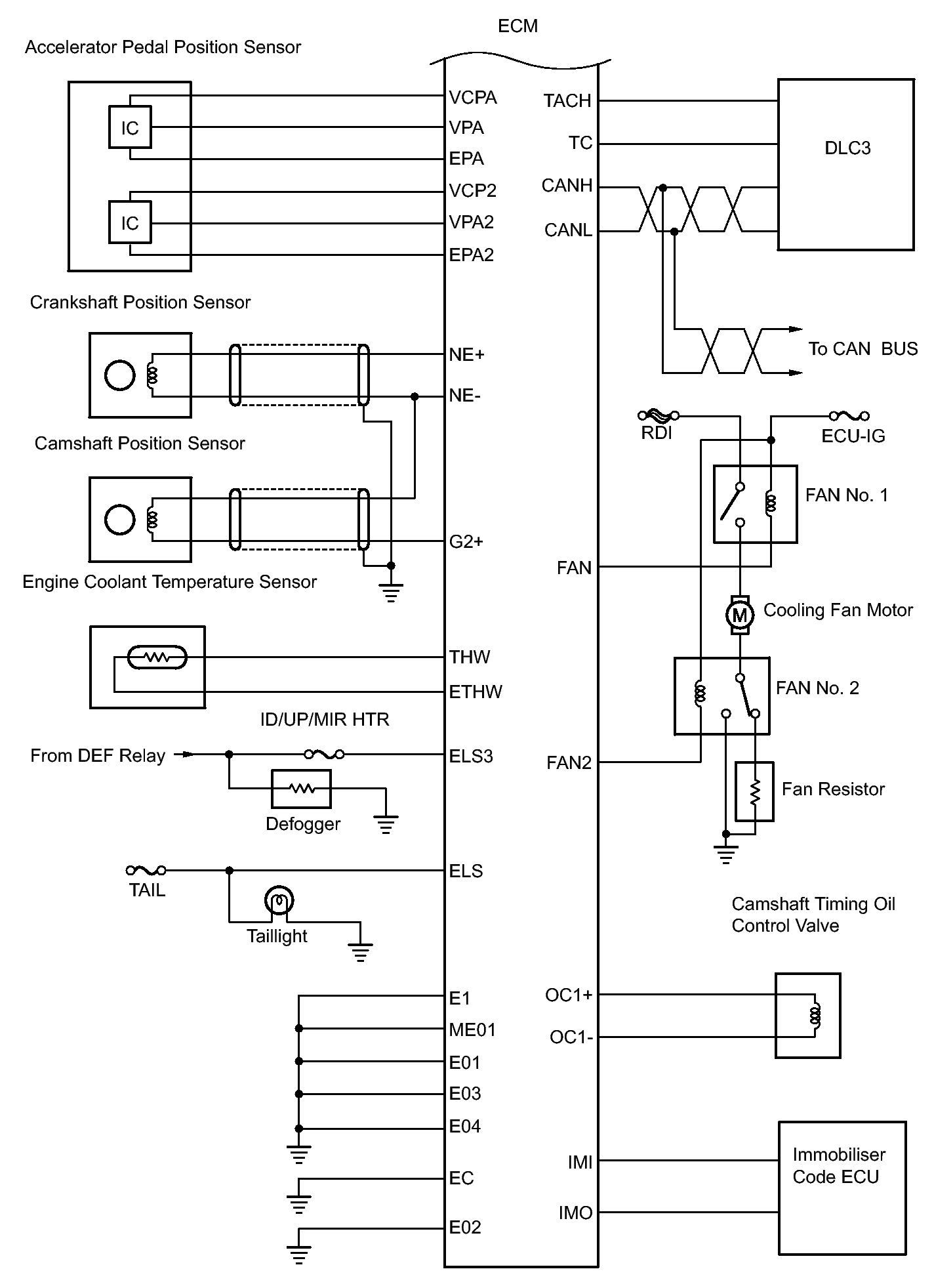

Fig 3: Engine Control System Wiring Diagram (3 Of 3)
GTY235057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
