Smart Key System: Notes

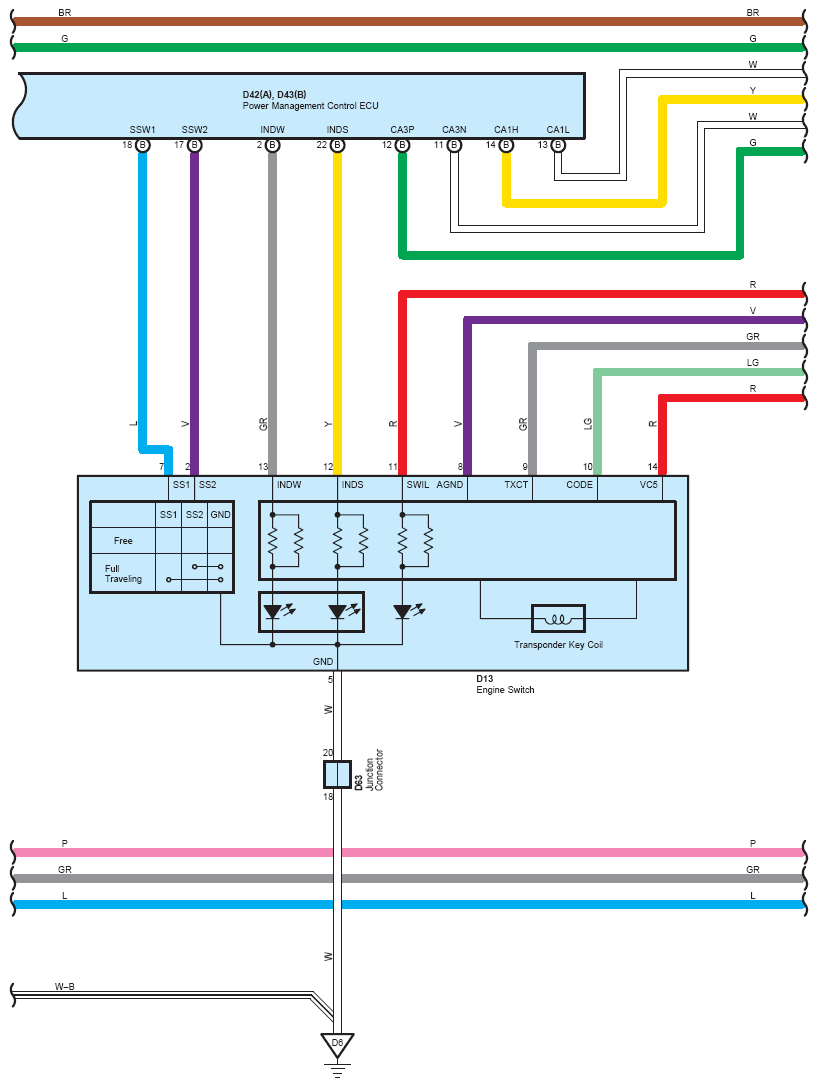

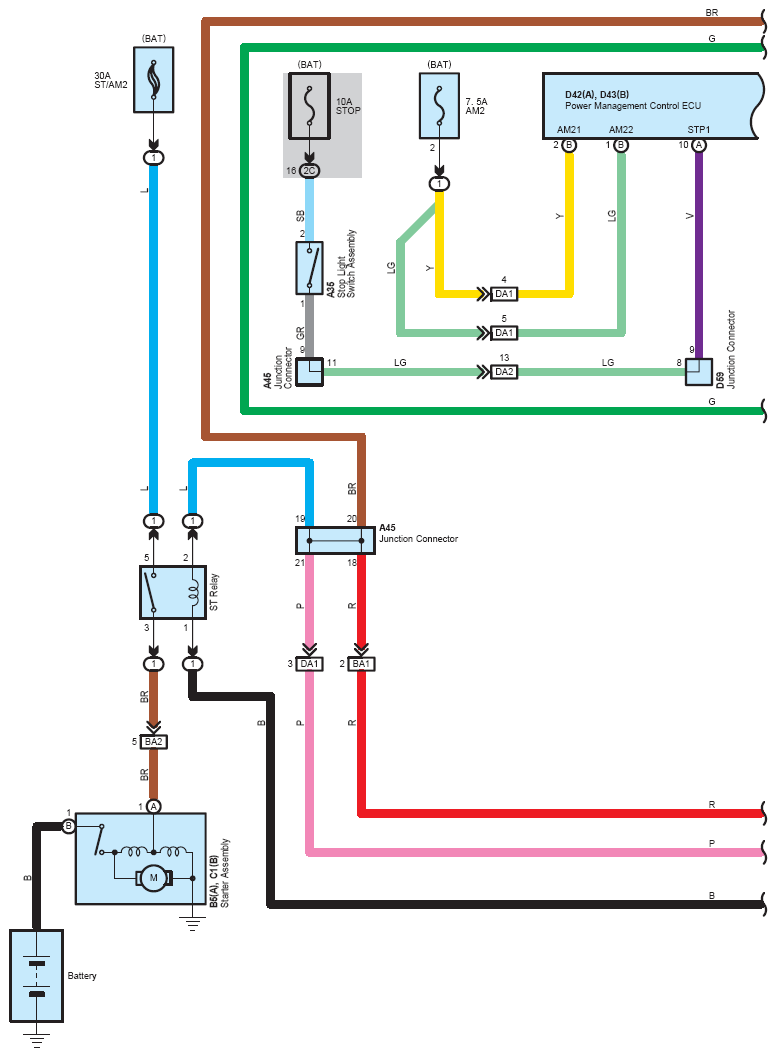

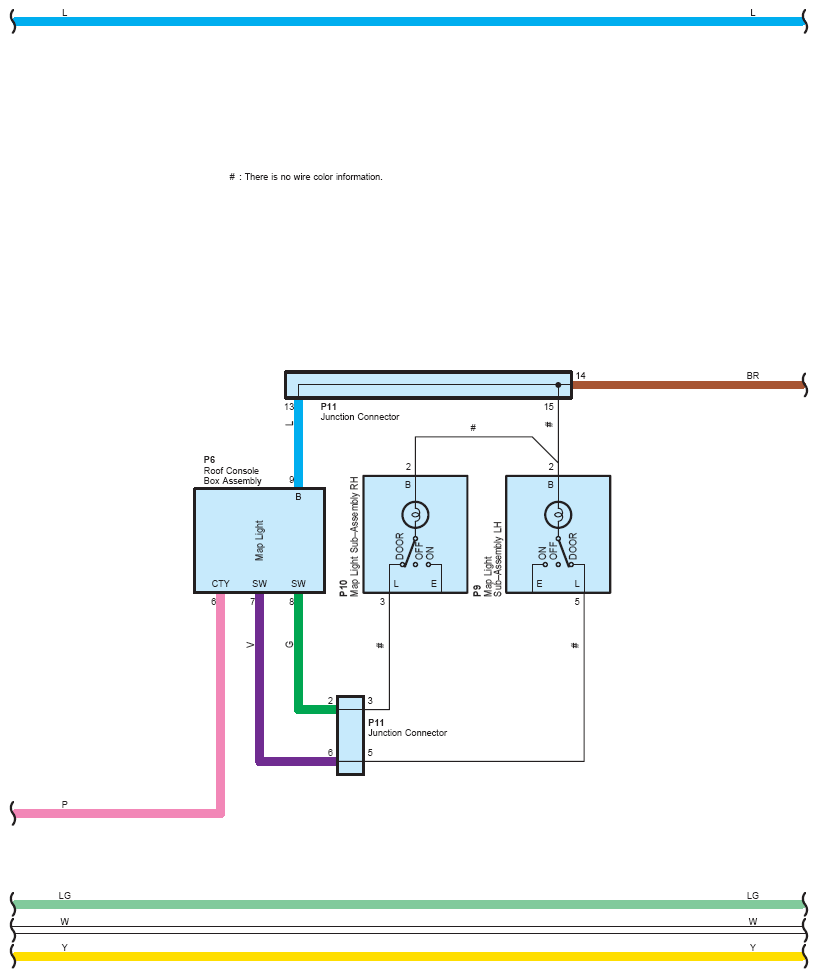

Fig 1: Smart Key System Wiring Diagram (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

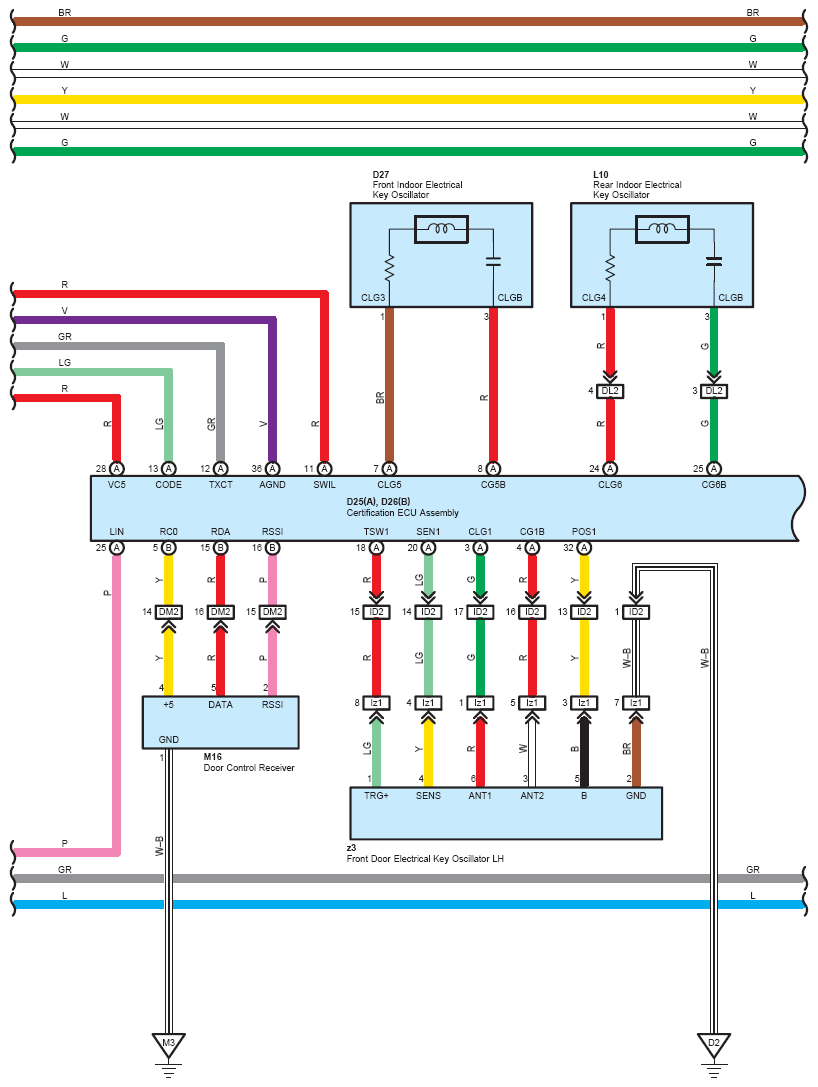

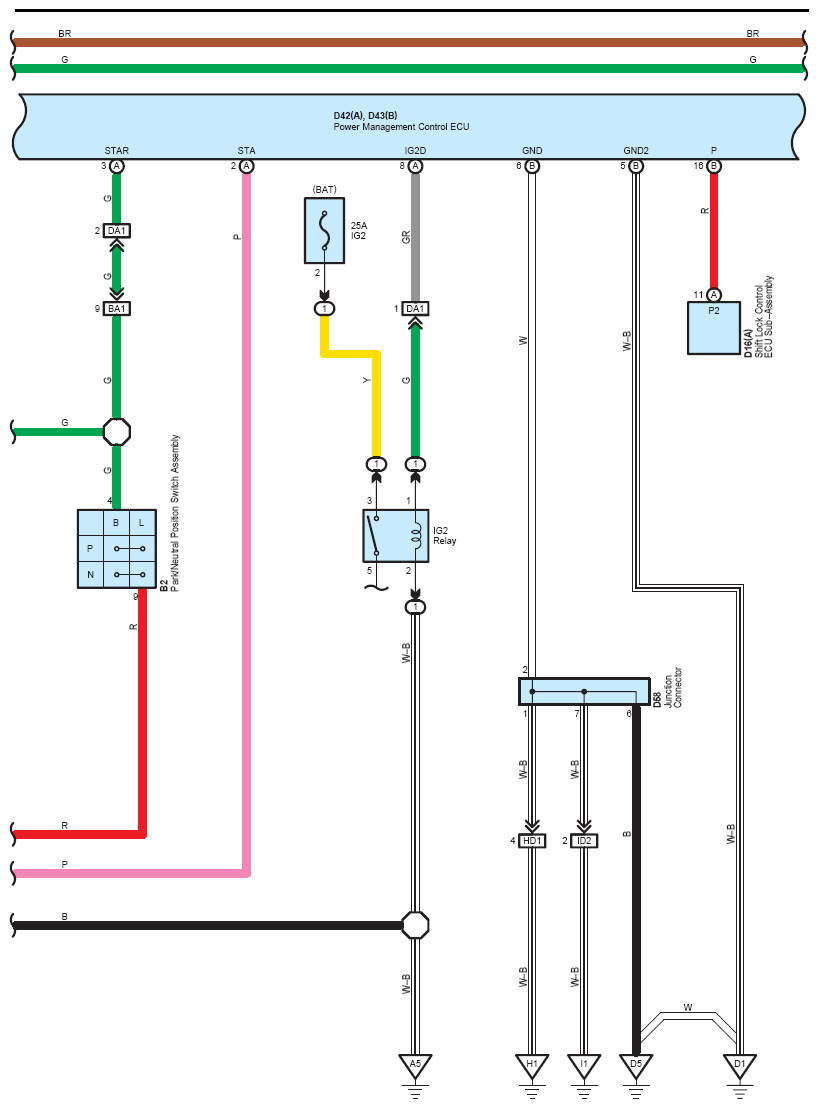

Fig 2: Smart Key System Wiring Diagram (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

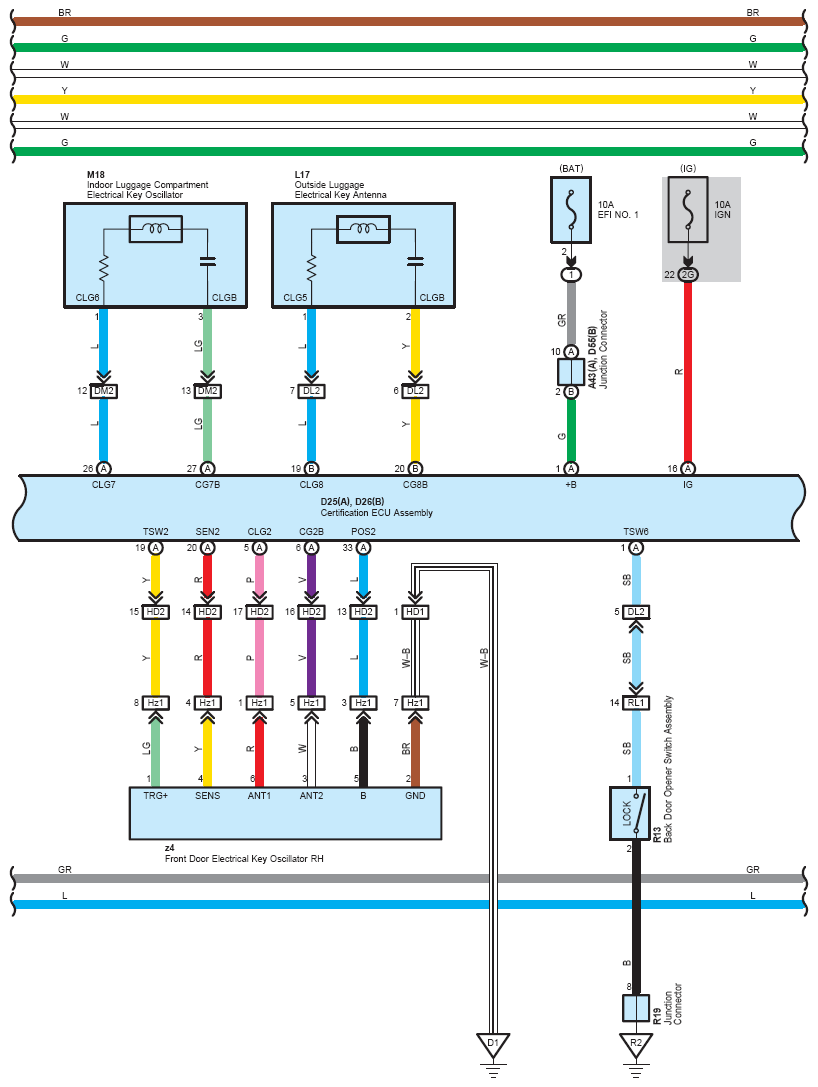

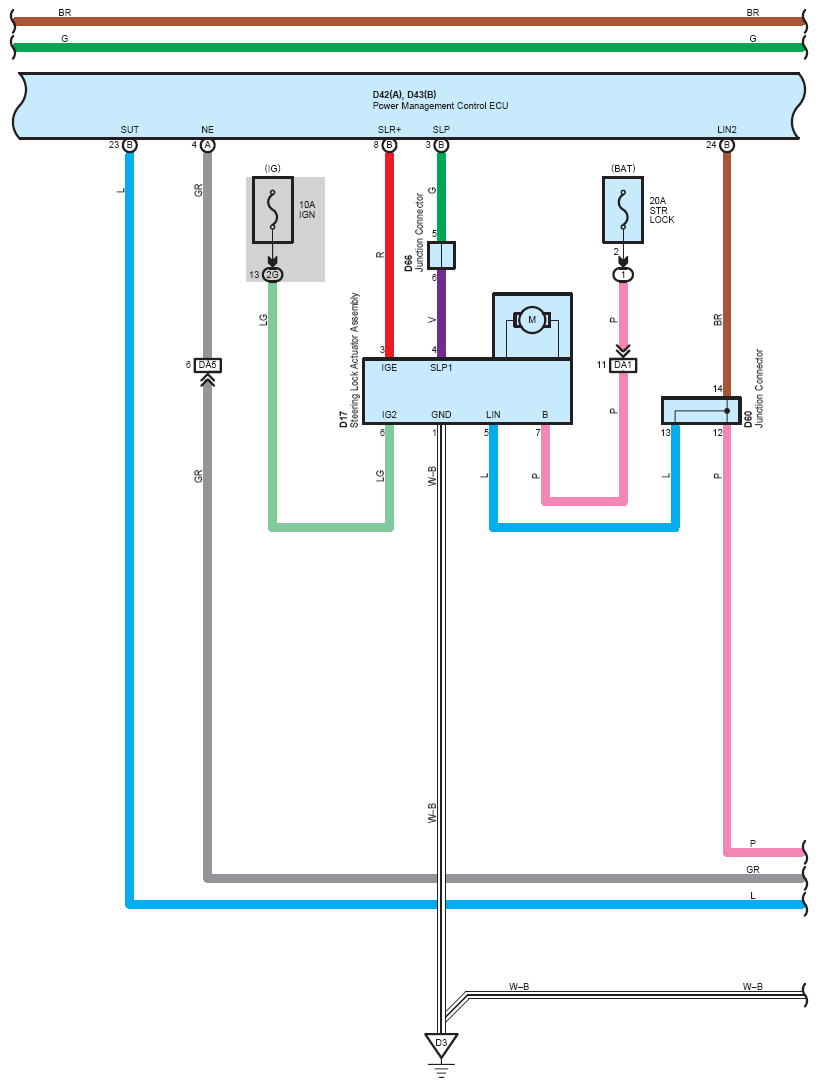

Fig 3: Smart Key System Wiring Diagram (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Smart Key System Wiring Diagram (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Smart Key System Wiring Diagram (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

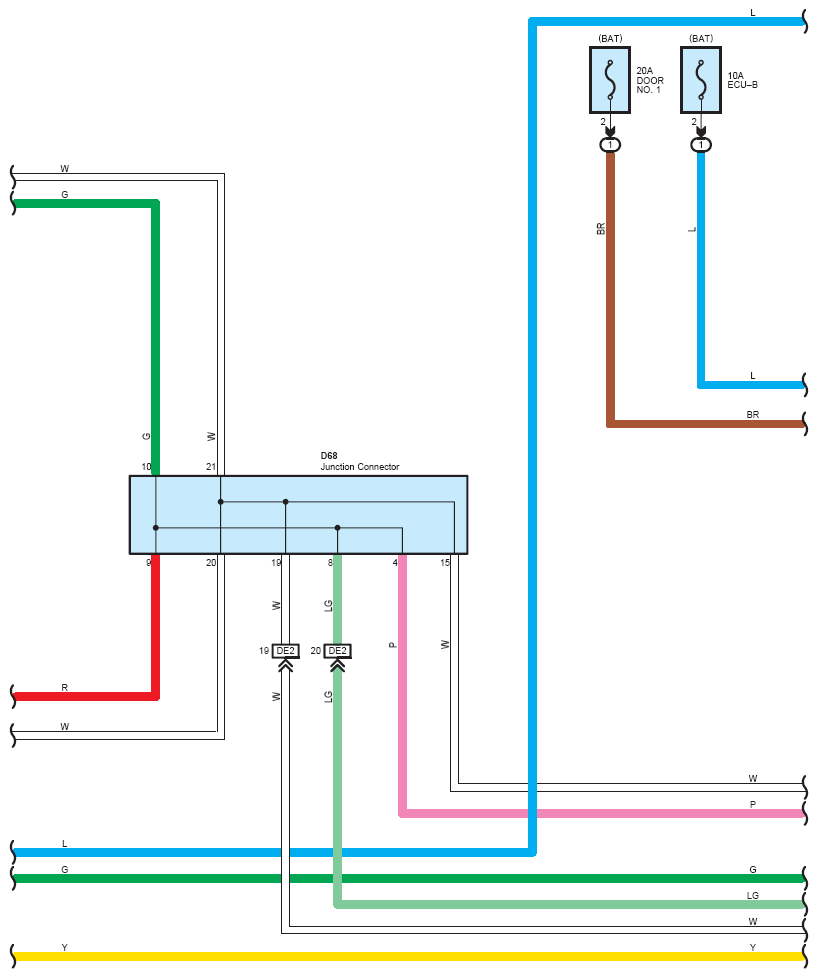

Fig 6: Smart Key System Wiring Diagram (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

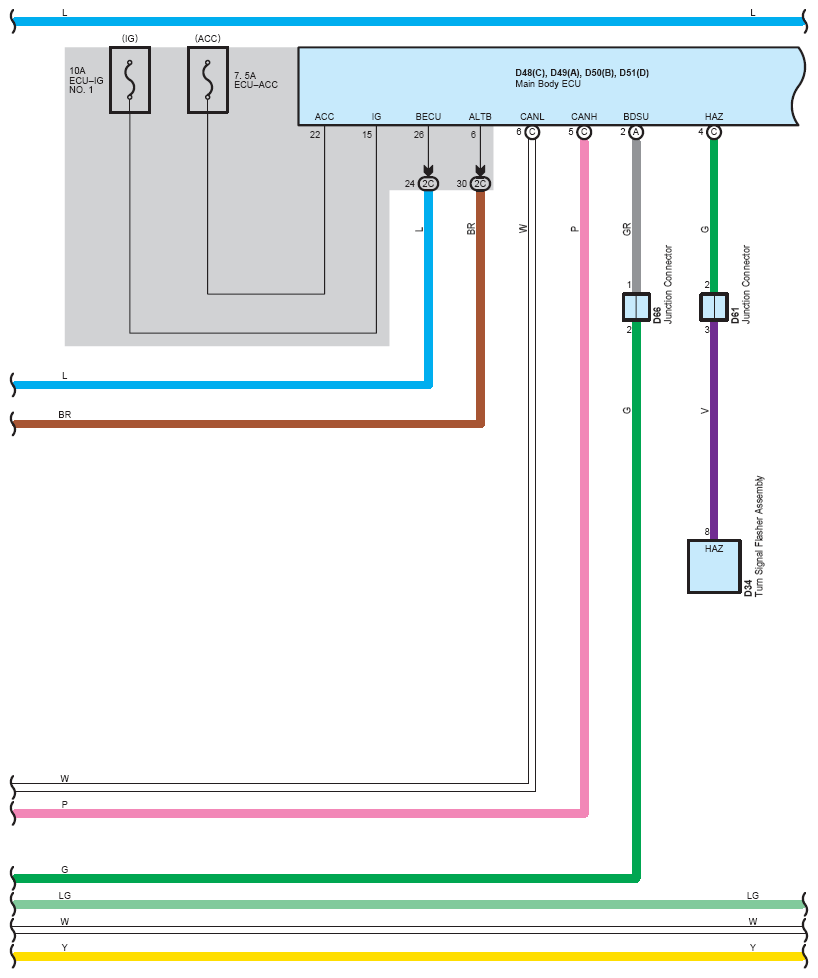

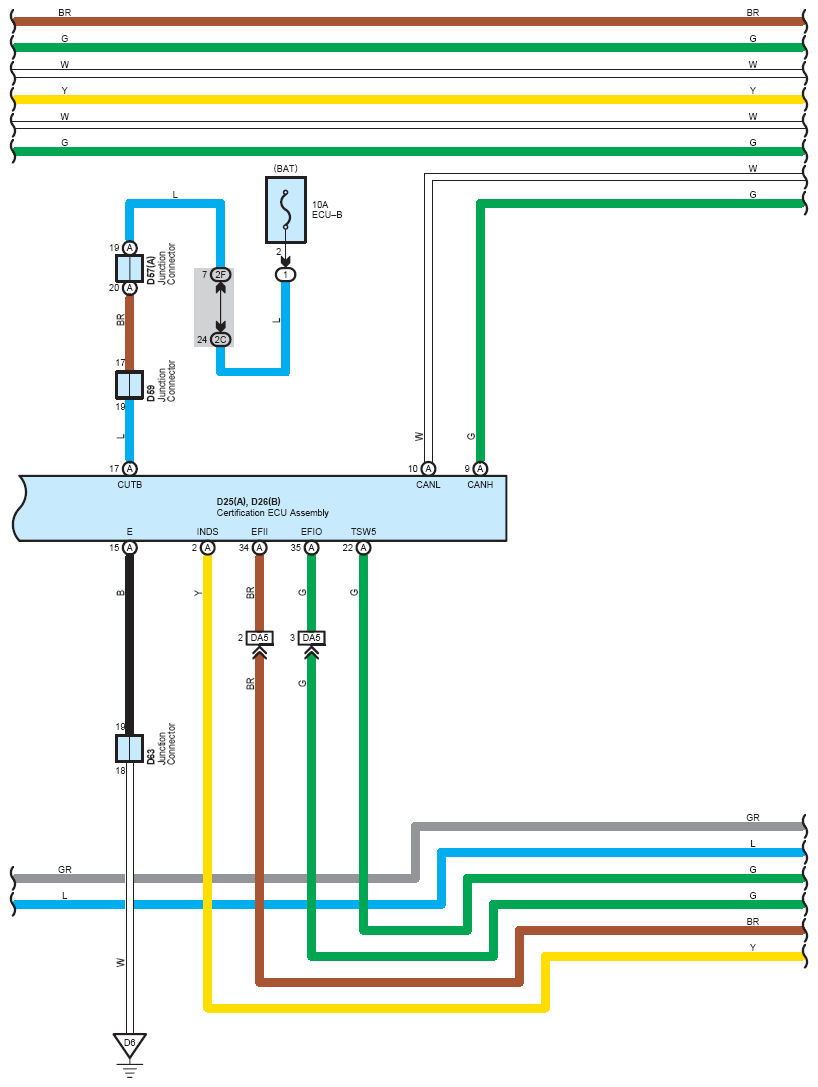

Fig 7: Smart Key System Wiring Diagram (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

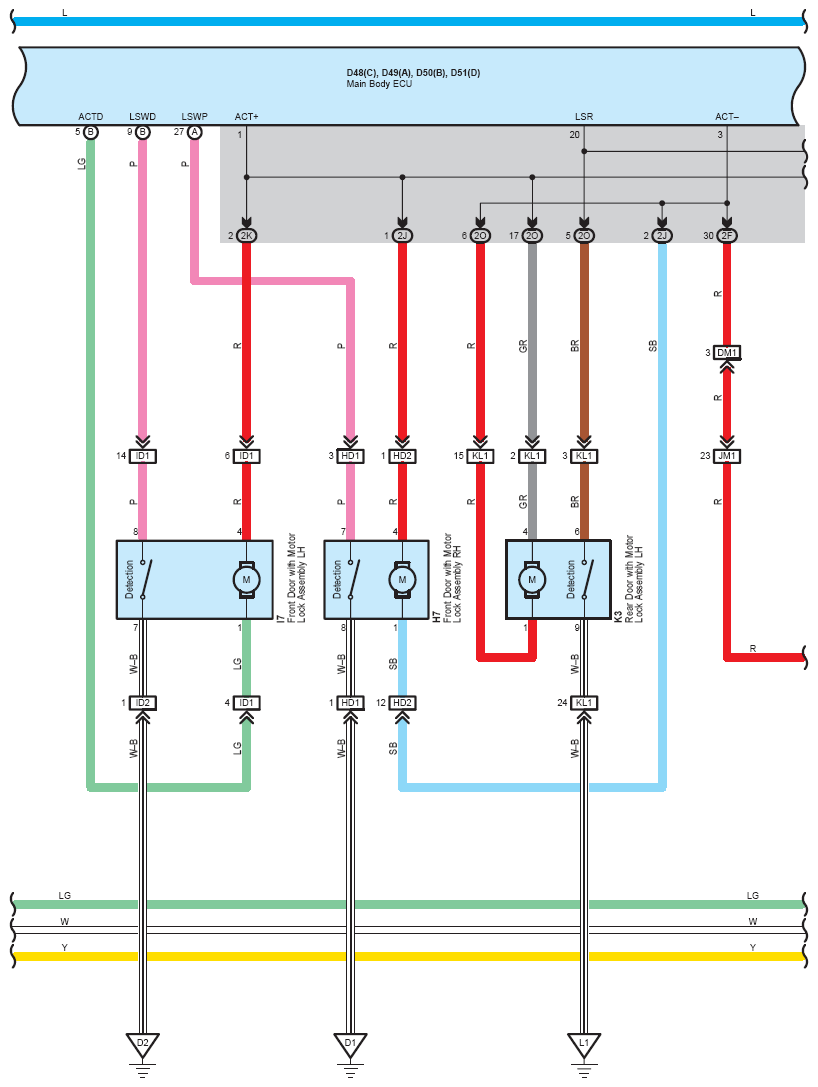

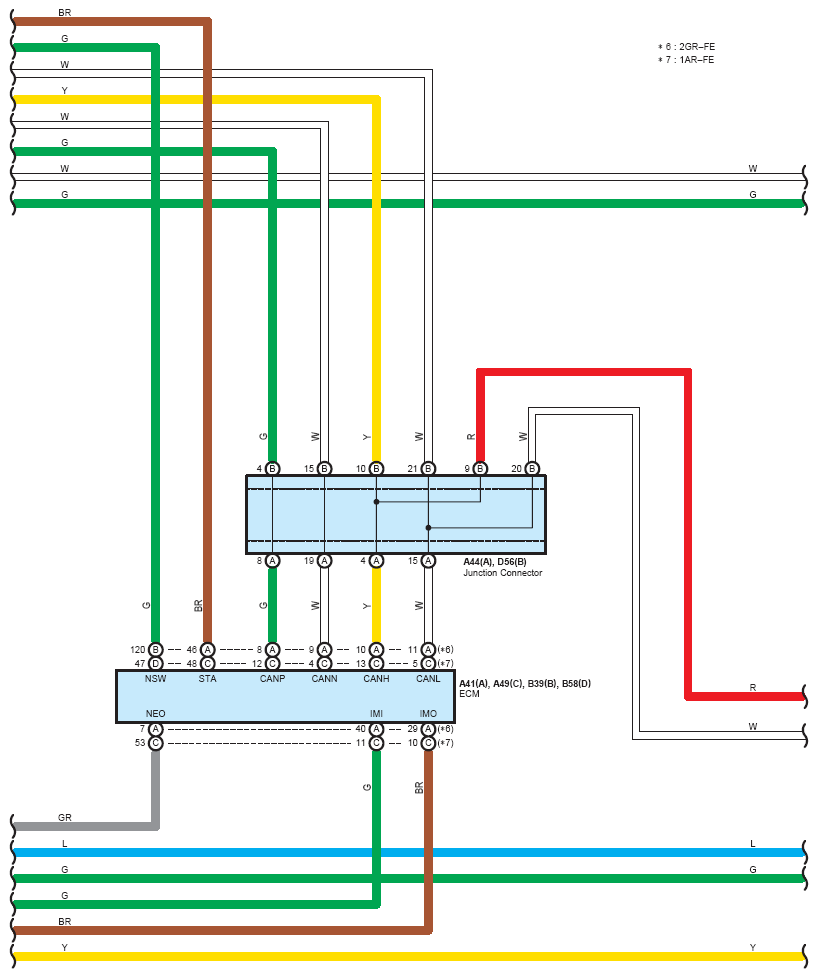

Fig 8: Smart Key System Wiring Diagram (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

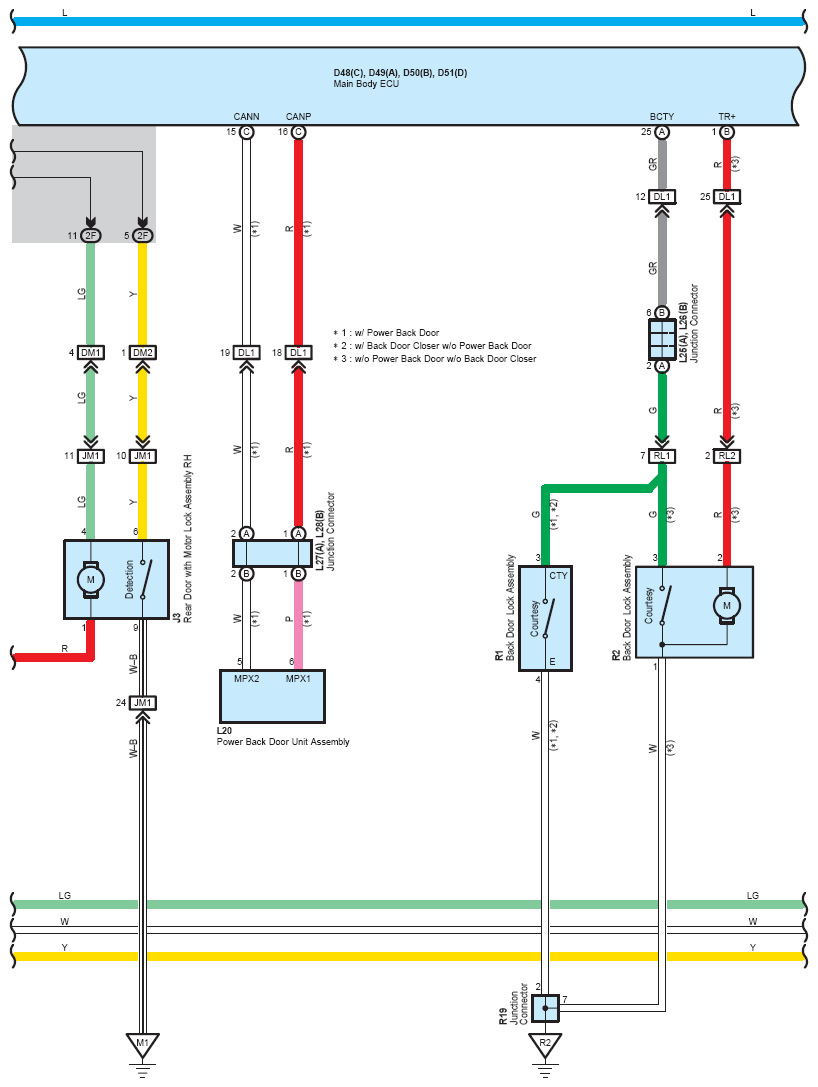

Fig 9: Smart Key System Wiring Diagram (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

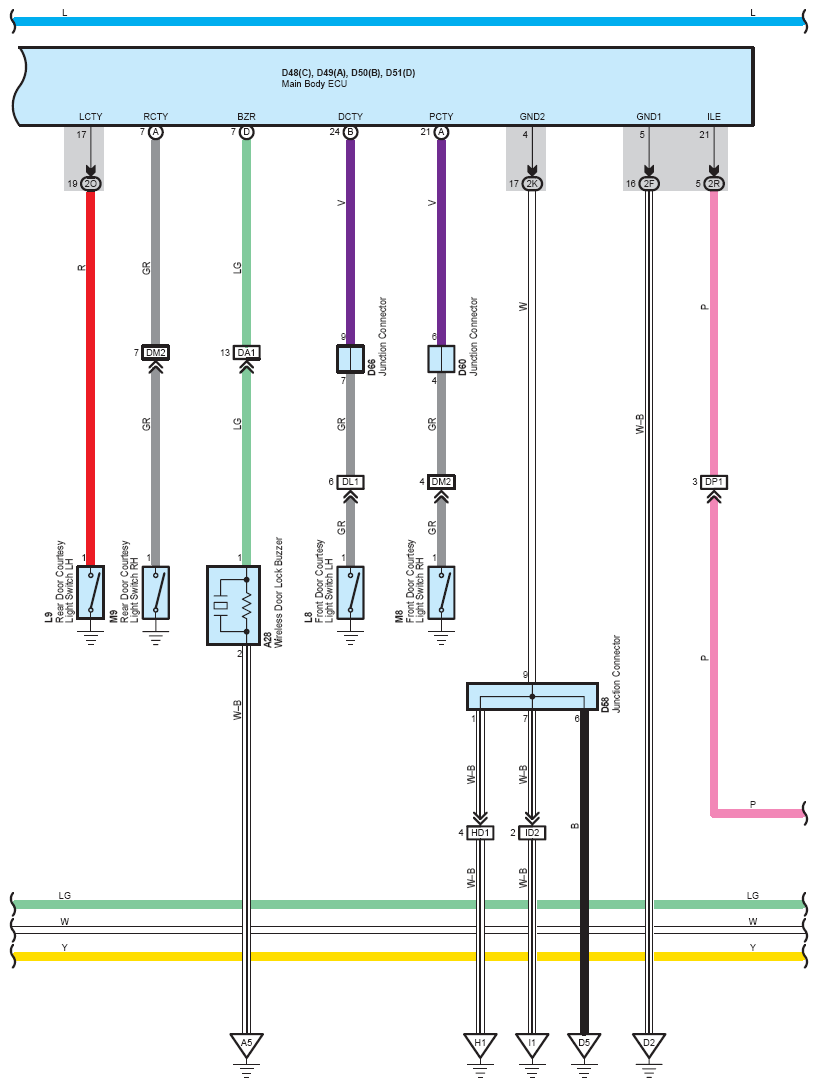

Fig 10: Smart Key System Wiring Diagram (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Smart Key System Wiring Diagram (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Smart Key System Wiring Diagram (12 Of 17)

Fig 13: Smart Key System Wiring Diagram (13 Of 17)

Fig 14: Smart Key System Wiring Diagram (14 Of 17)

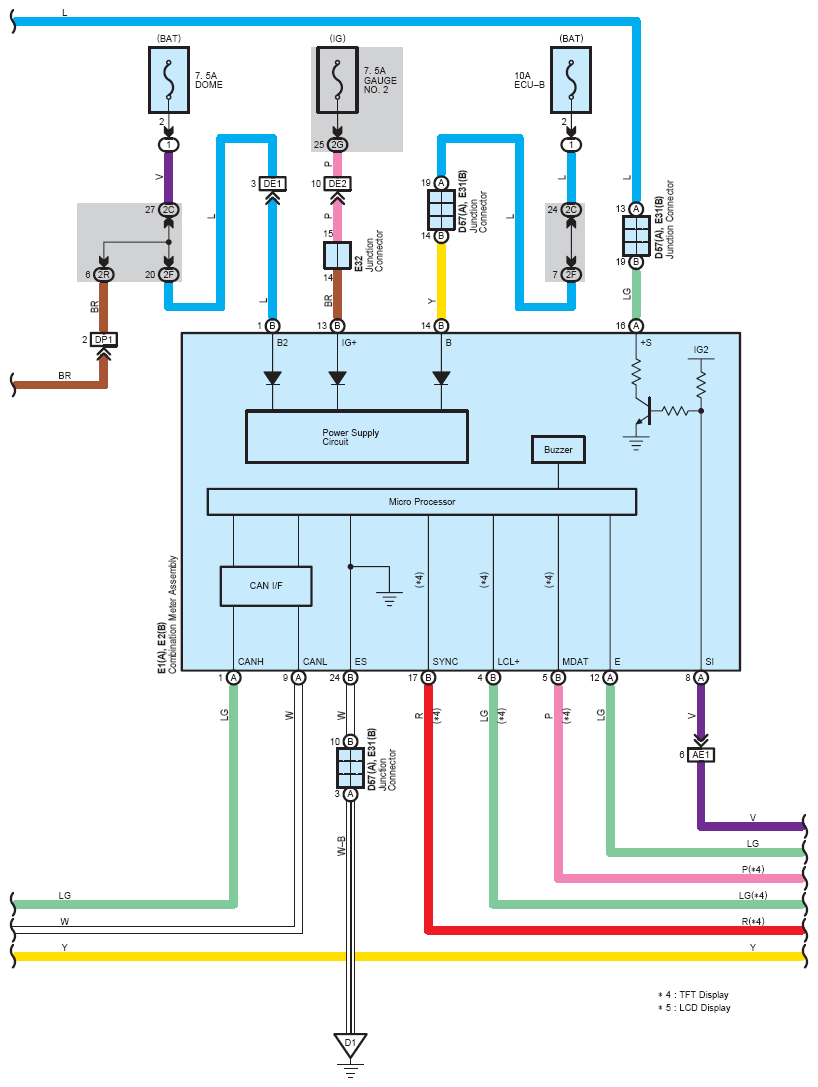

Fig 15: Smart Key System Wiring Diagram (15 Of 17)

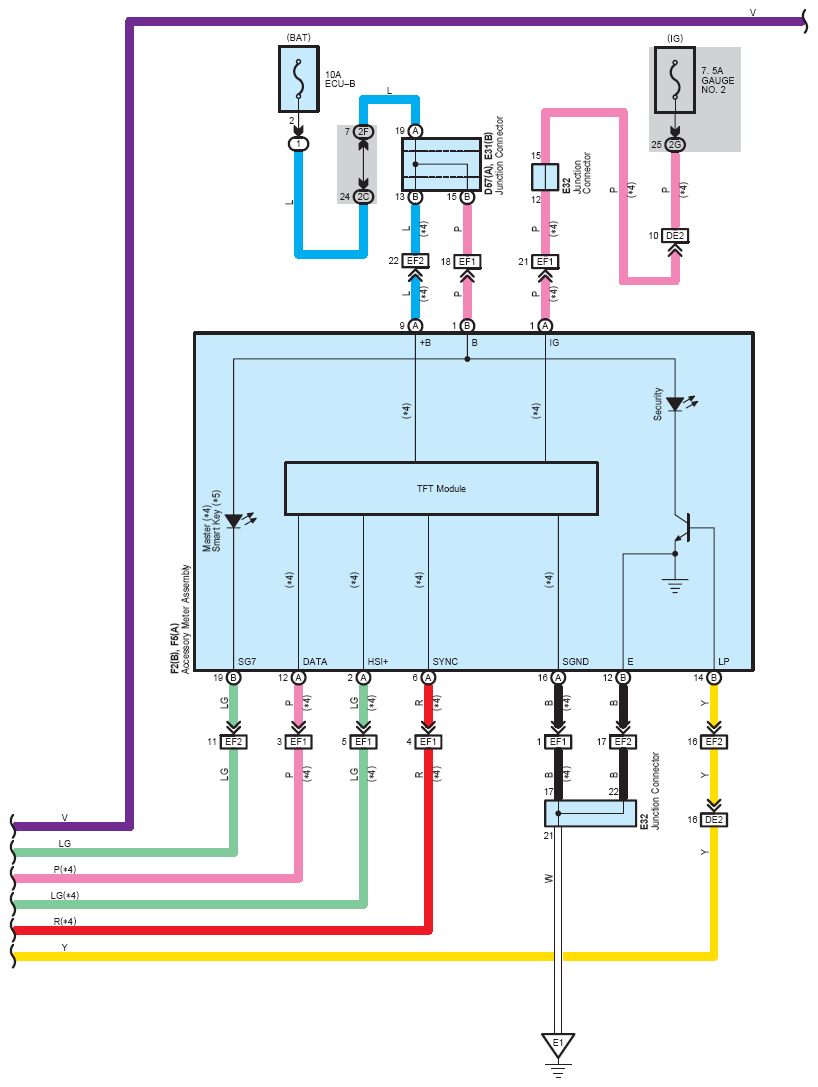

Fig 16: Smart Key System Wiring Diagram (16 Of 17)

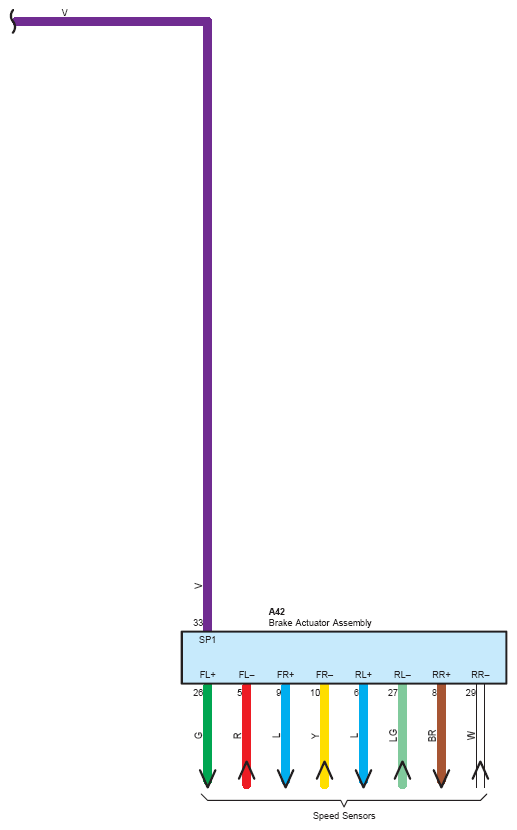

Fig 17: Smart Key System Wiring Diagram (17 Of 17)
