Rear Window Defogger: Notes

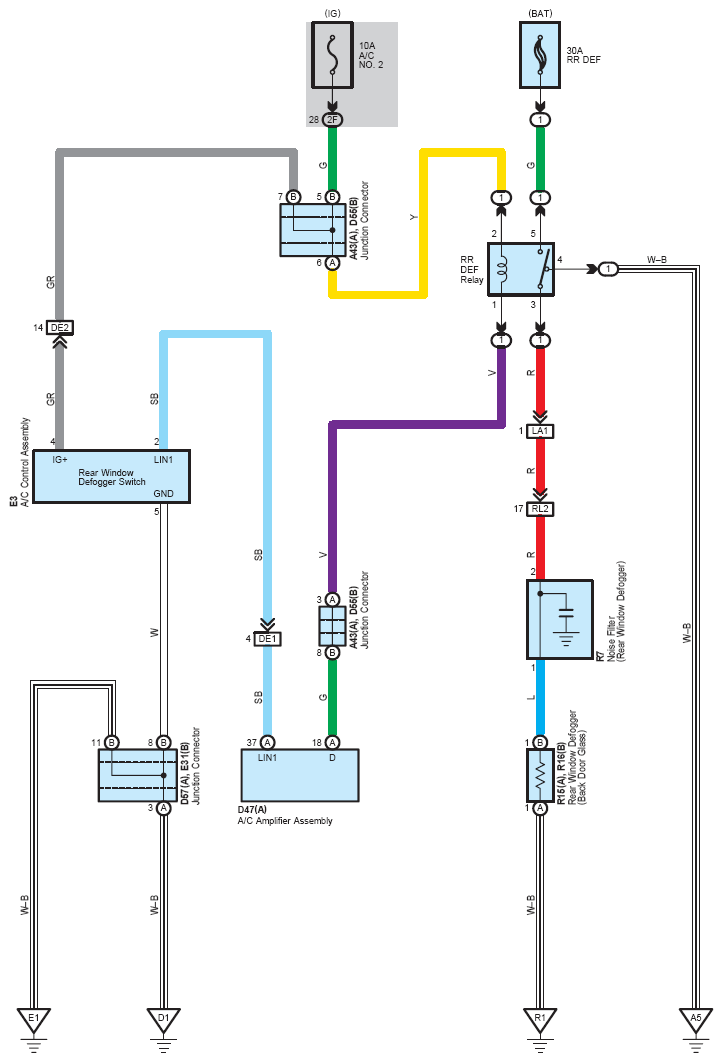

Fig 1: Rear Window Defogger System Wiring Diagram

G07124180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
