OEM System Circuits: Headlight: Notes

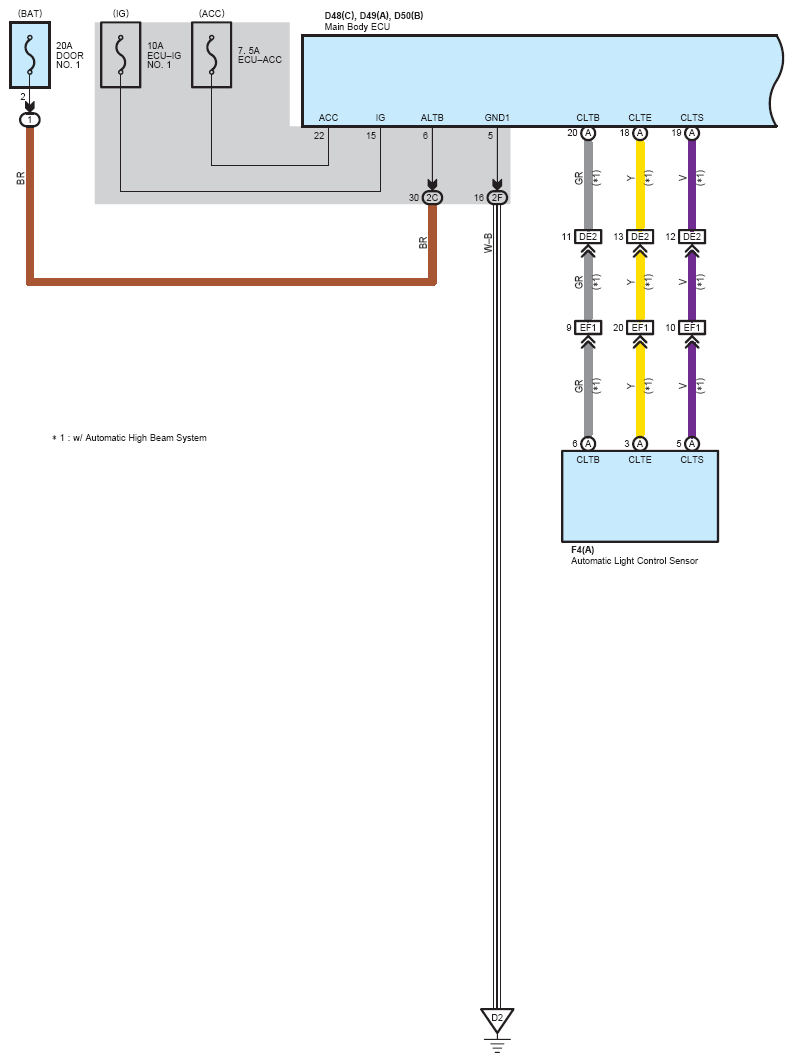

Fig 1: Headlight System Wiring Diagram (1 Of 7)

G07124051

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

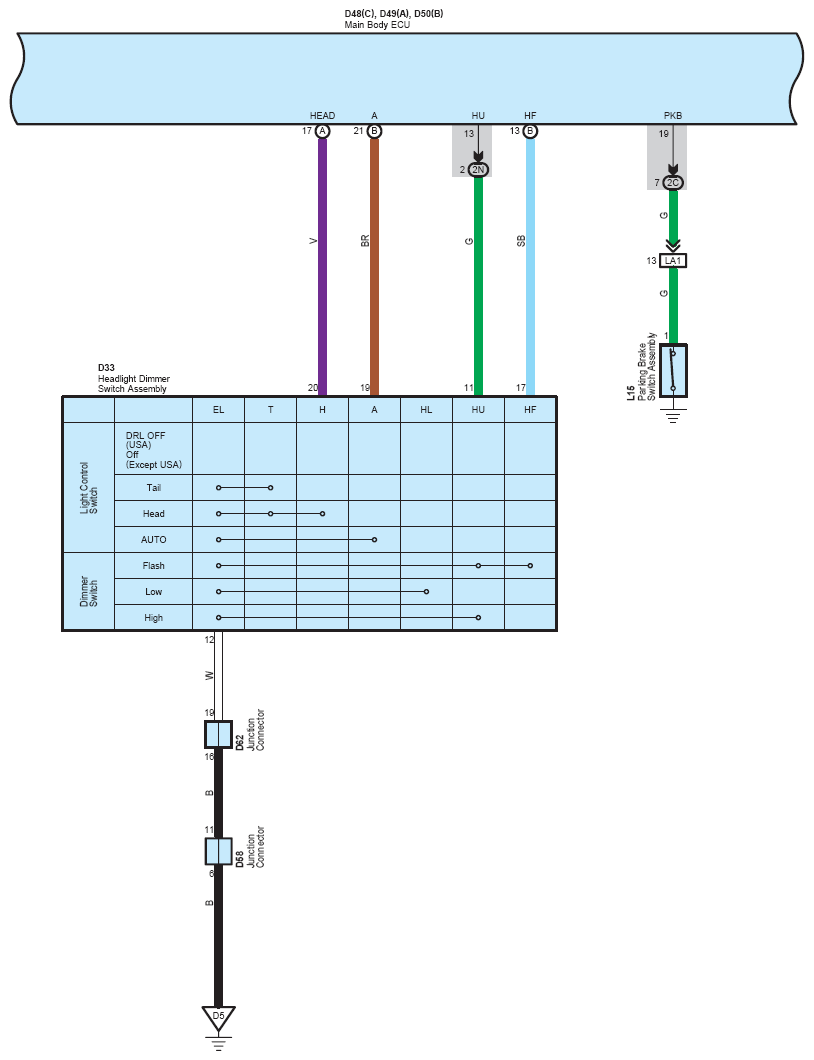

Fig 2: Headlight System Wiring Diagram (2 Of 7)

G07124052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

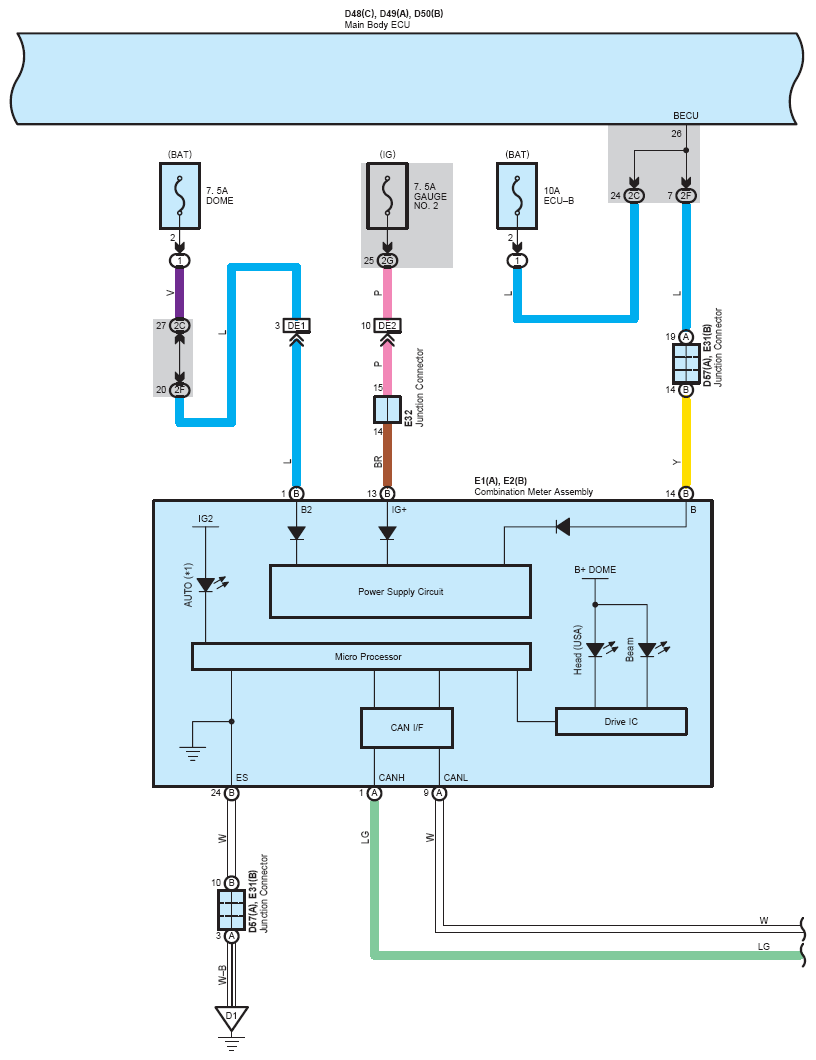

Fig 3: Headlight System Wiring Diagram (3 Of 7)

G07124053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

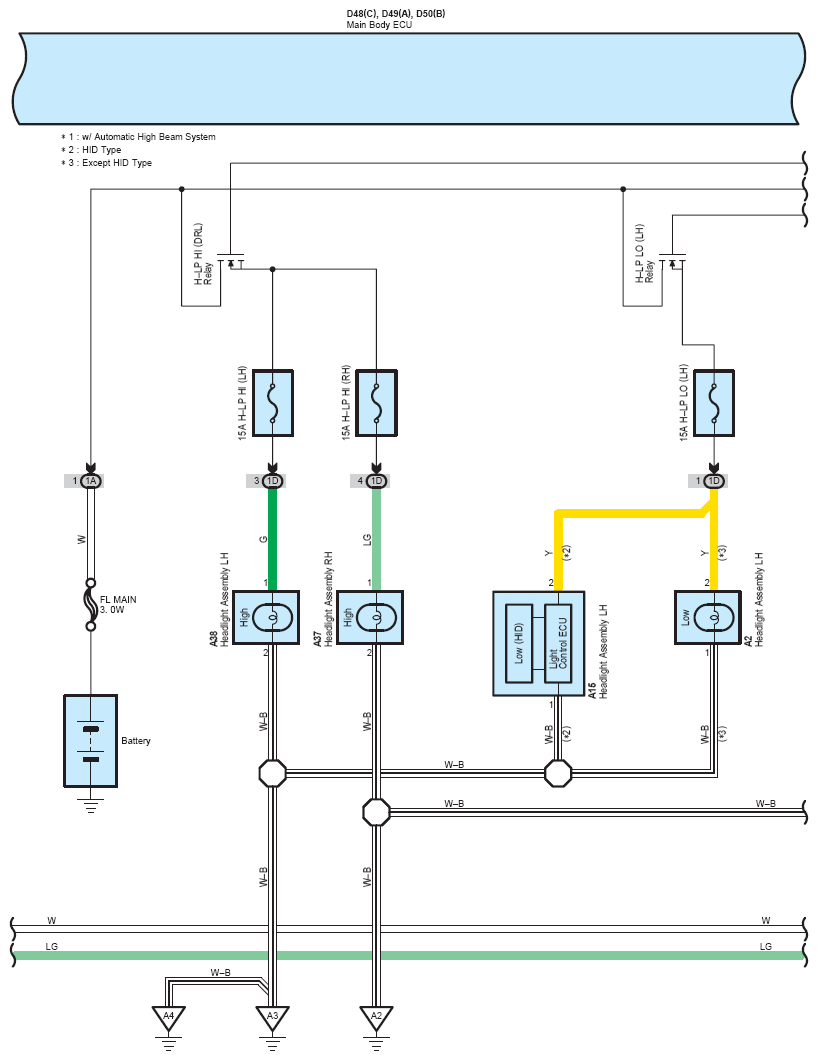

Fig 4: Headlight System Wiring Diagram (4 Of 7)

G07124054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

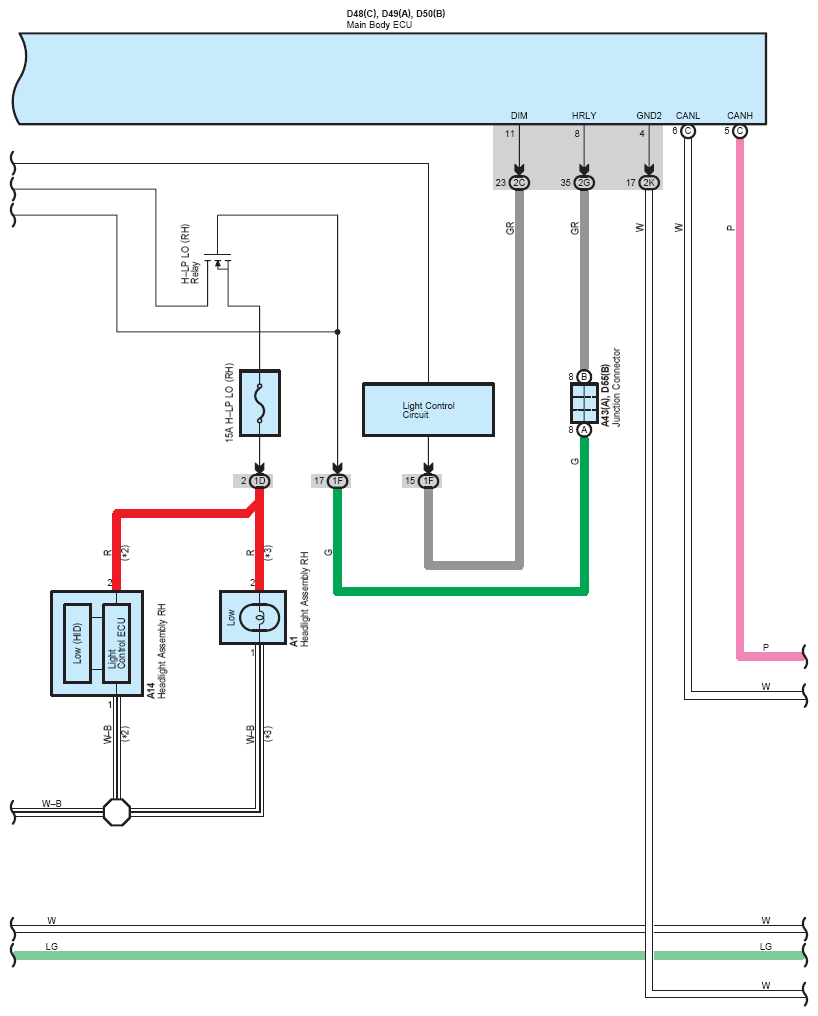

Fig 5: Headlight System Wiring Diagram (5 Of 7)

G07124055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

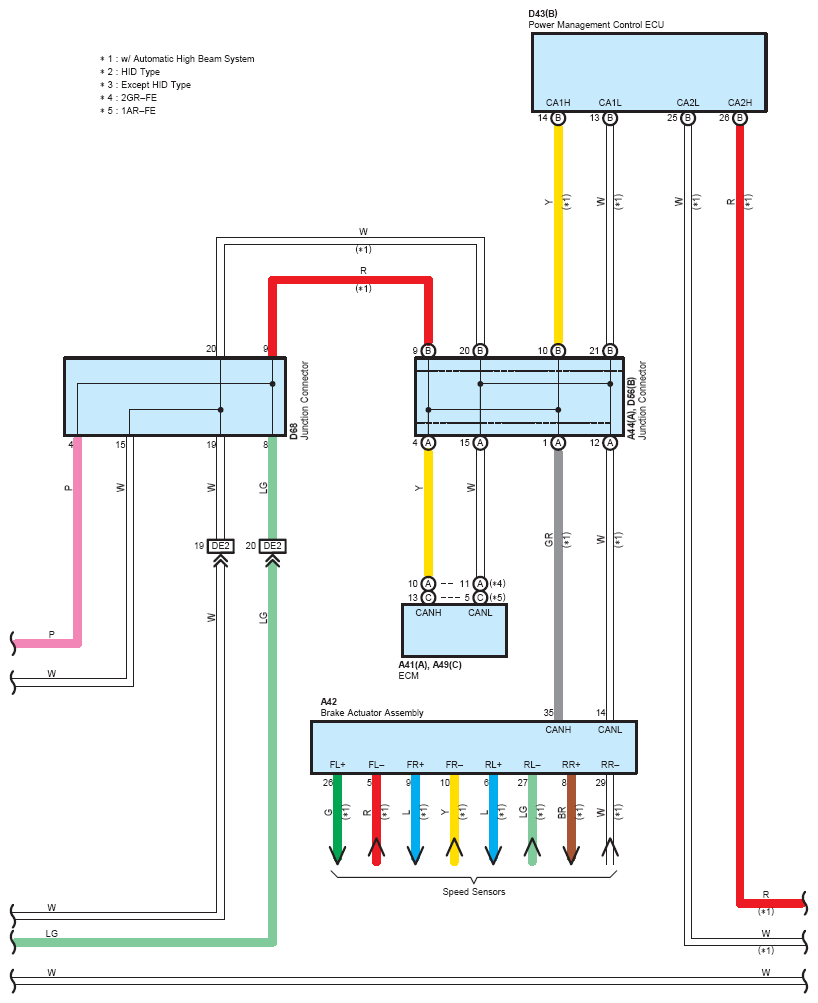

Fig 6: Headlight System Wiring Diagram (6 Of 7)

G07124056

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

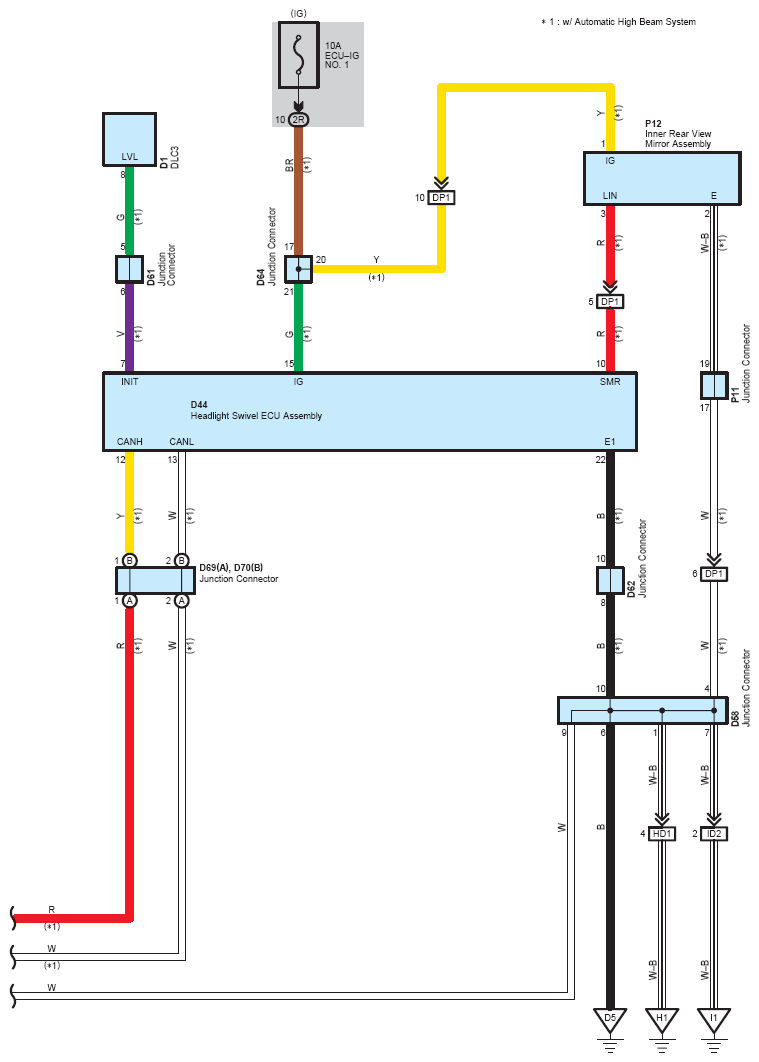

Fig 7: Headlight System Wiring Diagram (7 Of 7)

G07124057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
