Air Conditioning: Notes

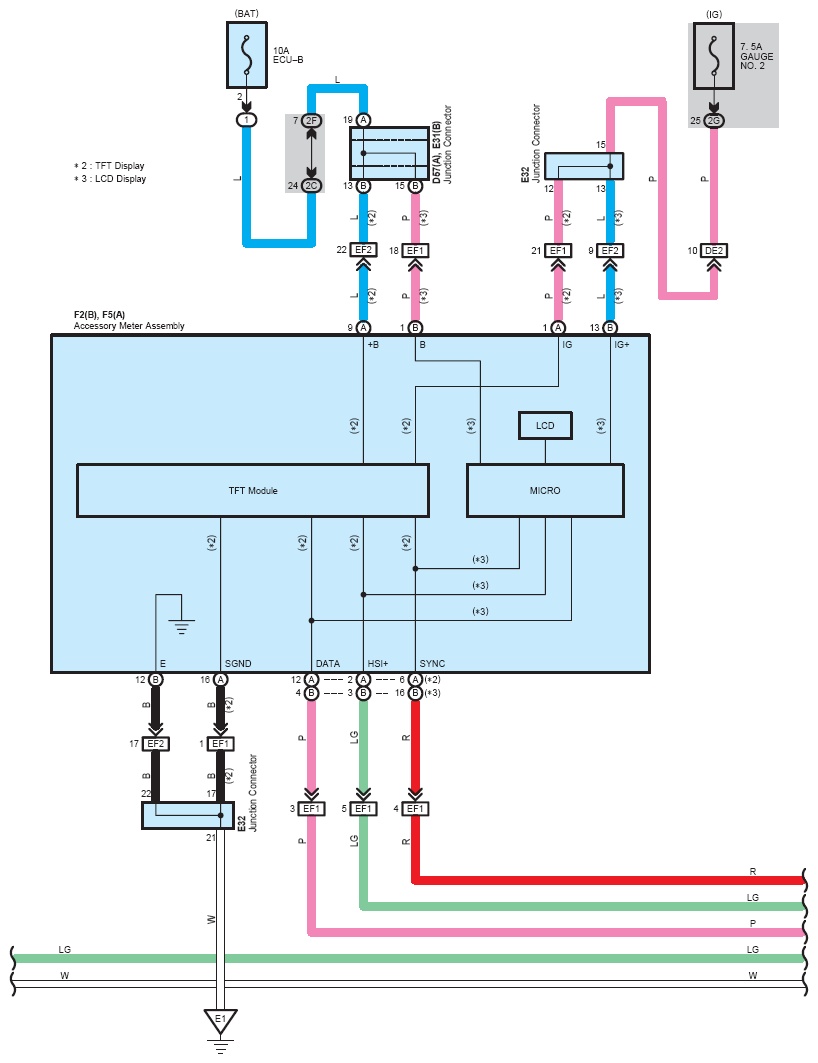

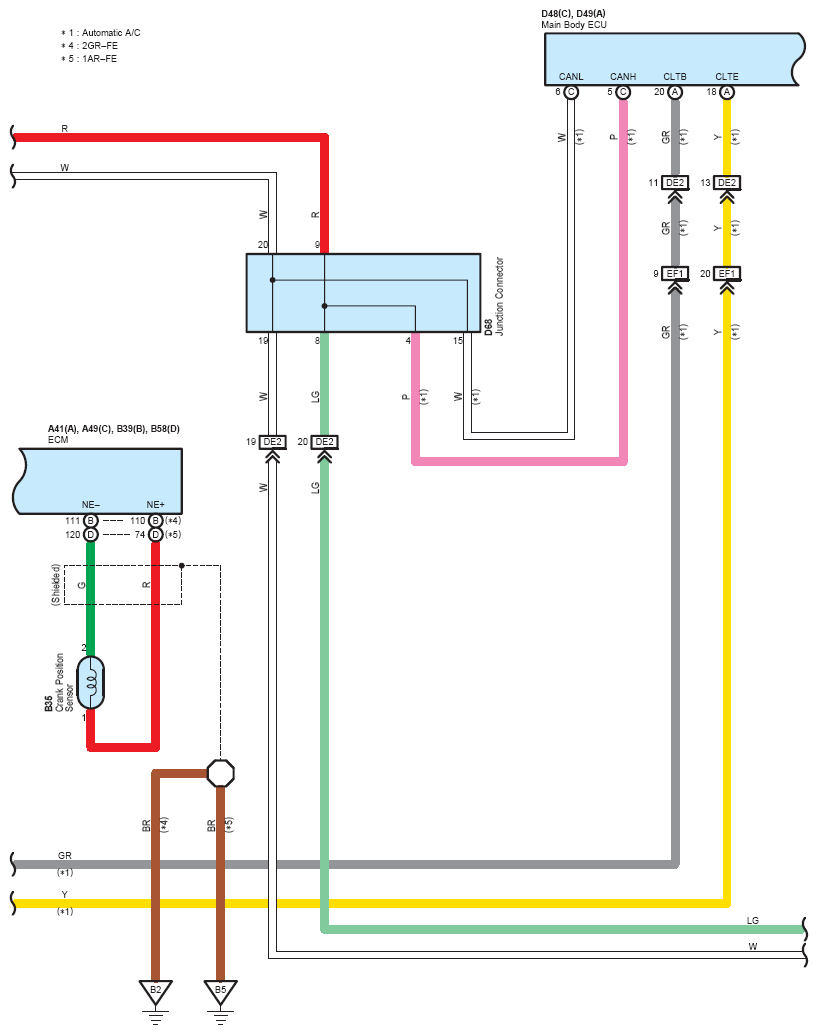

Fig 1: Air Conditioning System Wiring Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

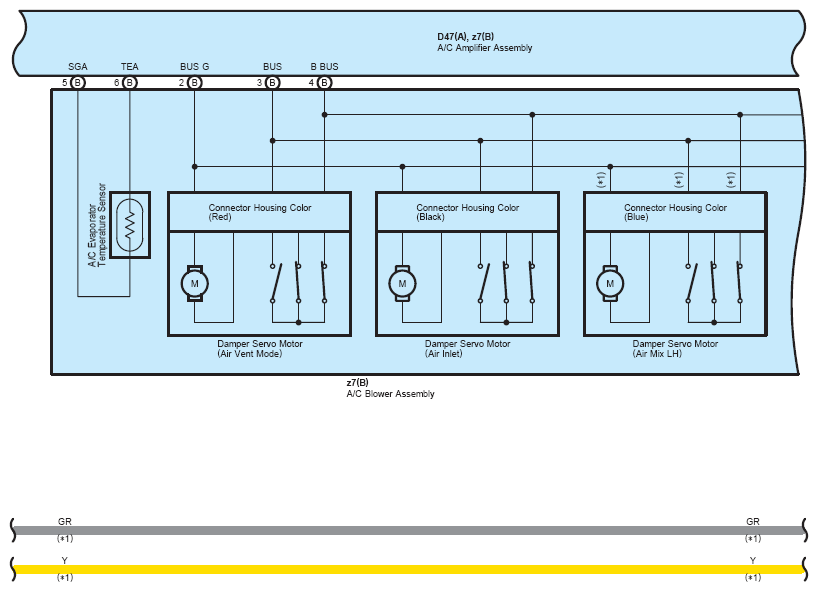

Fig 2: Air Conditioning System Wiring Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

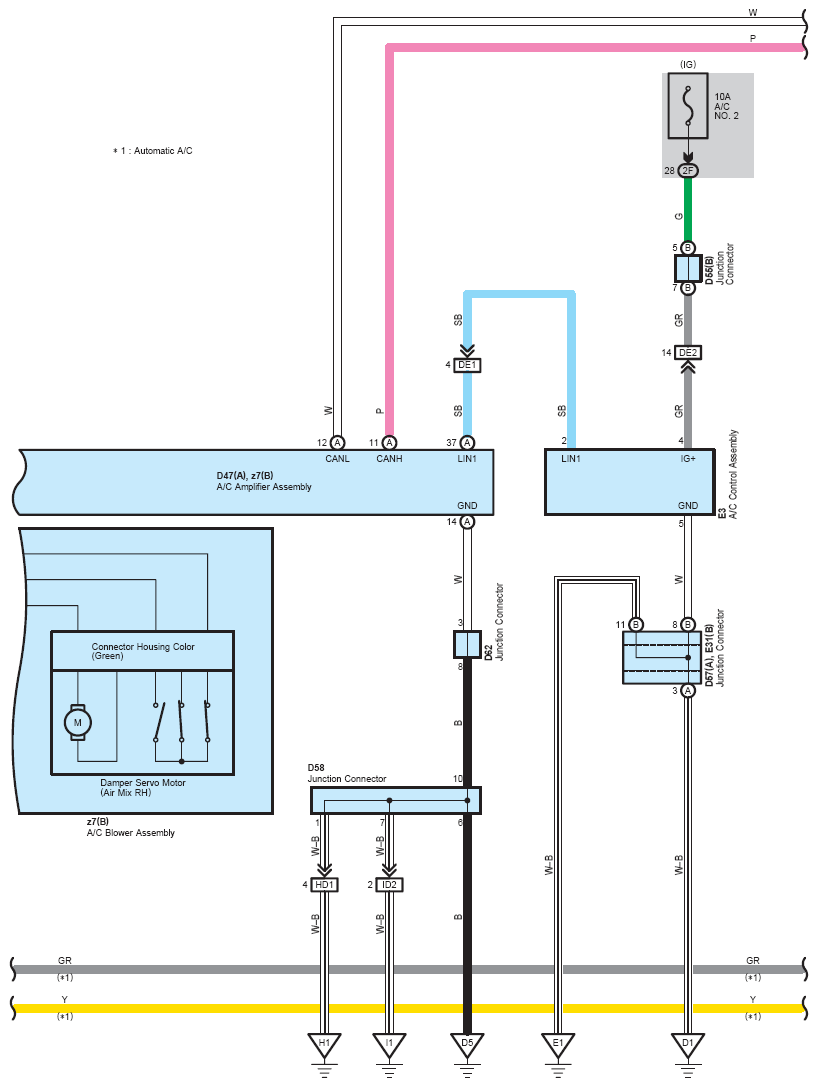

Fig 3: Air Conditioning System Wiring Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

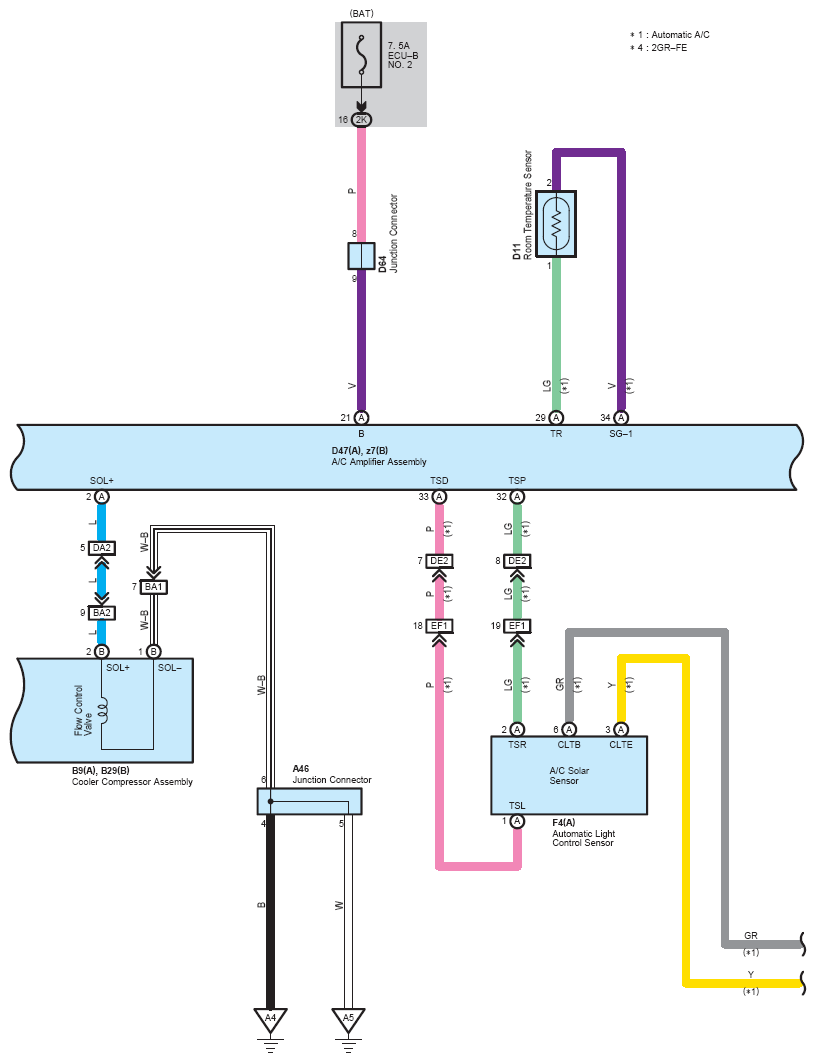

Fig 4: Air Conditioning System Wiring Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

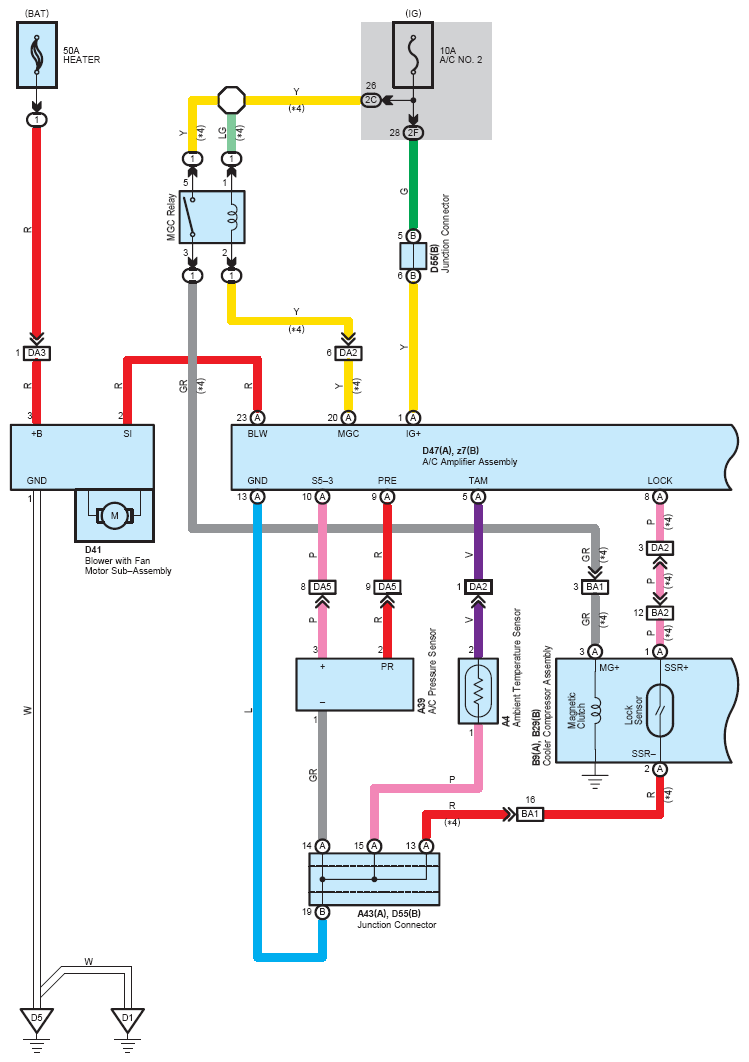

Fig 5: Air Conditioning System Wiring Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

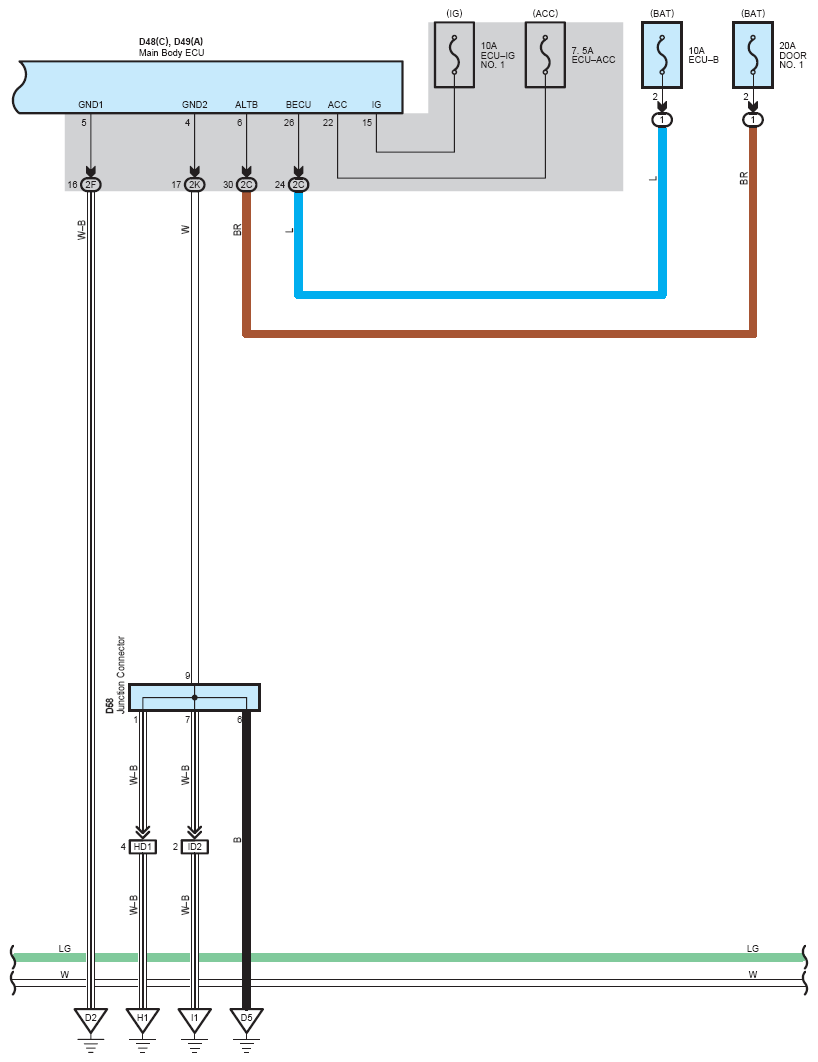

Fig 6: Air Conditioning System Wiring Diagram (6 Of 9)

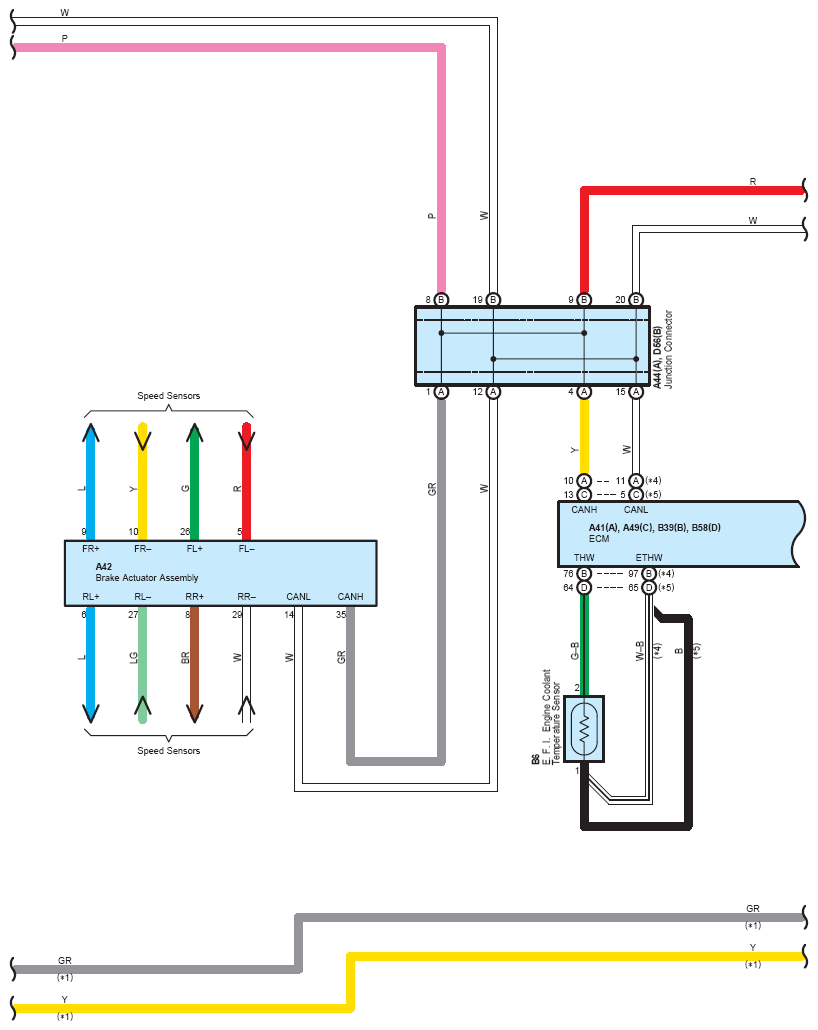

Fig 7: Air Conditioning System Wiring Diagram (7 Of 9)

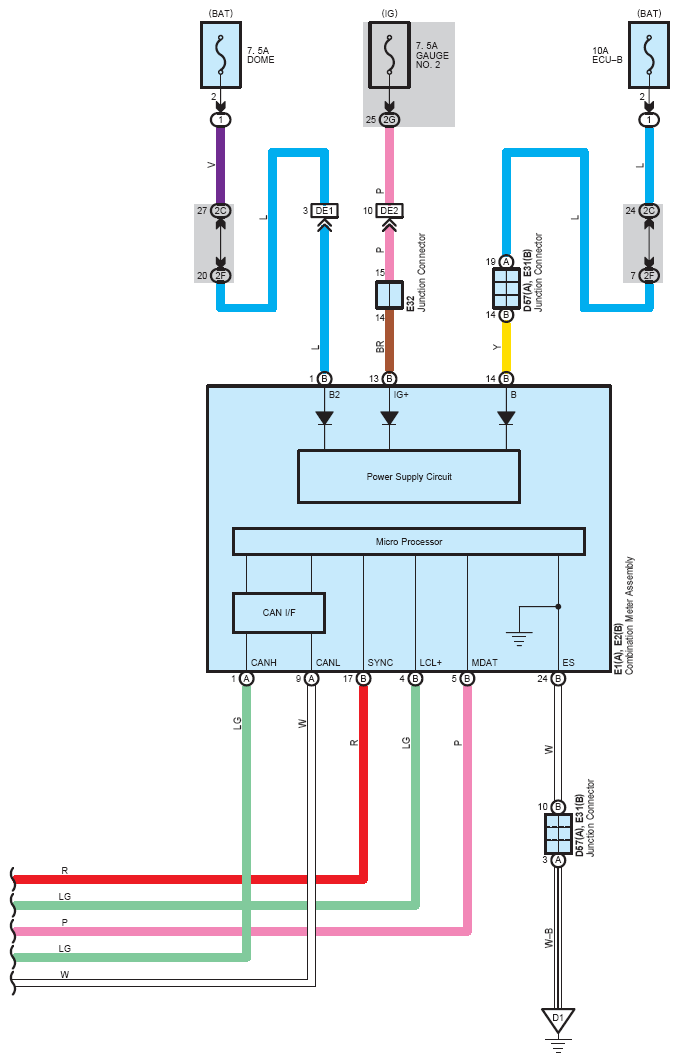

Fig 8: Air Conditioning System Wiring Diagram (8 Of 9)

Fig 9: Air Conditioning System Wiring Diagram (9 Of 9)
