OEM System Circuits: AWD: Notes

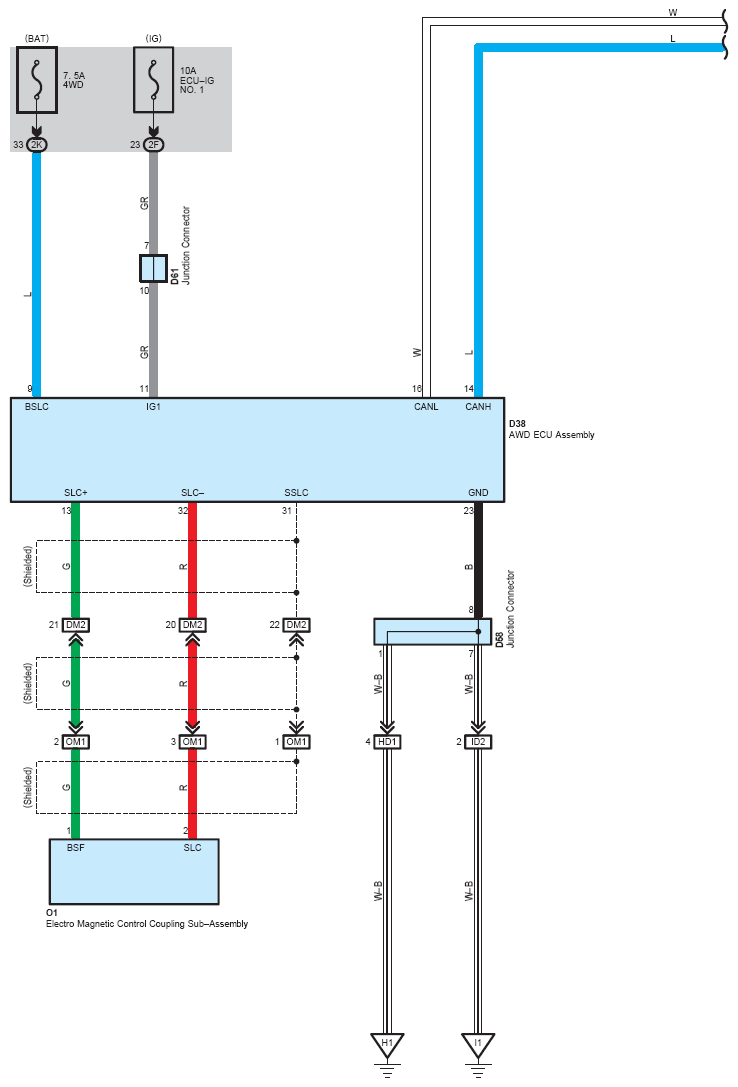

Fig 1: AWD System Wiring Diagram (1 Of 6)

G07124149

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

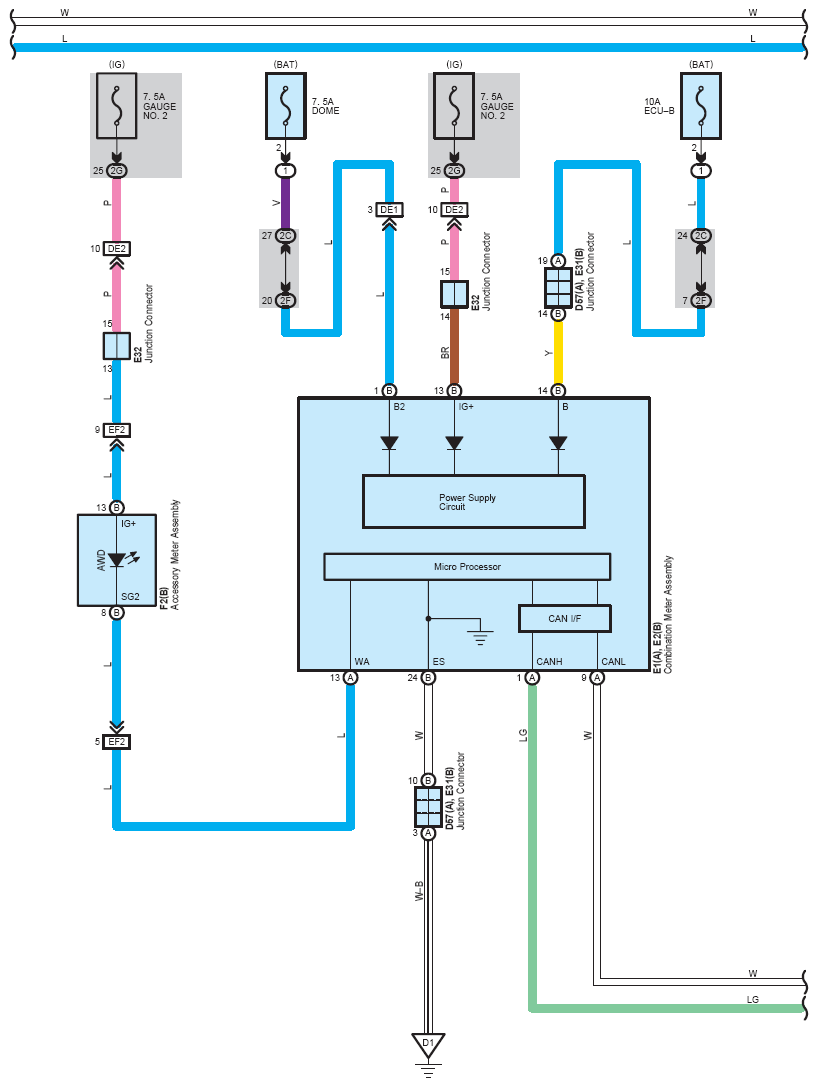

Fig 2: AWD System Wiring Diagram (2 Of 6)

G07124150

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

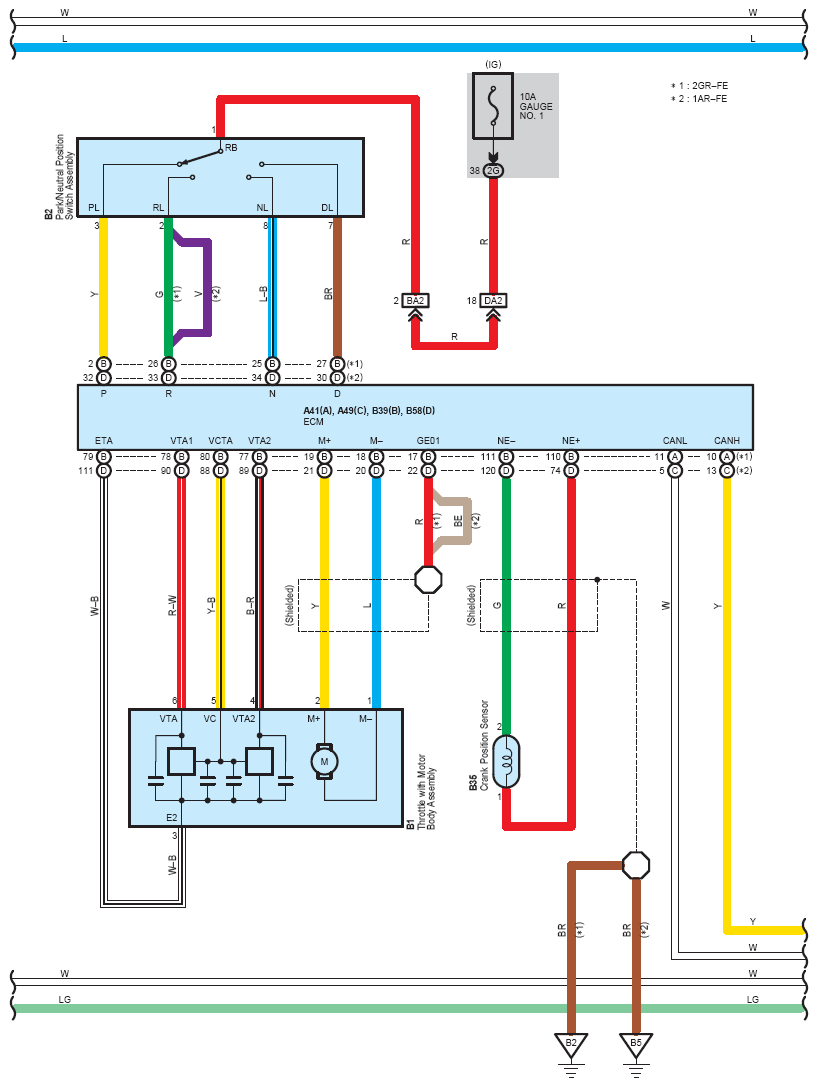

Fig 3: AWD System Wiring Diagram (3 Of 6)

G07124151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

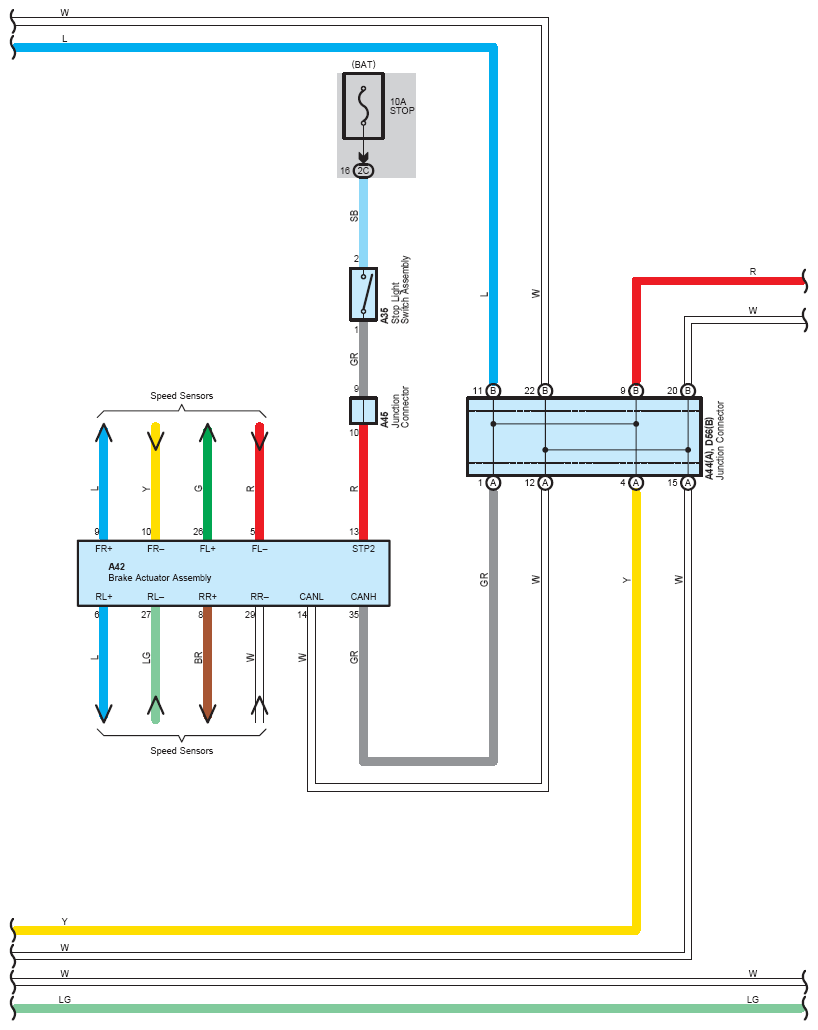

Fig 4: AWD System Wiring Diagram (4 Of 6)

G07124152

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

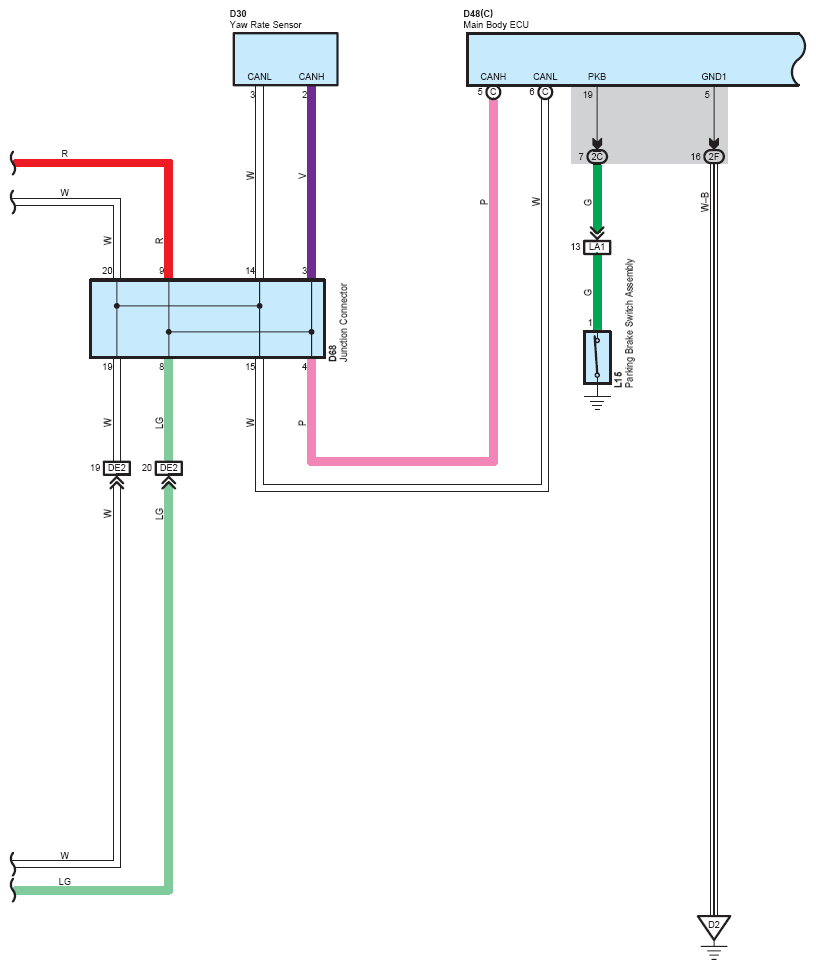

Fig 5: AWD System Wiring Diagram (5 Of 6)

G07124153

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

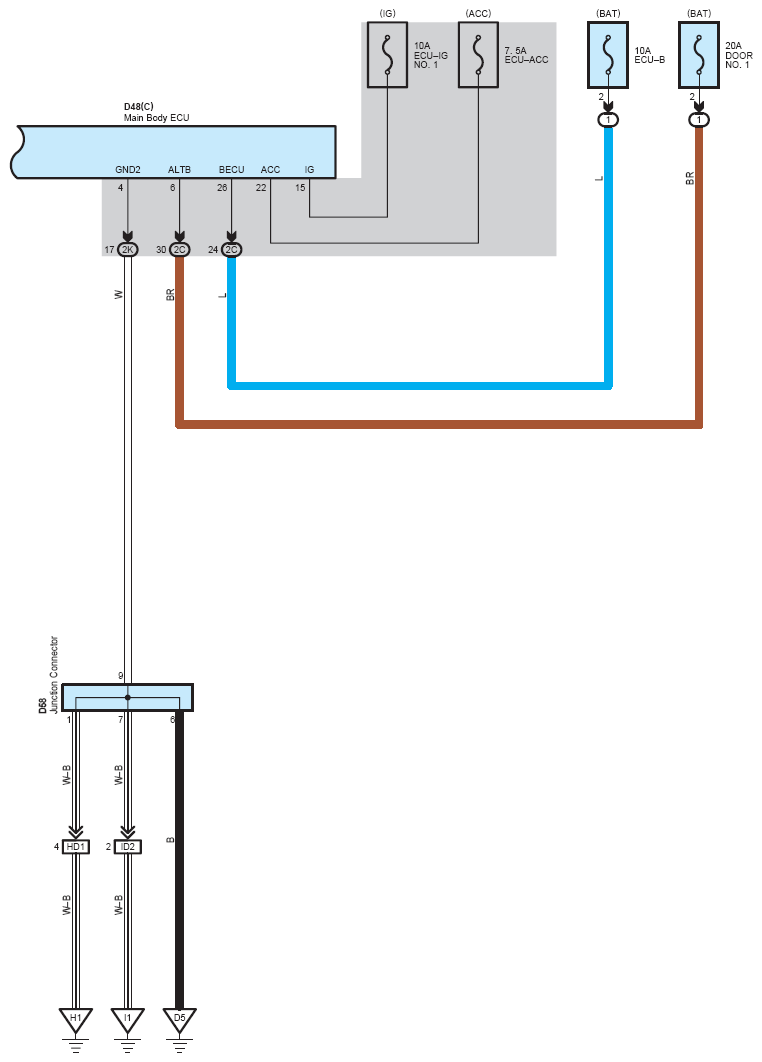

Fig 6: AWD System Wiring Diagram (6 Of 6)

G07124154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
