Front Speed Sensor: Components: Illustration

Fig 1: Identifying Front Speed Sensor Replacement Components (1 Of 2)
GTY253144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

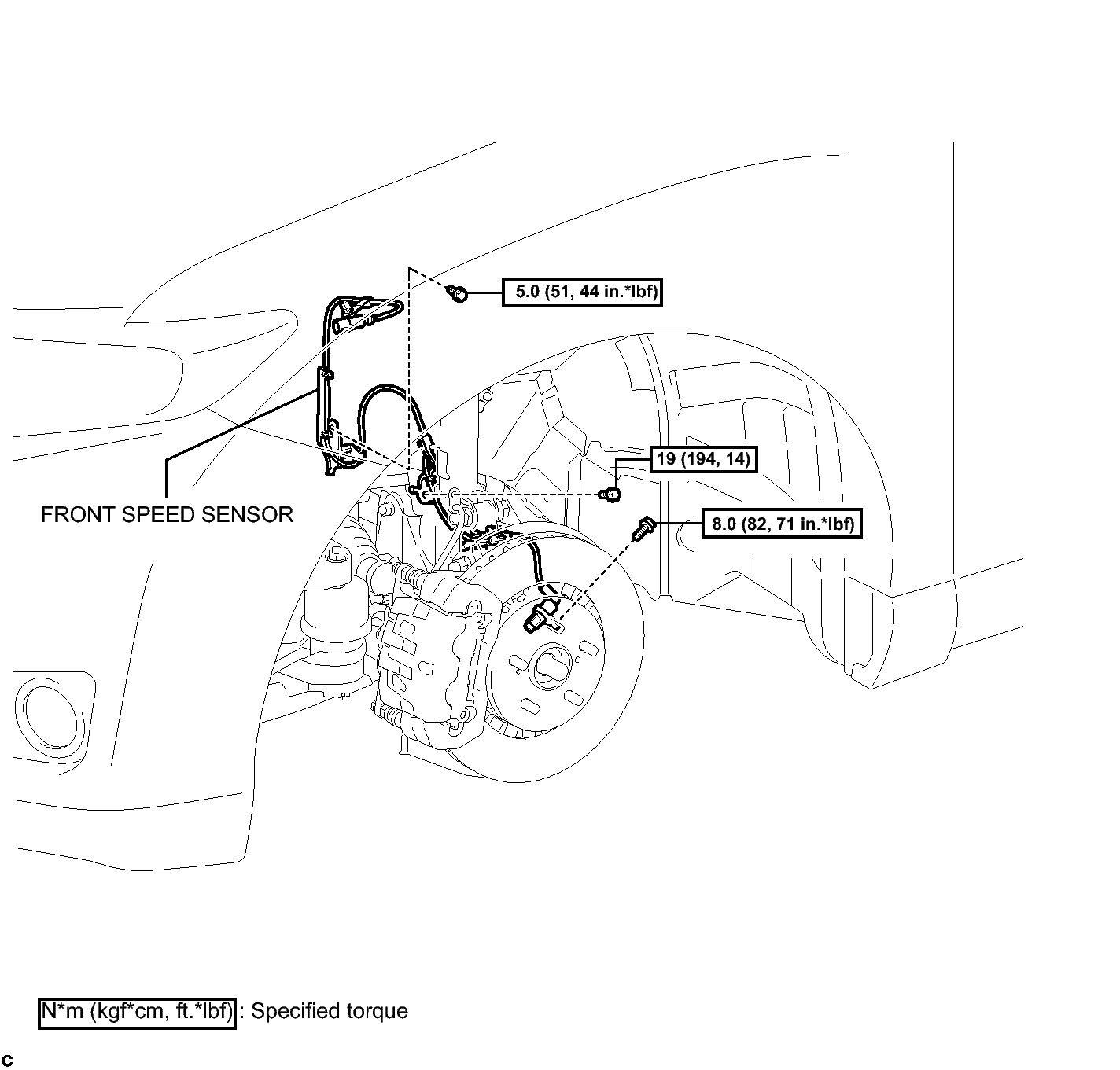

Fig 1: Identifying Front Speed Sensor Replacement Components With Torque Specification (2 Of 2)
GTY252885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
