Cruise Control (1GR-FE): Notes

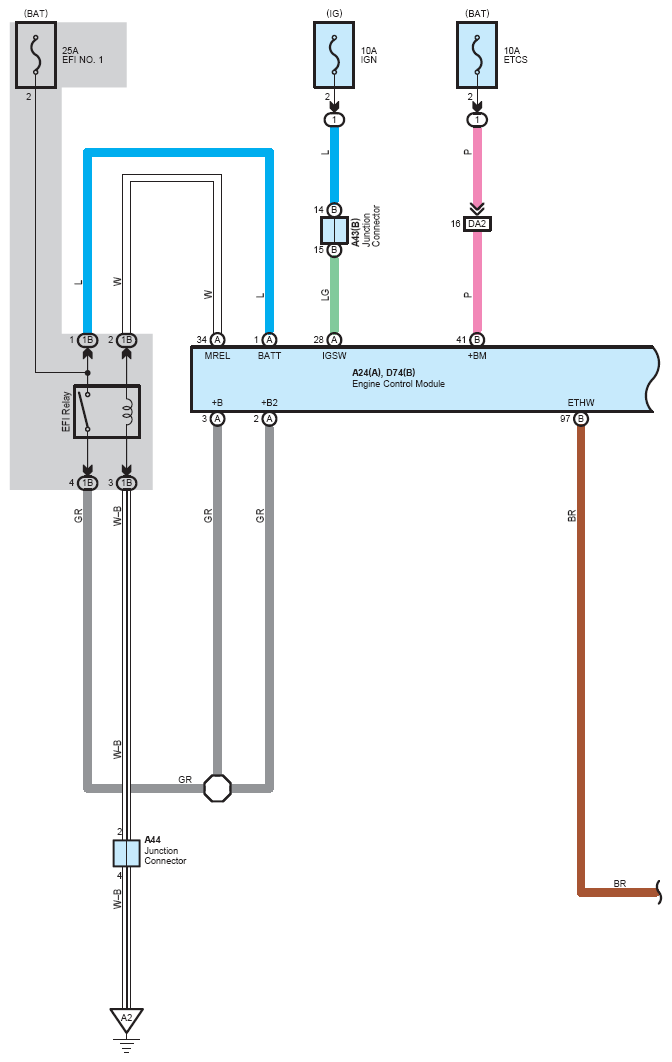

Fig 1: Cruise Control (1GR-FE) System Wiring Diagram (1 Of 7)
G07123644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

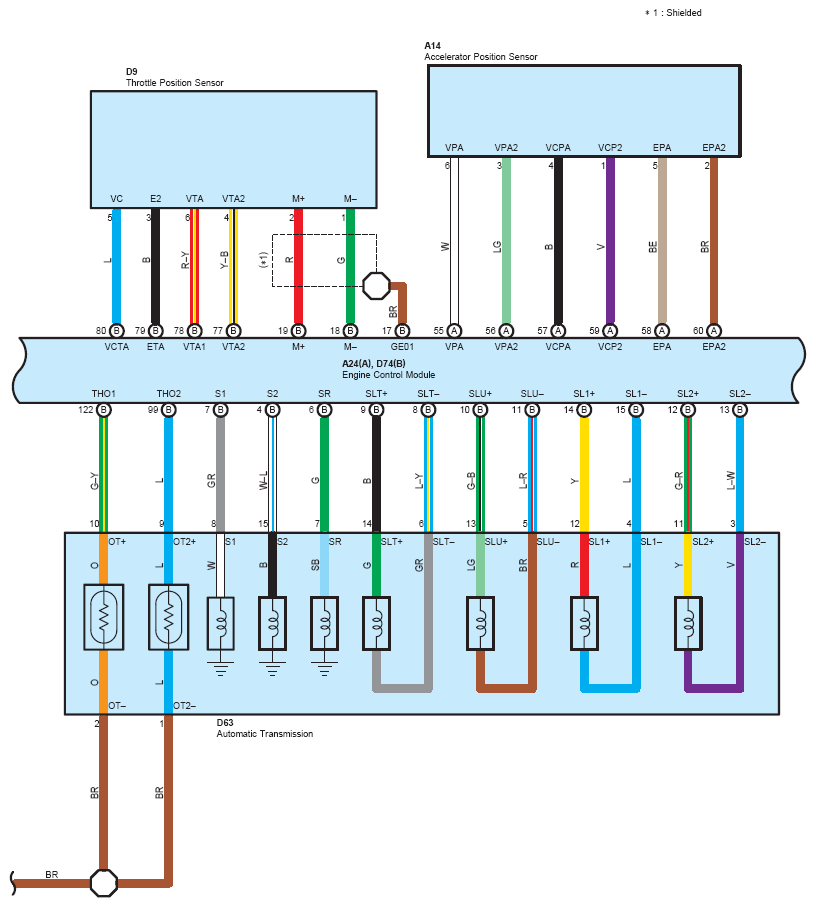

Fig 2: Cruise Control (1GR-FE) System Wiring Diagram (2 Of 7)
G07123645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

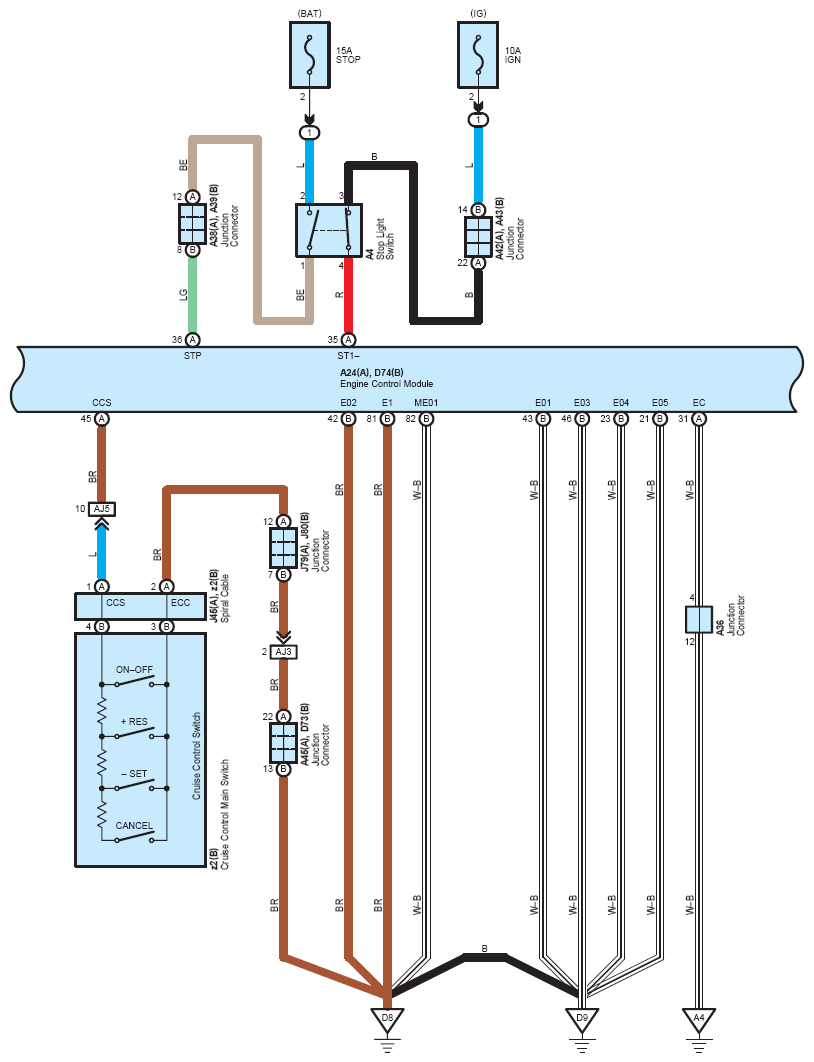

Fig 3: Cruise Control (1GR-FE) System Wiring Diagram (3 Of 7)
G07123646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

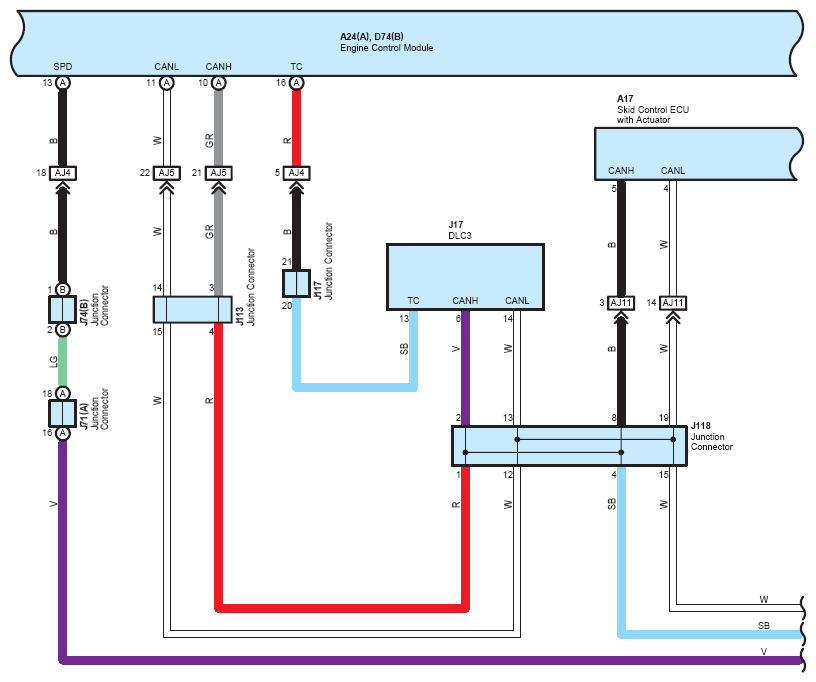

Fig 4: Cruise Control (1GR-FE) System Wiring Diagram (4 Of 7)
G07123647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

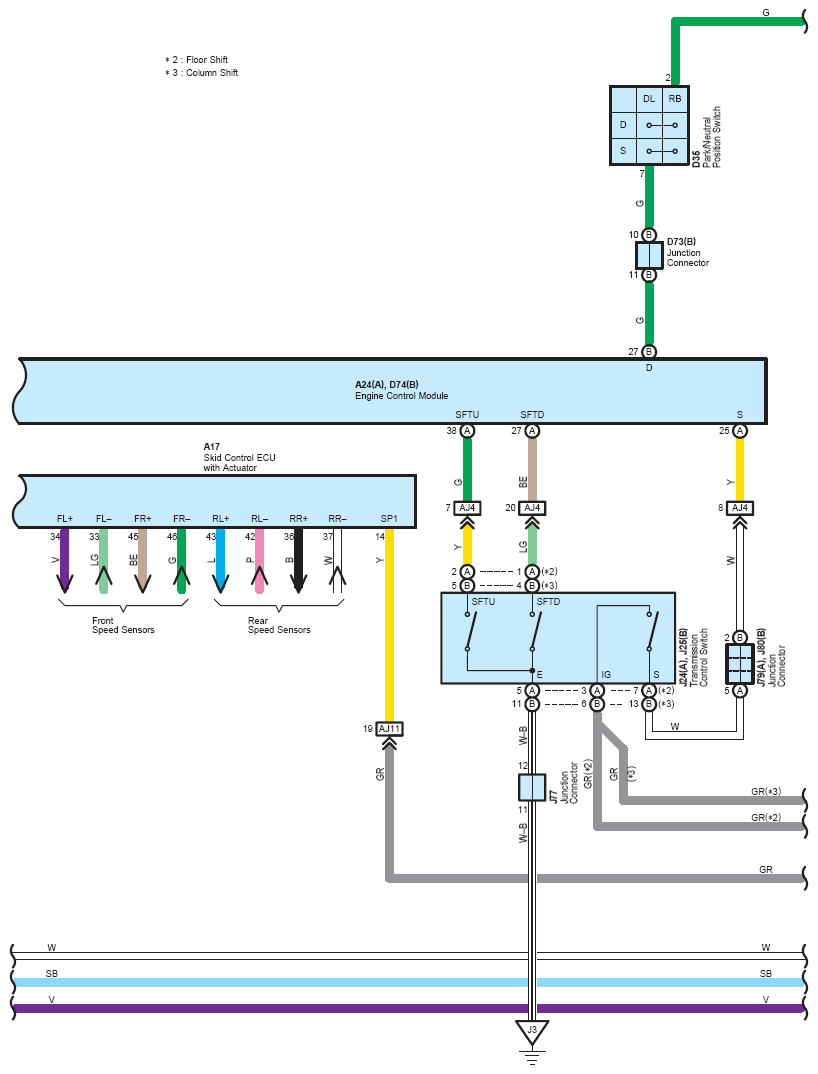

Fig 5: Cruise Control (1GR-FE) System Wiring Diagram (5 Of 7)
G07123648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

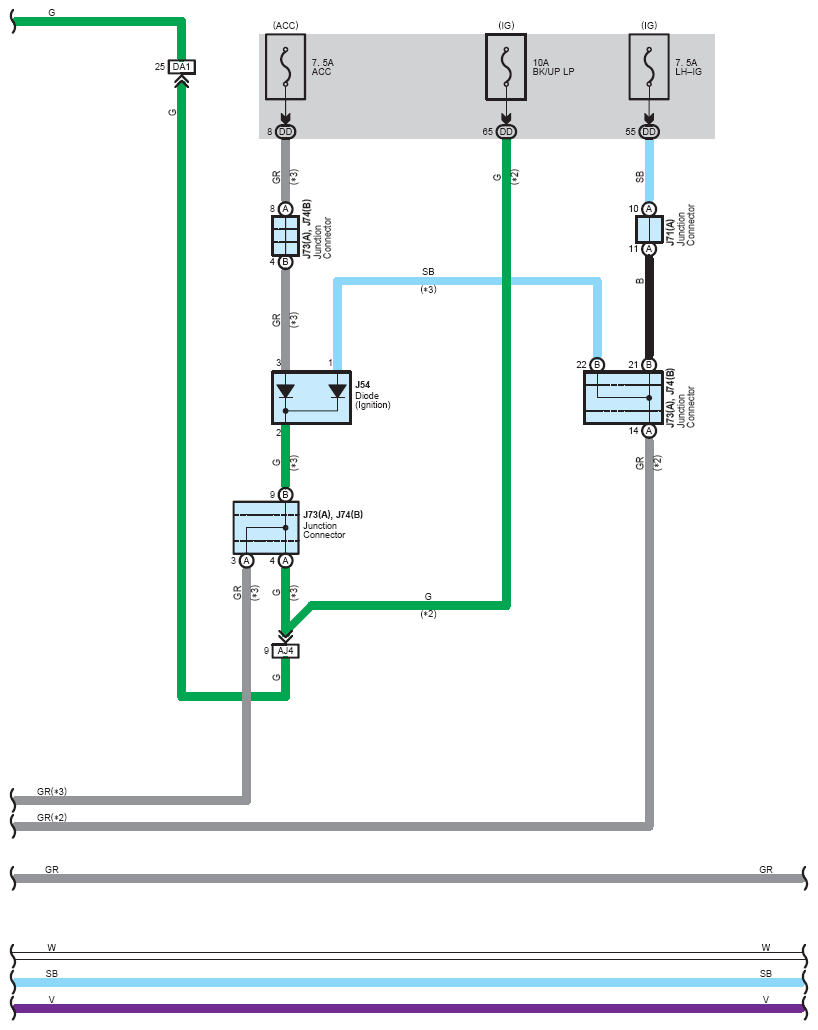

Fig 6: Cruise Control (1GR-FE) System Wiring Diagram (6 Of 7)
G07123649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

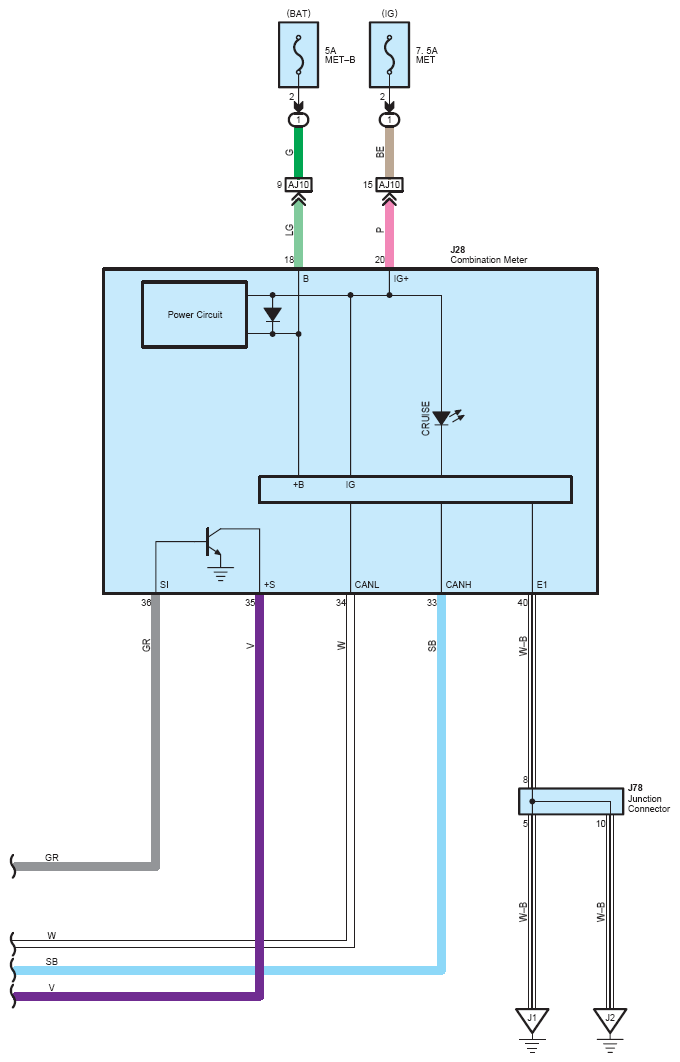

Fig 7: Cruise Control (1GR-FE) System Wiring Diagram (7 Of 7)
G07123650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
