Rear Speed Sensor: Installation: Installation

INSTALL SKID CONTROL SENSOR WIRE
1. Install the sensor clamp with the nut (labeled A).
  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

  NOTE:
  Make sure the clamp's rotation stopper touches the installation position.
2. Install the sensor clamp with the bolt (labeled B).
  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

  NOTE:
  When installing the clamp, do not twist the wire harness.
3. Attach the 7 clips (labeled C).
  NOTE:
  - When installing the clamps, do not twist the wire harness.
  - When installing the clamps, securely insert them as shown in the illustration.
4. Connect the sensor connector (labeled D).
  NOTE:
  Securely connect the connector.

  Fig 1: Identifying Sensor Clamp With Bolt (Labeled D)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SPEED SENSOR LH
1. Install the speed sensor (labeled A) with the nut (labeled B).

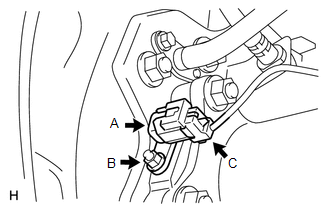

  Fig 2: Identifying Speed Sensor (Labeled A) With Nut (Labeled B)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (107 kgf*cm, 8 ft.*lbf)
2. Connect the speed sensor connector (labeled C).
  NOTE:
  Securely connect the connector.
INSTALL REAR SPEED SENSOR RH
1. Install the speed sensor (labeled A) with the nut (labeled B).

  Fig 3: Installing Speed Sensor (Labeled A) With Nut (Labeled B)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (107 kgf*cm, 8 ft.*lbf)
2. Connect the speed sensor connector (labeled C).
  NOTE:
  Securely connect the connector.
INSTALL REAR WHEEL . Refer to INSTALLATION - Step 4
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SPEED SENSOR SIGNAL
1. Check the speed sensor signal, refer to TEST MODE PROCEDURE .
