Front Speed Sensor: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

  2. REMOVE FRONT WHEEL
  3. REMOVE FRONT SKID CONTROL SENSOR WIRE LH
    1. Disconnect the connector (labeled A) from the front speed sensor.

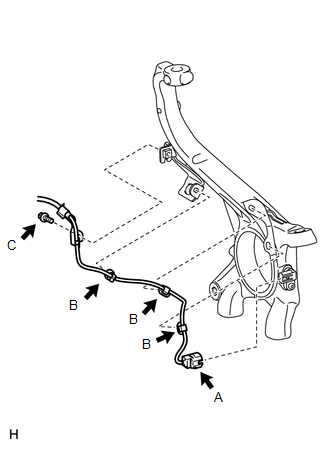

      Fig 1: Locating Clips And Clamp Bolt
      GTY187545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 3 clips (labeled B) and remove the clamp bolt (labeled C).
    3. Disconnect the connector (labeled D).
      Fig 2: Locating Bolts, Harness Clamps And Sensor Wire
      GTY170804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 3 bolts (labeled E), 3 harness clamps (labeled F) and sensor wire.
  4. REMOVE FRONT SPEED SENSOR LH
    Fig 3: Locating Bolt And Skid Control Sensor Clamp On Knuckle
    GTY180218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the hexagon socket head cap bolt (labeled A) and speed sensor (labeled B) from the knuckle.
  5. REMOVE FRONT SKID CONTROL SENSOR CLAMP LH
    1. Remove the bolt (labeled C) and skid control sensor clamp (labeled D) from the knuckle.
  6. REMOVE FRONT SKID CONTROL SENSOR WIRE RH
    1. Disconnect the connector (labeled A) from the front speed sensor.

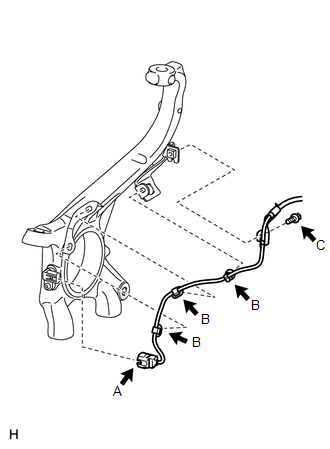

      Fig 4: Identifying Front Speed Sensor Clips And Bolt
      GTY176988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 3 clips (labeled B) and remove the clamp bolt (labeled C).
    3. Disconnect the connector (labeled D).

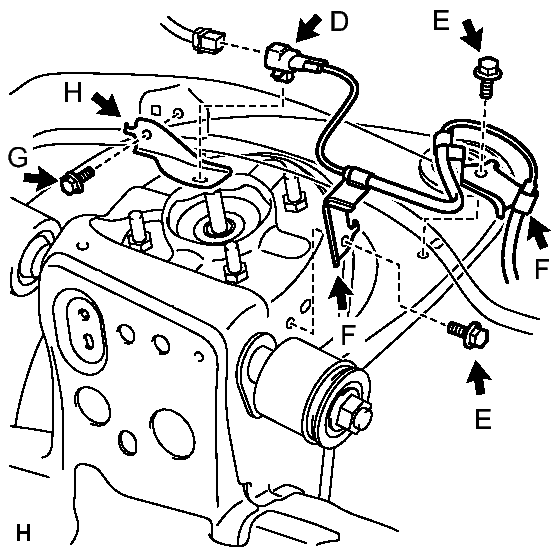

      Fig 5: Locating Bolts And Harness Clamps
      GTY202826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the connector (labeled D) from the skid control sensor clamp (labeled H).
    5. Remove the 2 bolts (labeled E) and 2 harness clamps (labeled F).
    6. Remove the bolt (labeled G) and skid control sensor clamp (labeled H).
  7. REMOVE FRONT SPEED SENSOR RH
    1. Remove the hexagon socket head cap bolt (labeled A) and speed sensor (labeled B) from the knuckle.

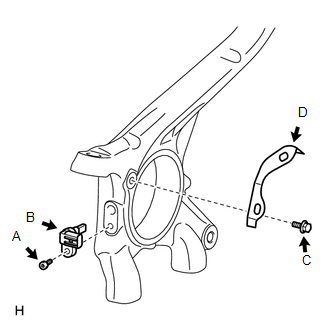

      Fig 6: Identifying Skid Control Sensor Clamp (Labeled A) With Bolt
      GTY202898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT SKID CONTROL SENSOR CLAMP RH
    1. Remove the bolt (labeled C) and skid control sensor clamp (labeled D) from the knuckle.
