Air Injection Driver: Disassembly: Disassembly

  1. REMOVE AIR INJECTION CONTROL DRIVER (for Bank 1)
      Fig 1: Identifying Air Injection Control Driver Bolts (Bank 1)
      GTY147712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts.
      2. Fig 2: Locating Air Injection Control Driver Screws
      GTY147713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and air injection control driver.
  2. REMOVE AIR INJECTION CONTROL DRIVER (for Bank 2)

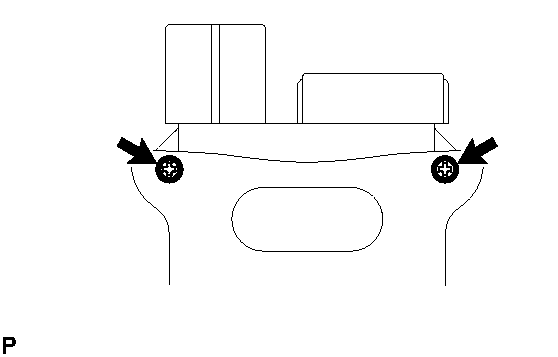

      Fig 3: Identifying Air Injection Control Driver Screws (Bank 2)
      GTY193423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws and air injection control driver.
