Air Injection Driver: Components: Illustration

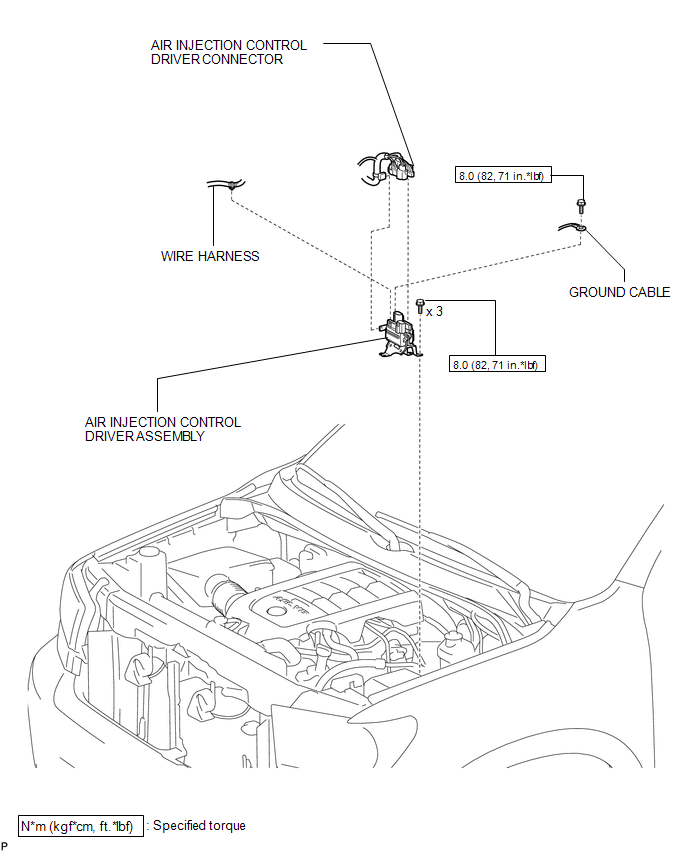

Fig 1: Identifying Air Injection Driver Replacement Components With Torque Specifications (1 Of 2)
GTY167400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

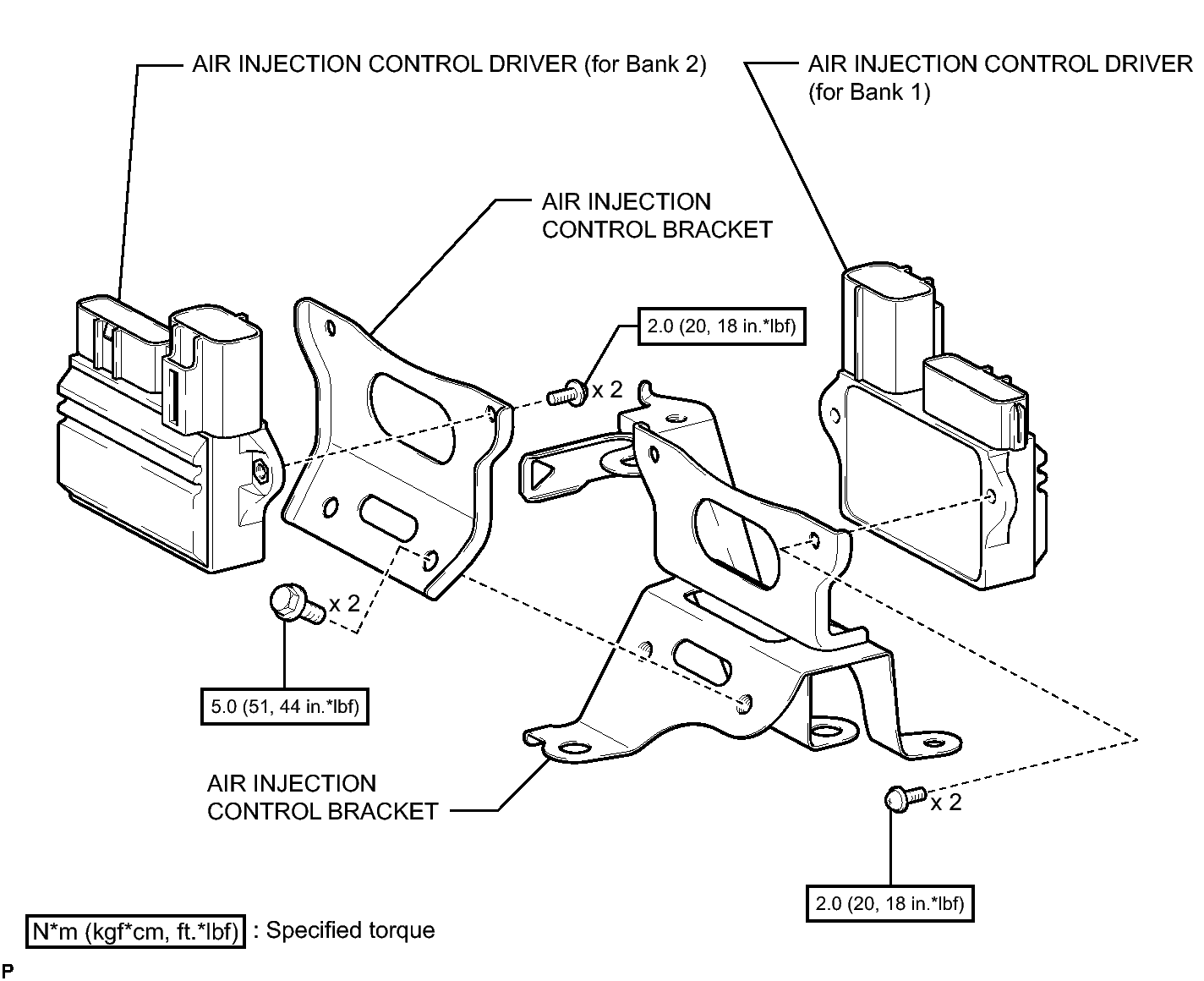

Fig 1: Identifying Air Injection Driver Replacement Components With Torque Specifications (2 Of 2)
GTY193422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
