Ignition (1UR-FE): Notes

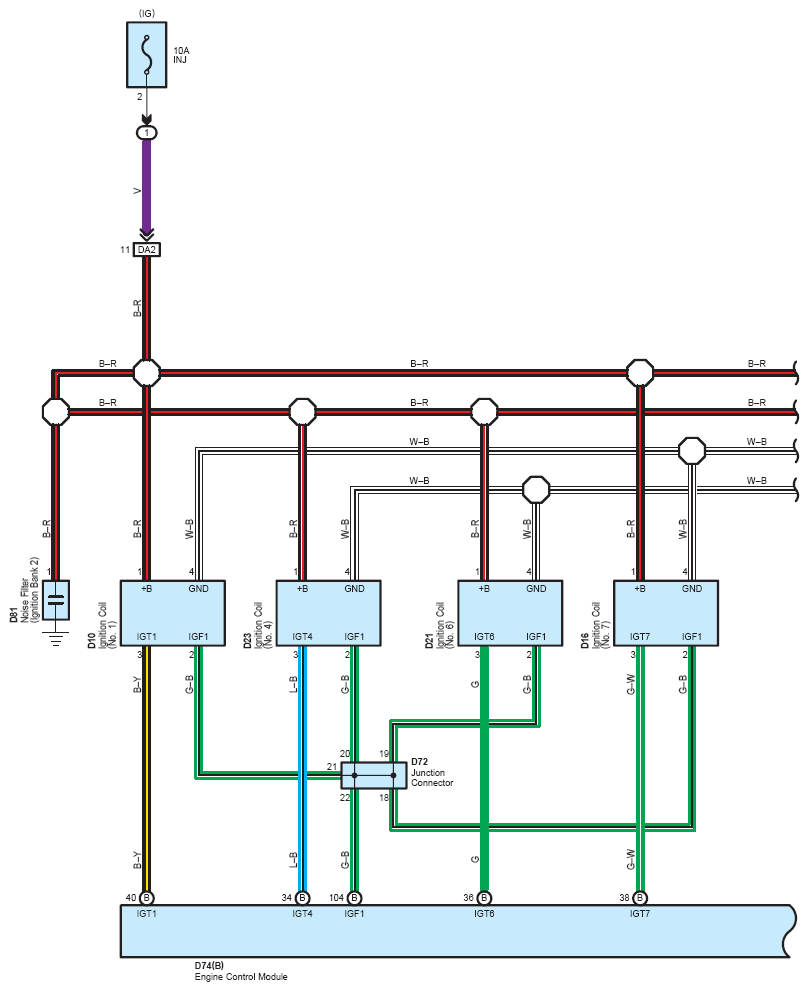

Fig 1: Ignition (1UR-FE) System Wiring Diagram (1 Of 2)
G07123511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

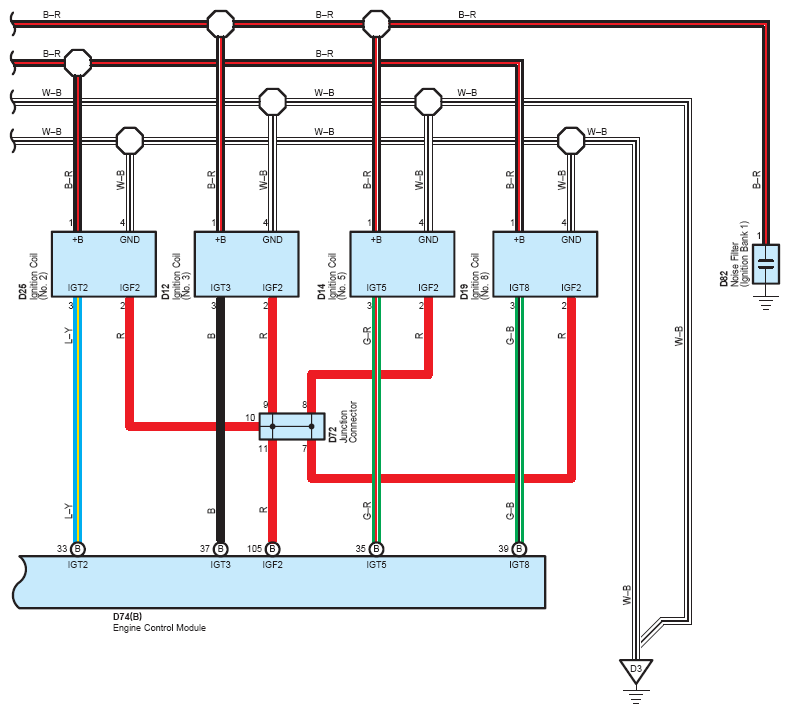

Fig 2: Ignition (1UR-FE) System Wiring Diagram (2 Of 2)
G07123512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
