Brake Actuator: Reassembly: Reassembly

  1. INSTALL BRAKE ACTUATOR BRACKET ASSEMBLY
    1. Using a T30 "TORX" wrench, install the actuator bracket with the 3 screws.

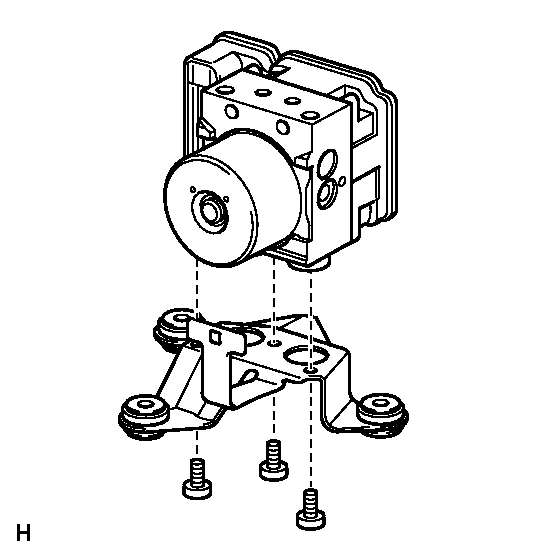

      Fig 1: Identifying Actuator Bracket Screws
      GTY202892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)
