PCV Valve: Installation: Installation

INSTALL PCV VALVE SUB-ASSEMBLY
1. Apply a light coat of engine oil to the O-ring.

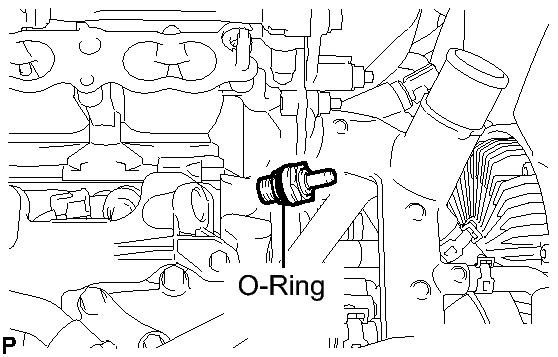

  Fig 1: Identifying PCV VALVE O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - When reusing the PCV valve, inspect the O-ring.
  - If the O-ring has scratches or cuts, replace the PCV valve.
2. Install the PCV valve.
  Torque: 3.5 N*m (36 kgf*cm, 31 in.*lbf)
CONNECT PCV VALVE HOSE

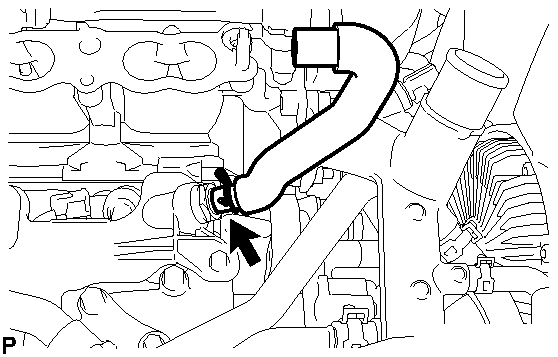

Fig 2: Identifying PCV Valve Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

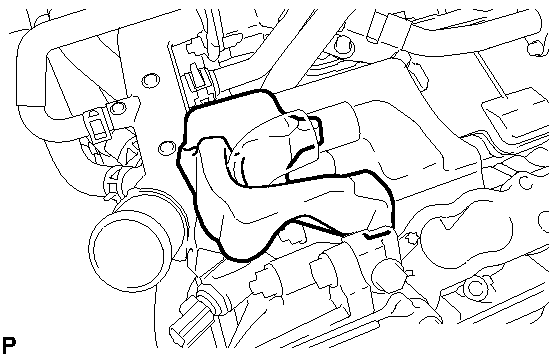

INSTALL NO. 3 ENGINE COVER
1. Install the No. 3 engine cover.

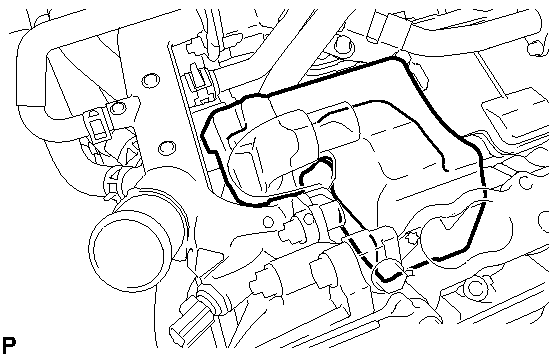

INSTALL NO. 4 ENGINE COVER
1. Install the No. 4 engine cover.
INSTALL INTAKE MANIFOLD
1. Install the intake manifold, refer to INSTALLATION .
