Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustrations.

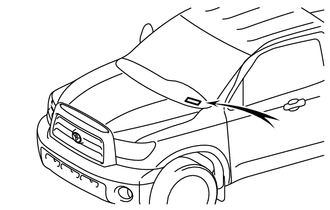

  1. Vehicle Identification Number Plate

    Fig 1: Identifying Vehicle Identification Number Plate
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Certification Label

    Fig 2: Identifying Vehicle Certification Label (Regular Cab)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Fig 3: Identifying Vehicle Identification Number Plate For Double Cab, Crew Max
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Frame Number

    Fig 4: Frame Number Location
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustrations.

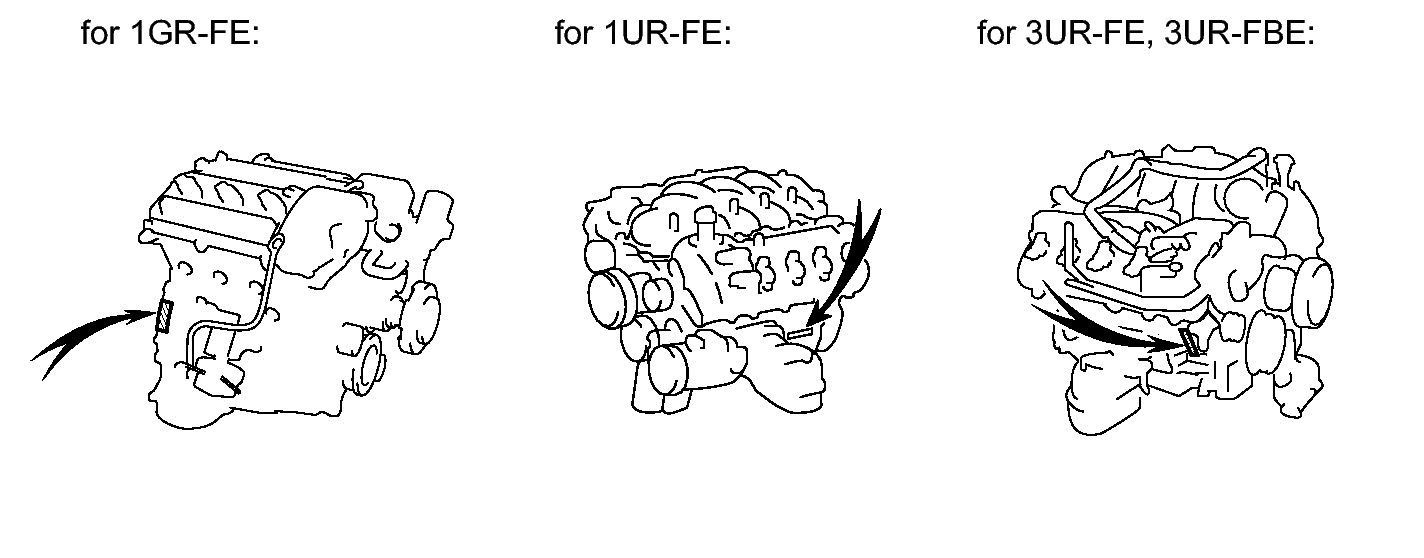

  1. Engine Serial Number

    Fig 5: Engine Serial Number Location
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Transmission Serial Number

    Fig 6: Transmission Serial Number Location
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
