Home >> Toyota >> 2011 >> Tundra Base, 4.0 U >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> SRS >> Notes

OEM System Circuits: SRS: Notes

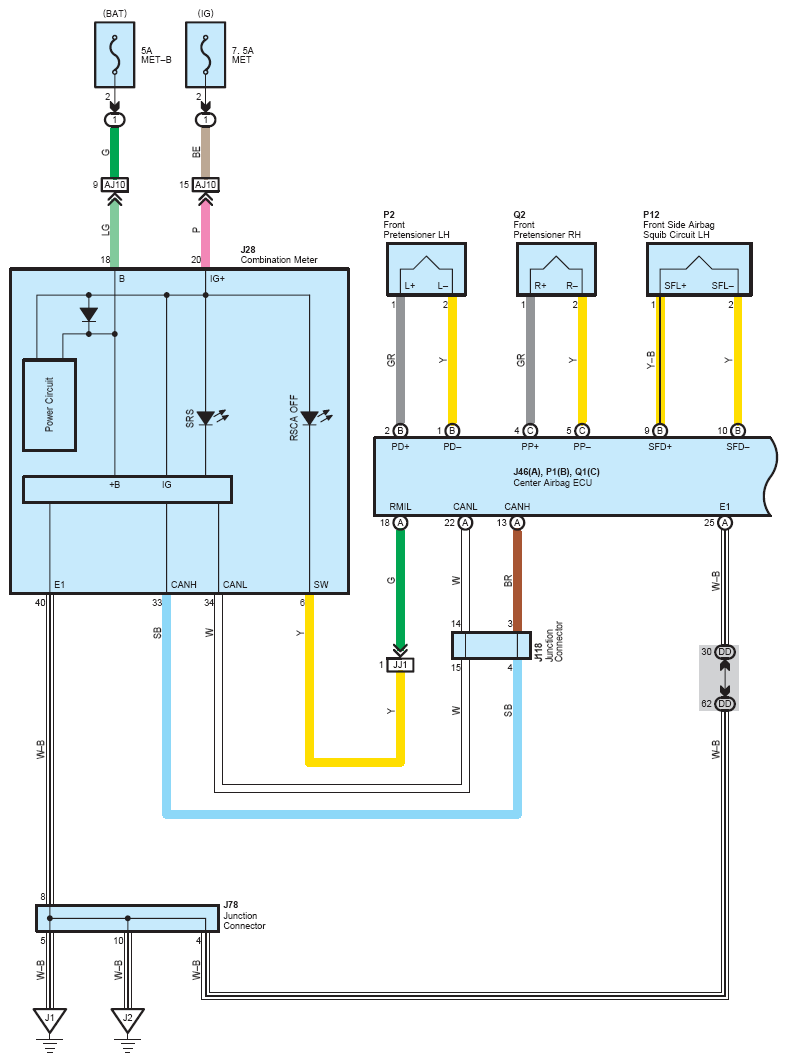

Fig 1: SRS System Wiring Diagram (1 Of 5)
G07123651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

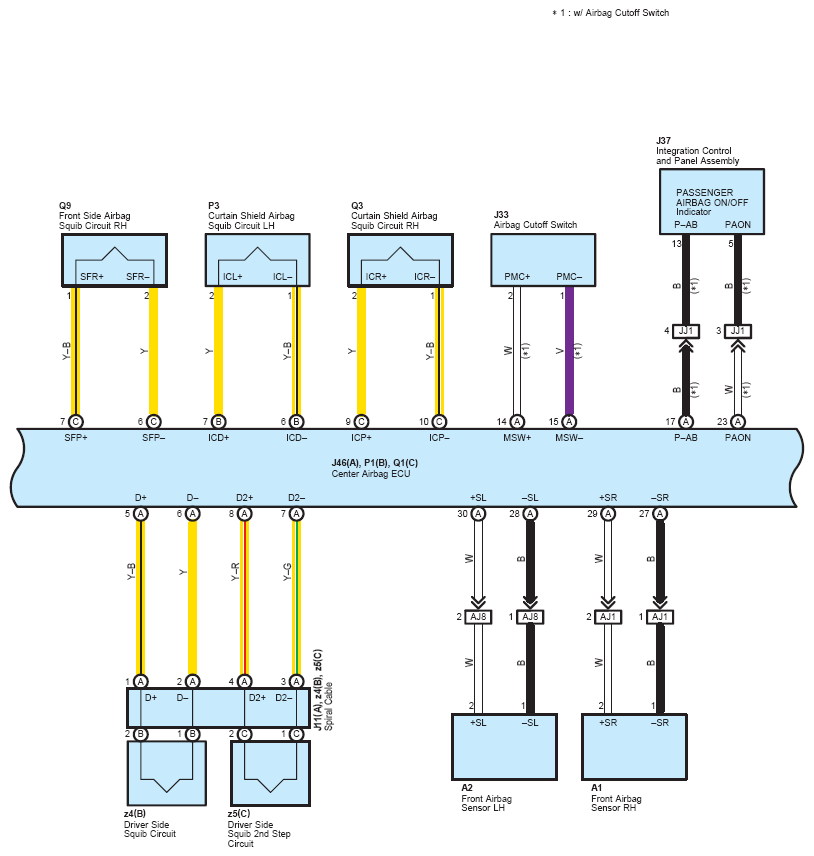

Fig 2: SRS System Wiring Diagram (2 Of 5)
G07123652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

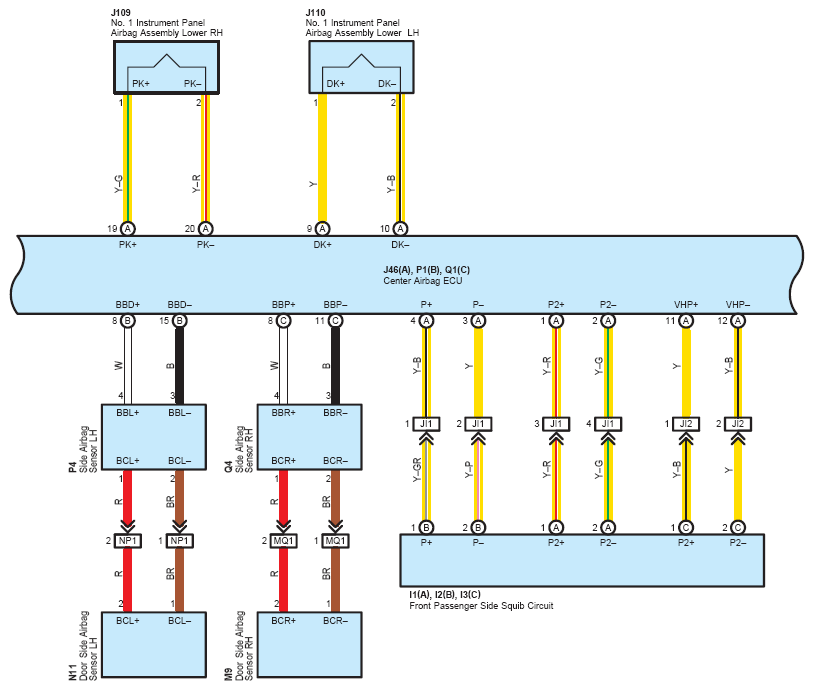

Fig 3: SRS System Wiring Diagram (3 Of 5)
G07123653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

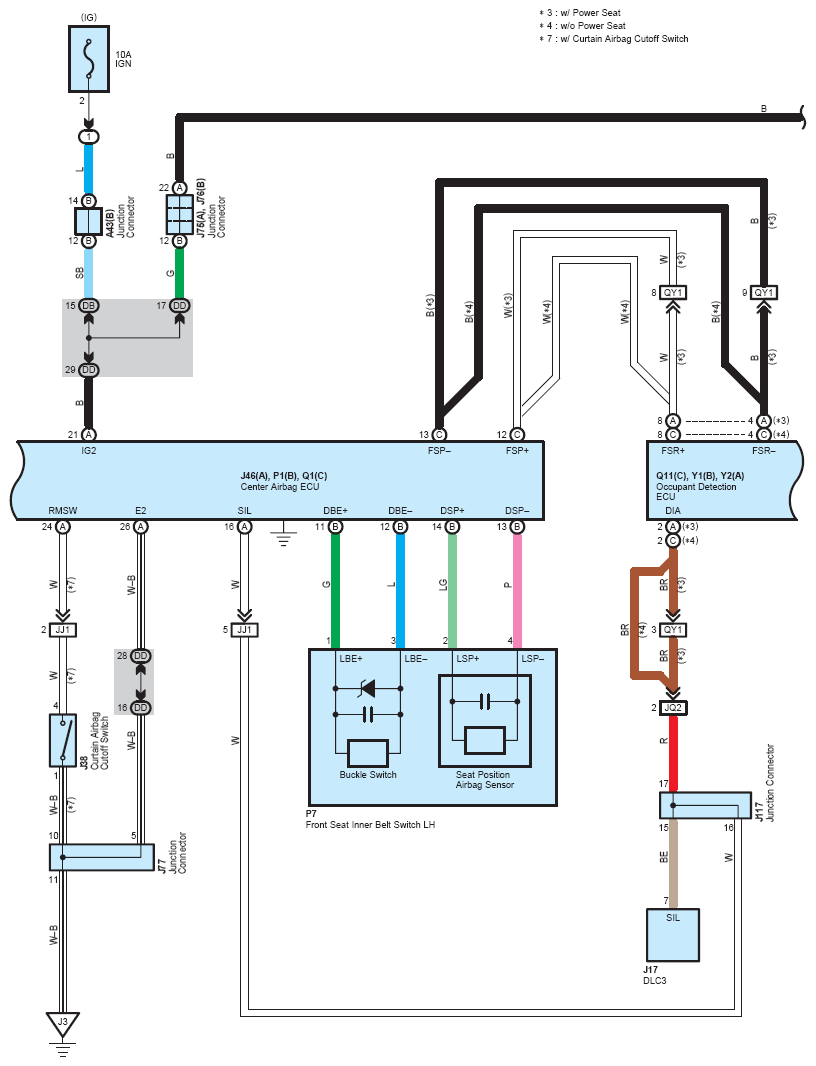

Fig 4: SRS System Wiring Diagram (4 Of 5)
G07123654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

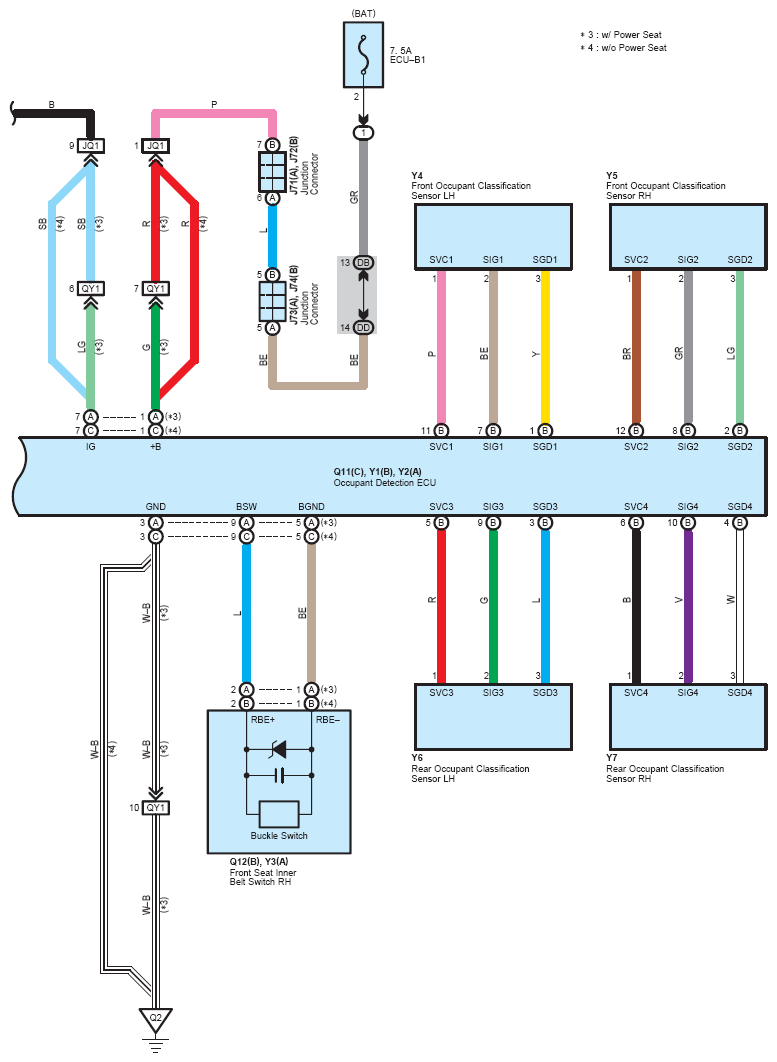

Fig 5: SRS System Wiring Diagram (5 Of 5)
G07123655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
