Cargo Light: Notes

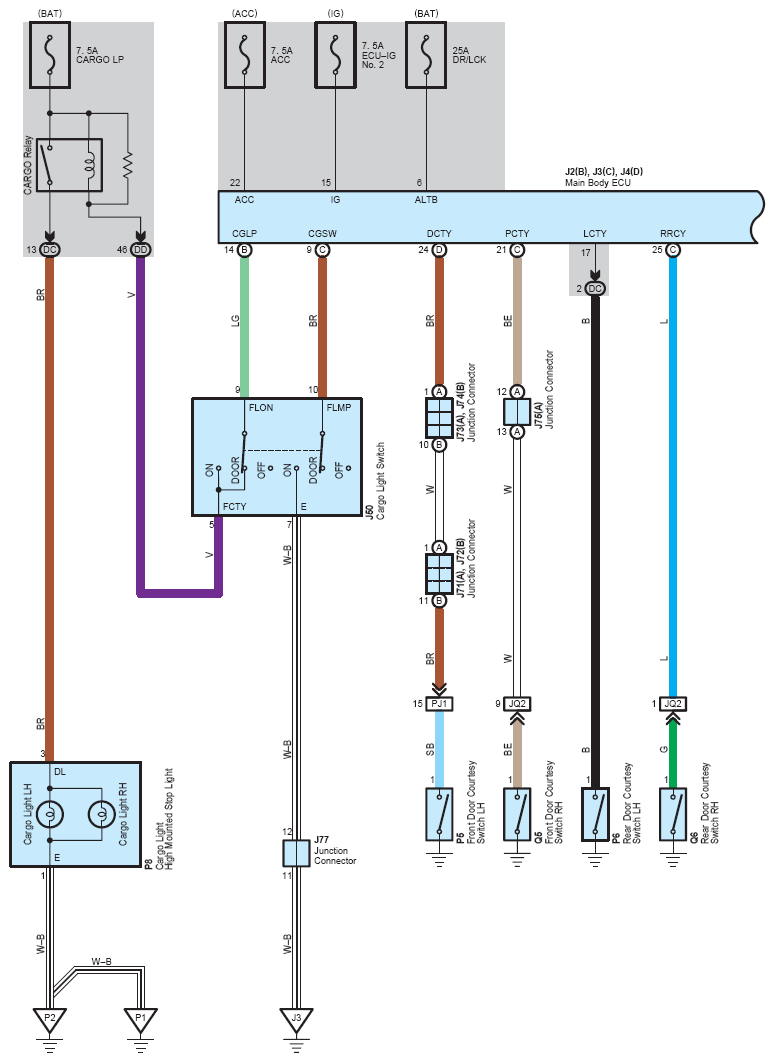

Fig 1: Cargo Light System Wiring Diagram (1 Of 3)
G07123598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Cargo Light System Wiring Diagram (2 Of 3)
G07123599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Cargo Light System Wiring Diagram (3 Of 3)
G07123600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
