Automatic Glare-Resistant EC Mirror: Notes

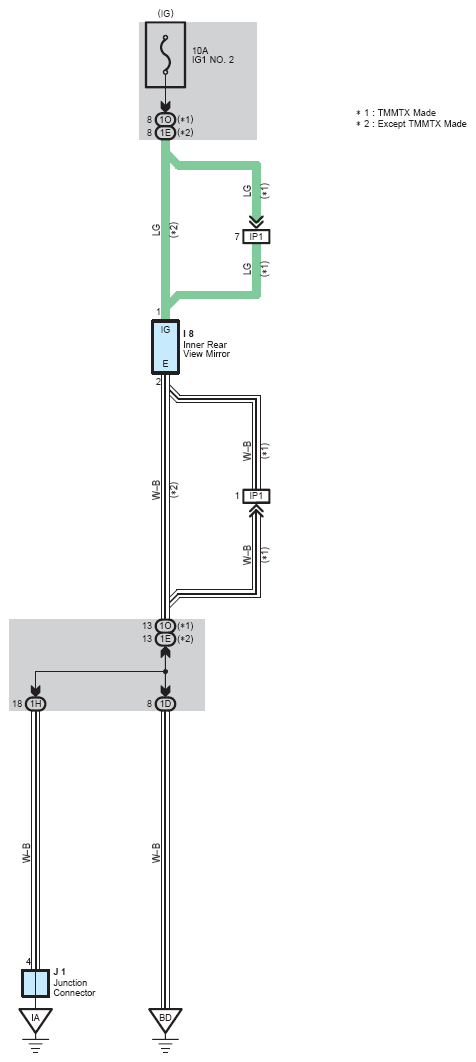

Fig 1: Automatic Glare-Resistant EC Mirror System Wiring Diagram

G07117299

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
