Power Management Control Ecu: Installation: Installation
- INSTALL POWER MANAGEMENT CONTROL ECU

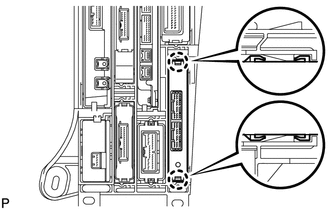

- Engage the 2 claws and install the power management control ECU.
- INSTALL ECU INTEGRATION BOX RH . Refer to INSTALLATION - Step 2
- INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY . Refer to INSTALLATION - Step 24
- INSTALL COWL SIDE TRIM BOARD RH . Refer to INSTALLATION - Step 35
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
- INSTALL DOOR SCUFF PLATE ASSEMBLY RH . Refer to INSTALLATION - Step 37
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
