Emission Control System (2GR-FE) (Service Information): Canister: Installation: Installation

INSTALL CHARCOAL CANISTER ASSEMBLY
1. Engage the hook.
2. Install the charcoal canister assembly with the 3 bolts and clip.
  Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)
3. Connect the fuel emission hose and connector.
CONNECT CHARCOAL CANISTER OUTLET TUBE SUB-ASSEMBLY
1. Connect the charcoal canister outlet tube. Refer to PRECAUTION .

  Fig 1: Connecting Charcoal Canister Outlet Tube Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Check that there are no scratches or foreign objects on the connecting part.
  - Check that the charcoal canister outlet tube is inserted securely.
  - Check that the charcoal canister outlet tube is securely connected by pulling on it.
CONNECT FUEL TANK VENT HOSE
1. Connect the fuel tank vent hose and lock it by pushing in the retainer as shown in the illustration.

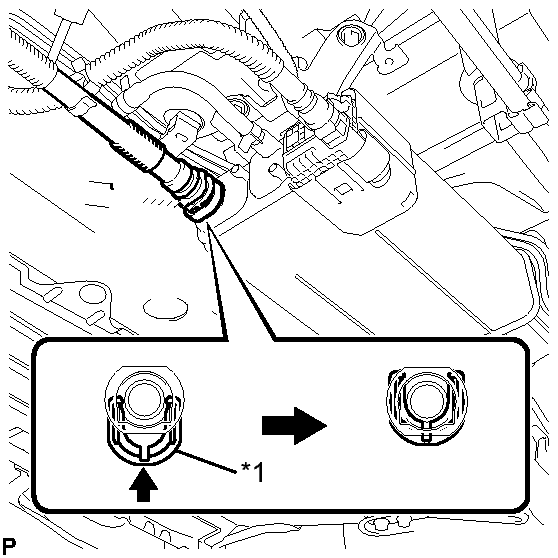

  Fig 2: Connecting Fuel Tank Vent Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Retainer
  NOTE:
  - Check that there are no scratches or foreign objects on the connecting part.
  - Check that the fuel tank vent hose is inserted securely.
  - After installing the retainer, check that the fuel tank vent hose is securely connected by pulling on it.
  HINT:
  - Insert the inlet tube until a "click" sound is heard.
  - The quick connector cannot be locked when the tube is not inserted securely.
INSTALL CHARCOAL CANISTER PROTECTOR
1. Engage the 4 claws.
2. Install the charcoal canister protector with the 6 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
