Starting (w/o Smart Key System): Notes

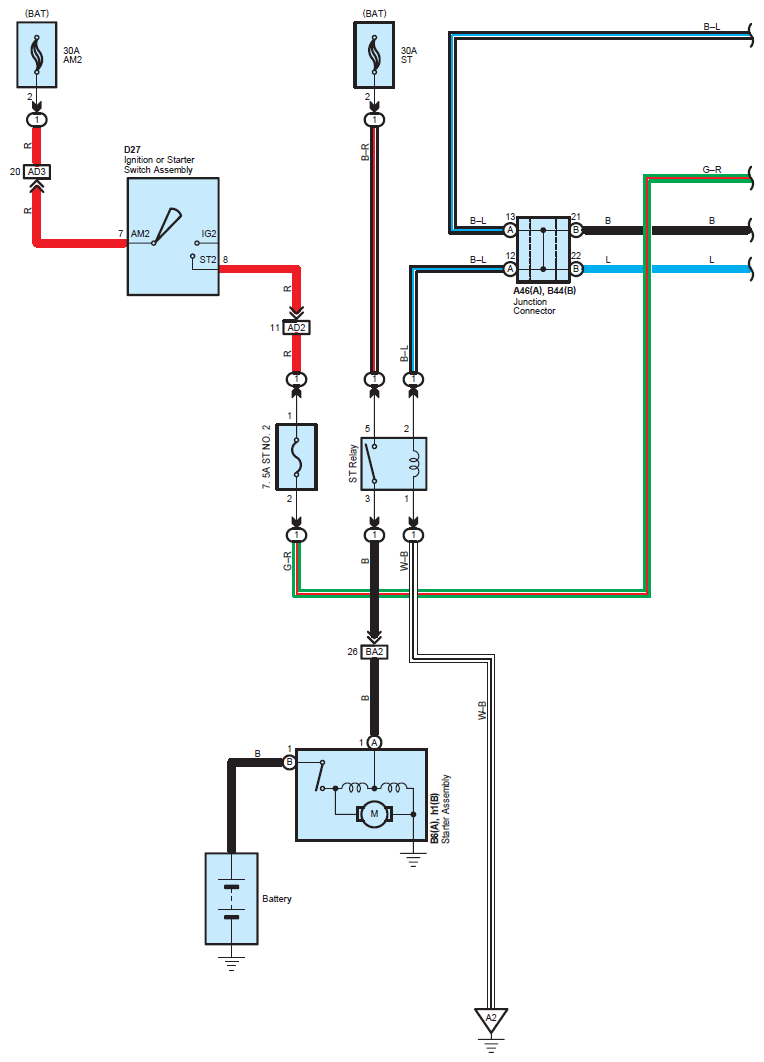

Fig 1: Starting (w/o Smart Key System) Wiring Diagram (1 Of 2)
G07112843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

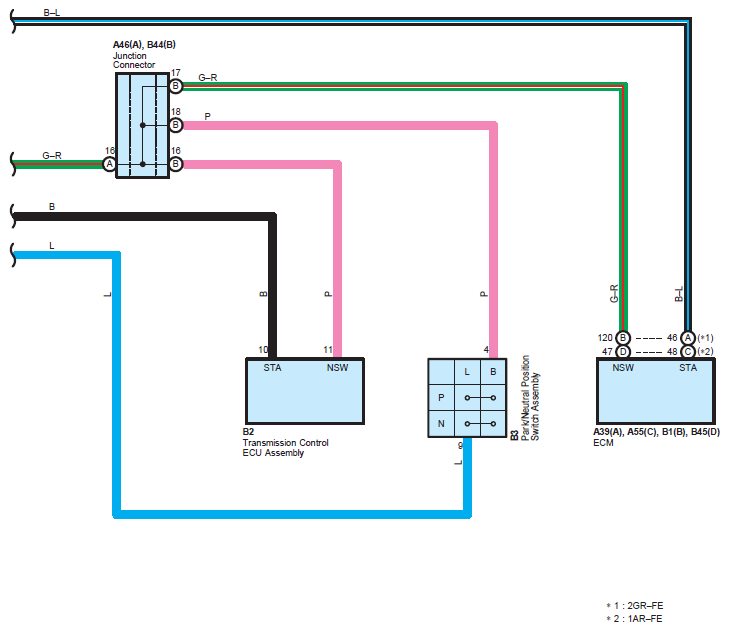

Fig 2: Starting (w/o Smart Key System) Wiring Diagram (2 Of 2)
G07112844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
