Remote Control Mirror (w/o Seat Position Memory): Notes

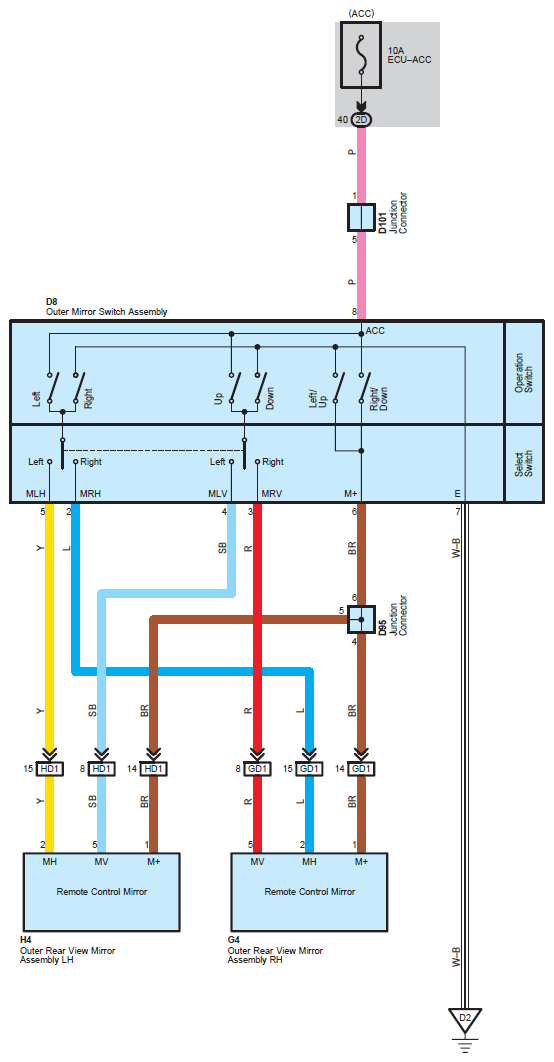

Fig 1: Remote Control Mirror (w/o Seat Position Memory) Wiring Diagram

G07112982

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
