Audio System (w/o Navigation System): Notes

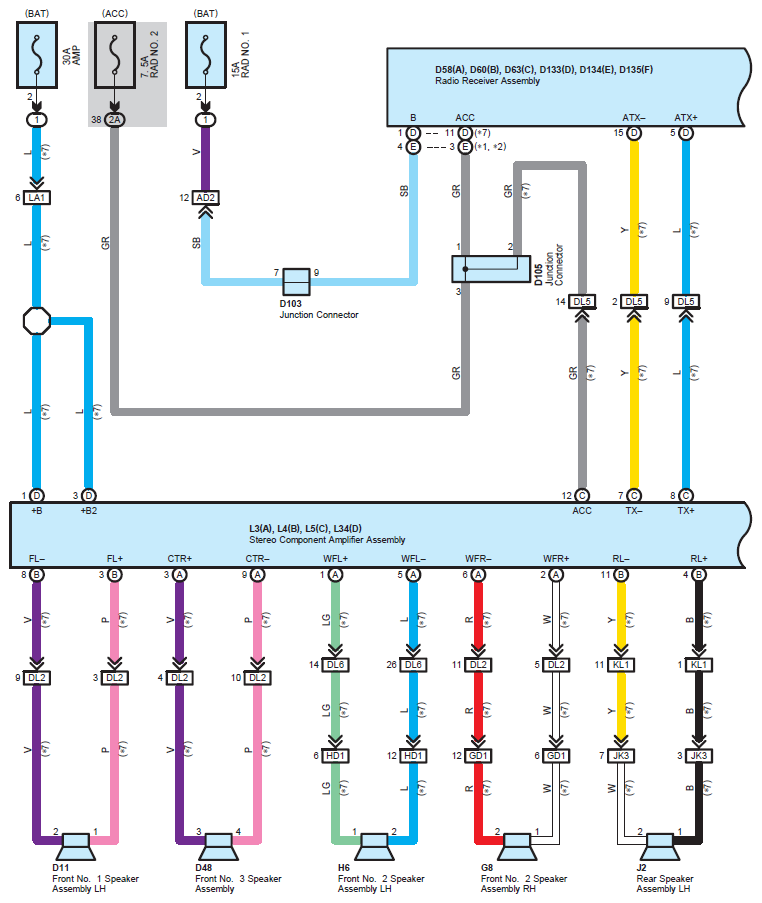

Fig 1: Audio System (w/o Navigation System) Wiring Diagram (1 Of 12)
G07113132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

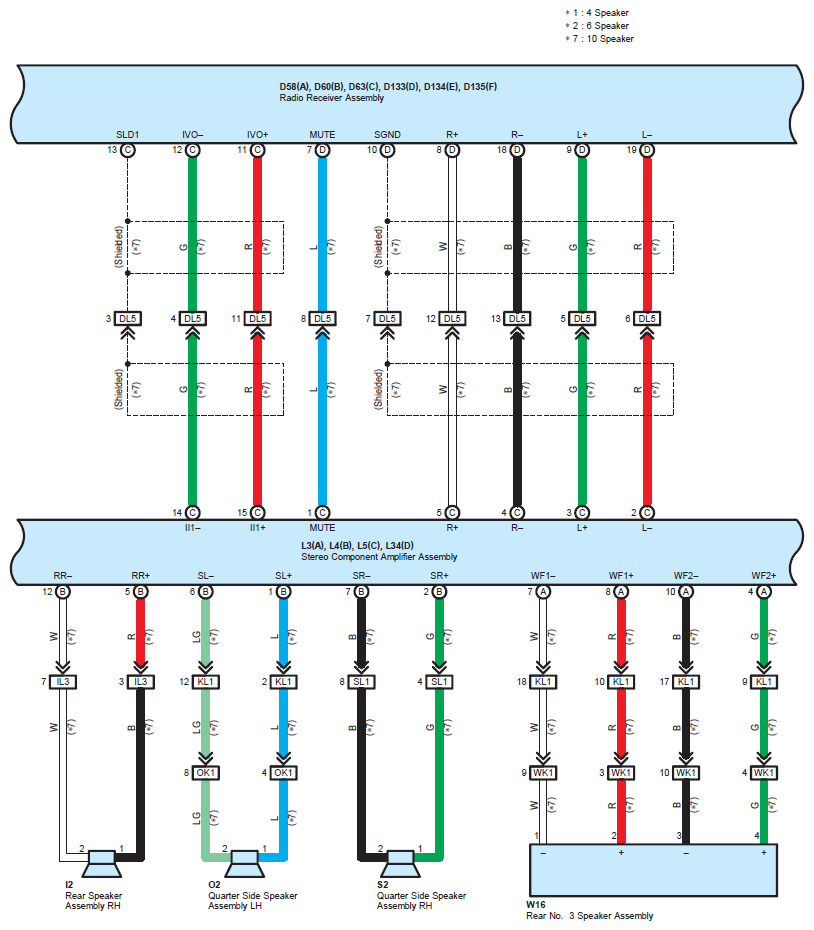

Fig 2: Audio System (w/o Navigation System) Wiring Diagram (2 Of 12)
G07113133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

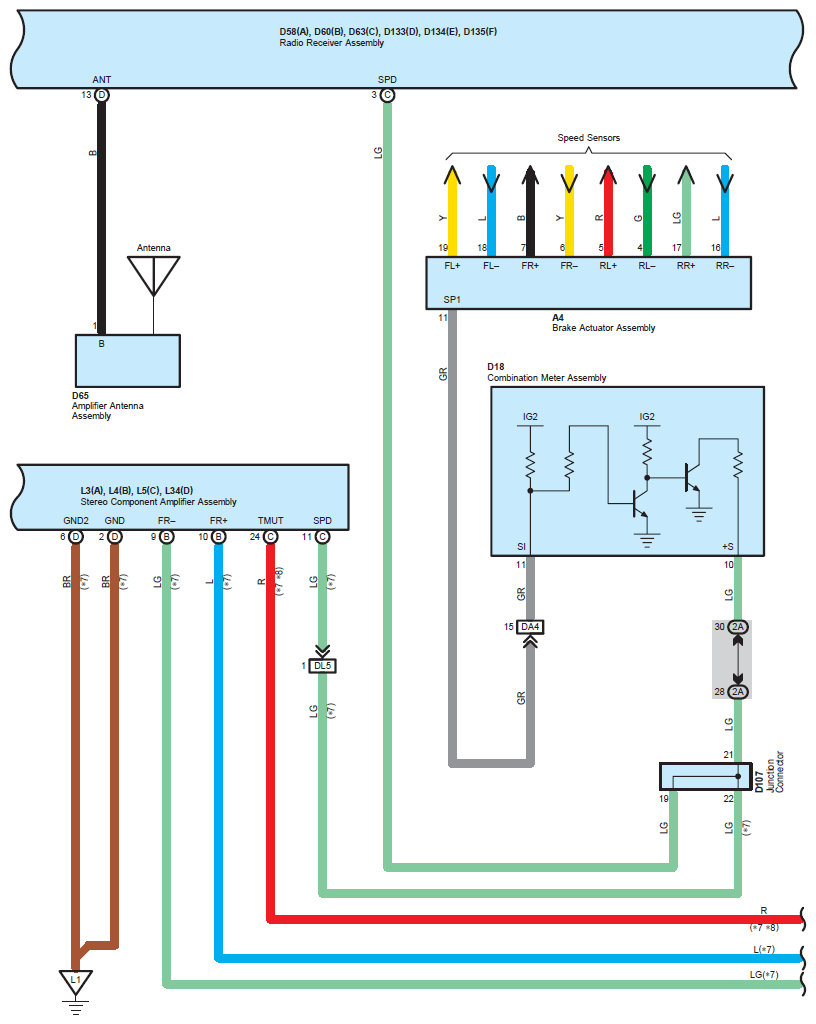

Fig 3: Audio System (w/o Navigation System) Wiring Diagram (3 Of 12)
G07113134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

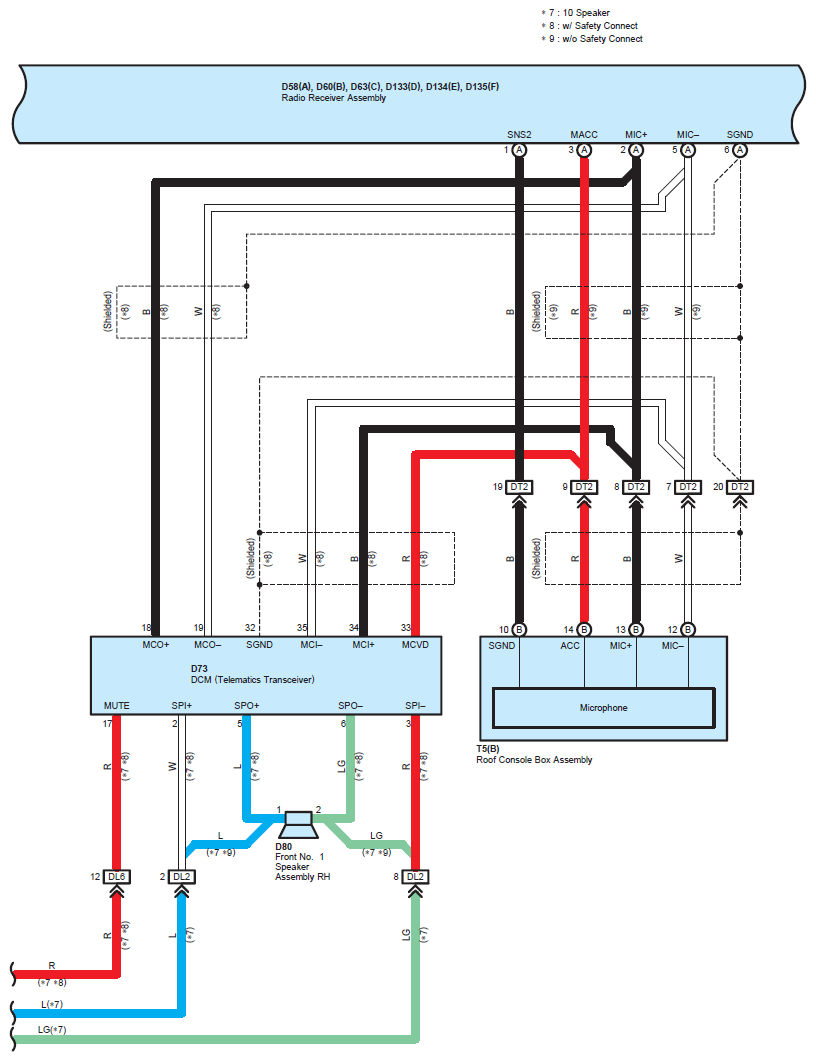

Fig 4: Audio System (w/o Navigation System) Wiring Diagram (4 Of 12)
G07113135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

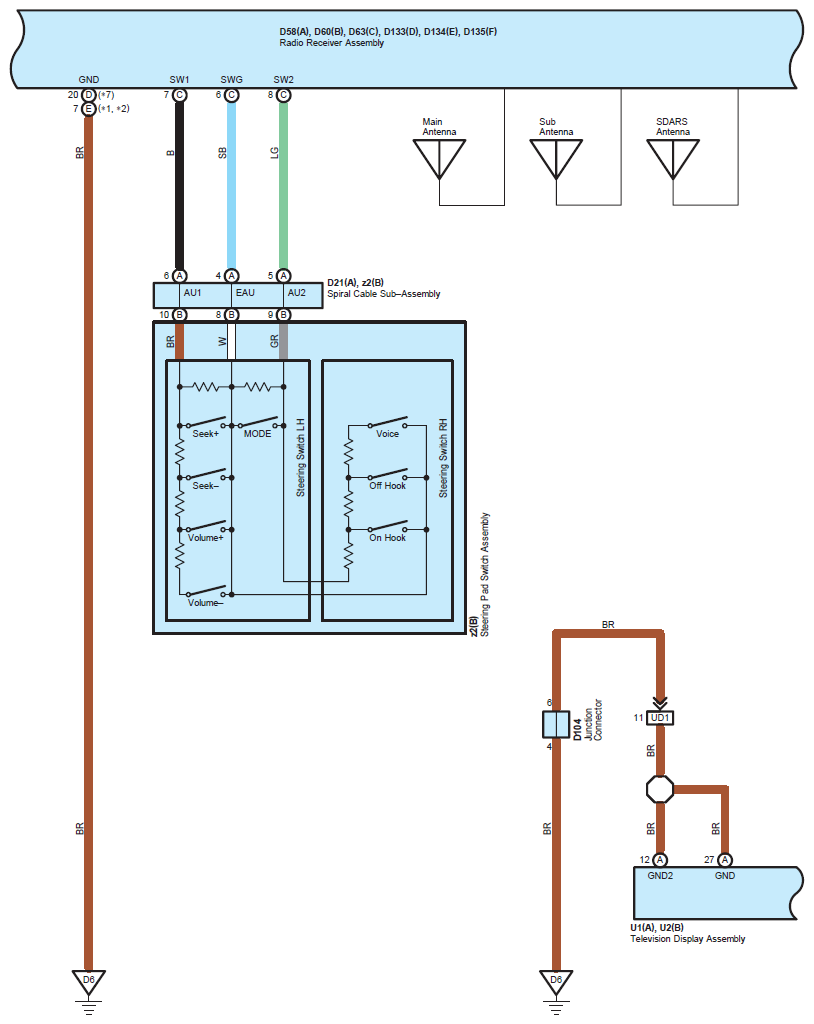

Fig 5: Audio System (w/o Navigation System) Wiring Diagram (5 Of 12)
G07113136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

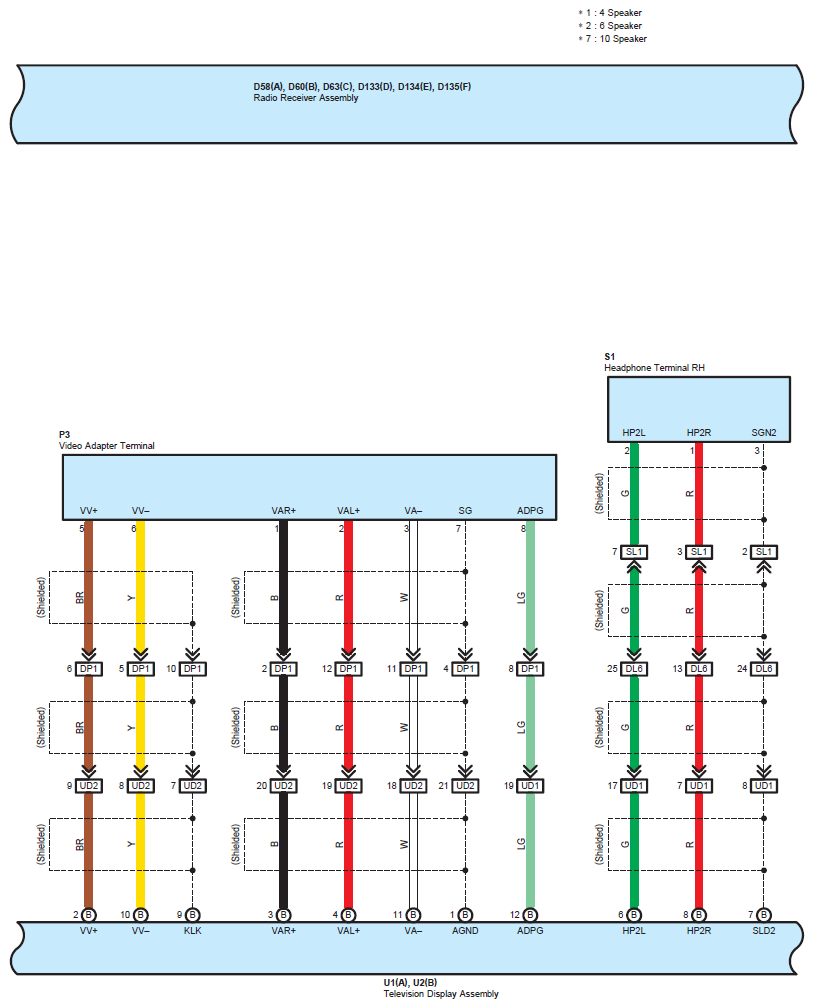

Fig 6: Audio System (w/o Navigation System) Wiring Diagram (6 Of 12)
G07113137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

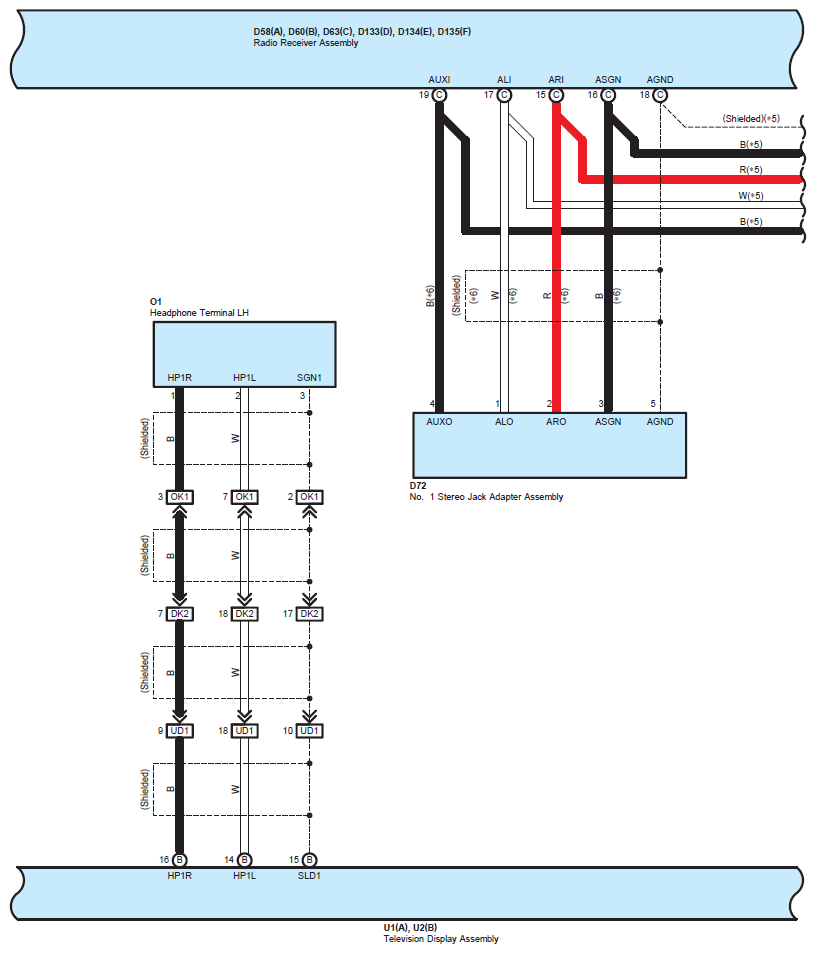

Fig 7: Audio System (w/o Navigation System) Wiring Diagram (7 Of 12)
G07113138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

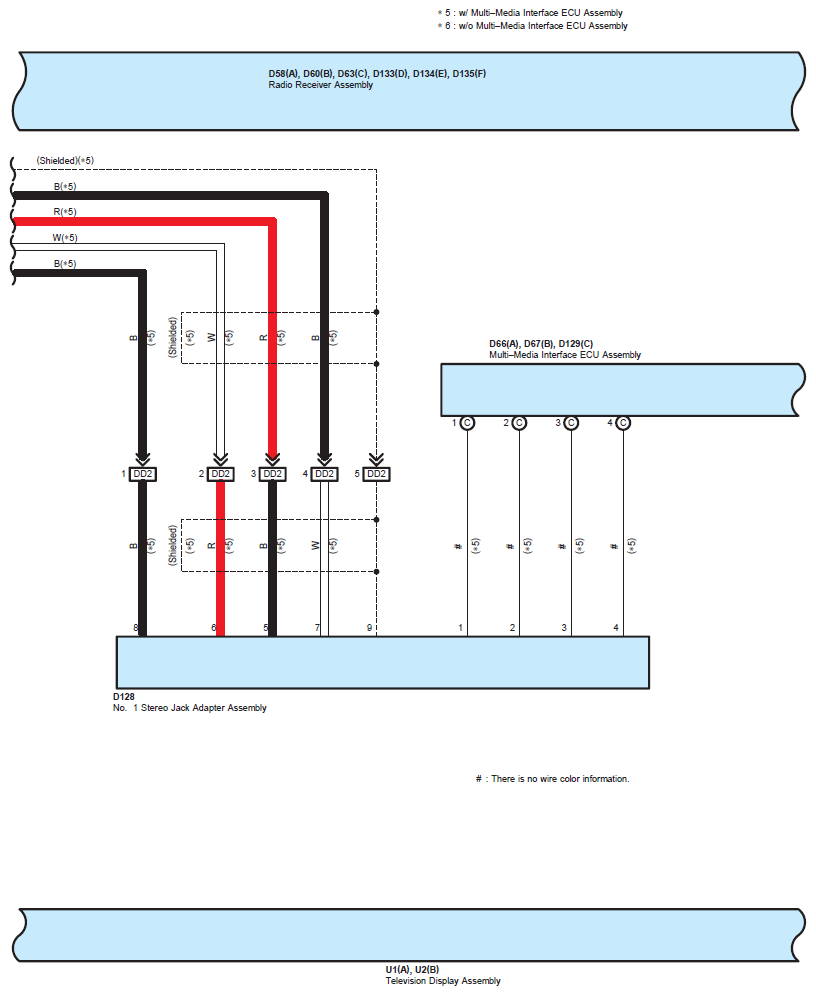

Fig 8: Audio System (w/o Navigation System) Wiring Diagram (8 Of 12)
G07113139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

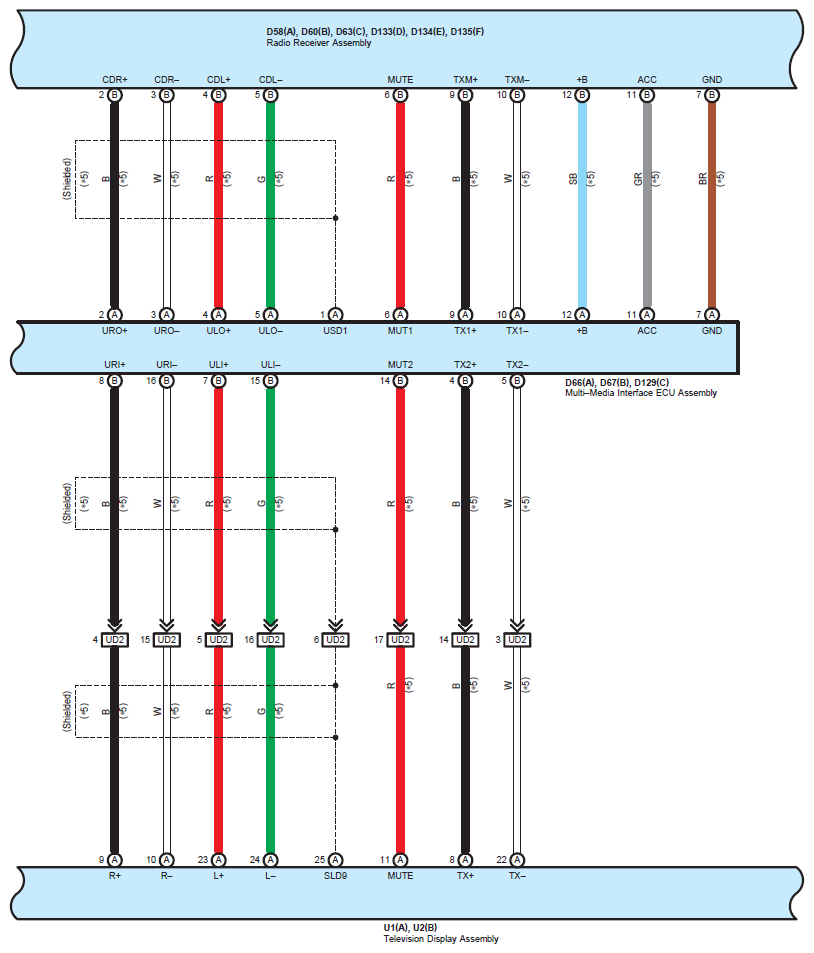

Fig 9: Audio System (w/o Navigation System) Wiring Diagram (9 Of 12)
G07113140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

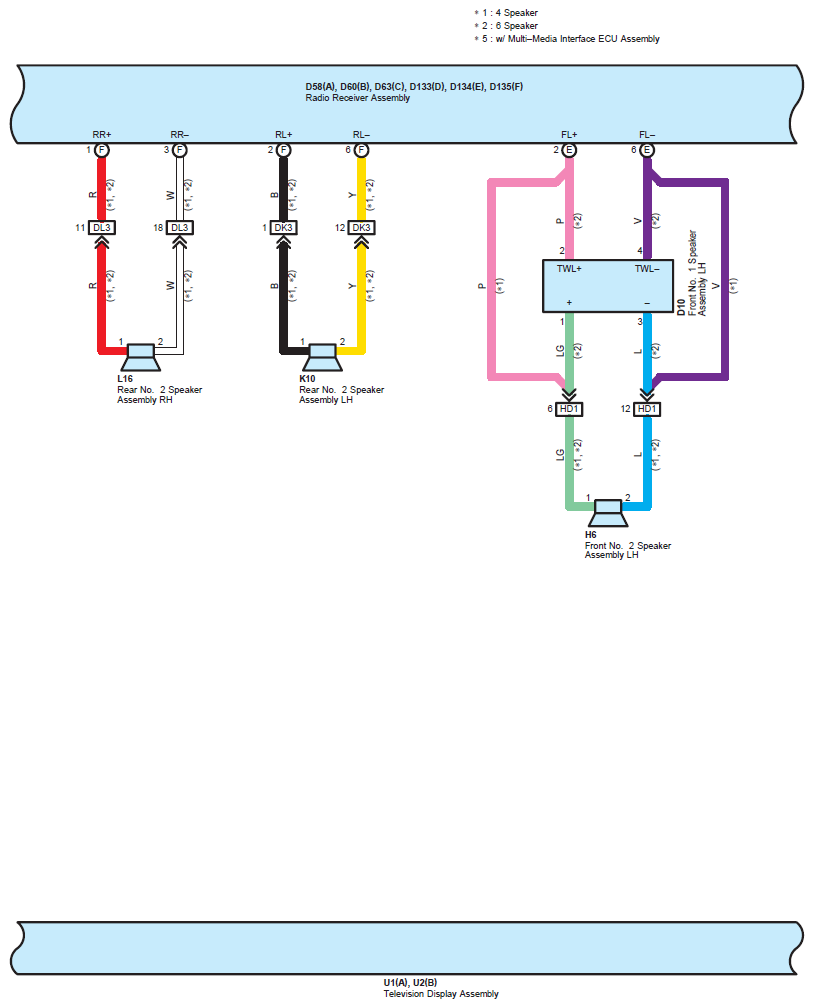

Fig 10: Audio System (w/o Navigation System) Wiring Diagram (10 Of 12)
G07113141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

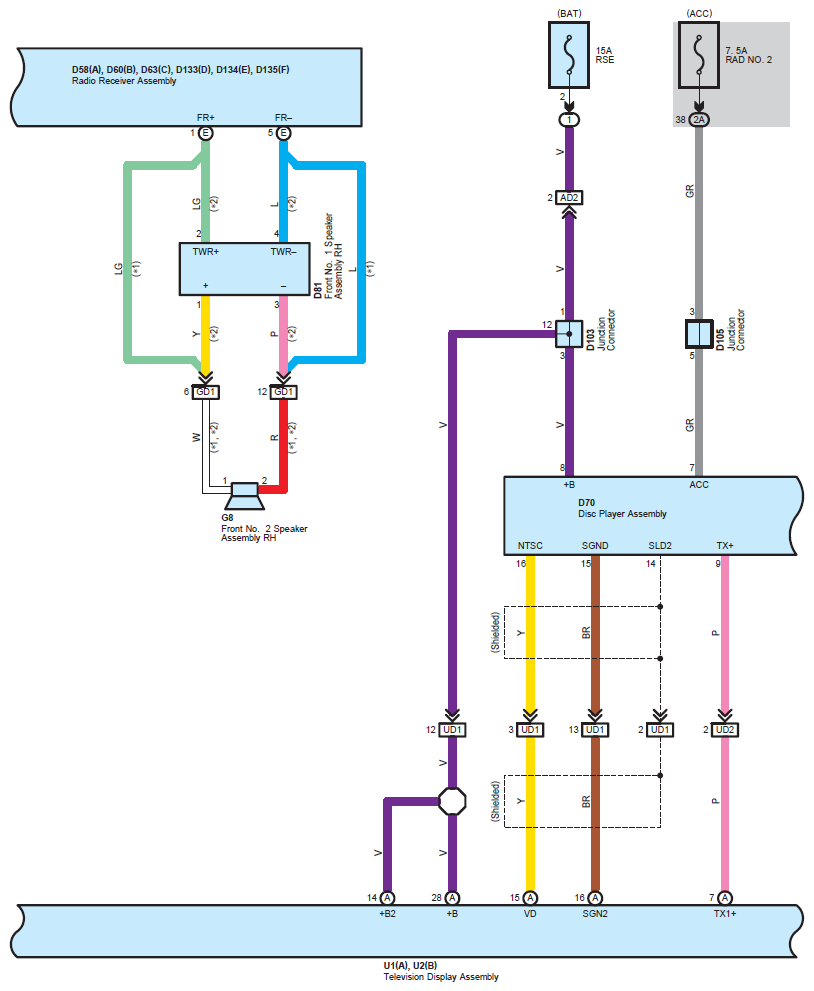

Fig 11: Audio System (w/o Navigation System) Wiring Diagram (11 Of 12)
G07113142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

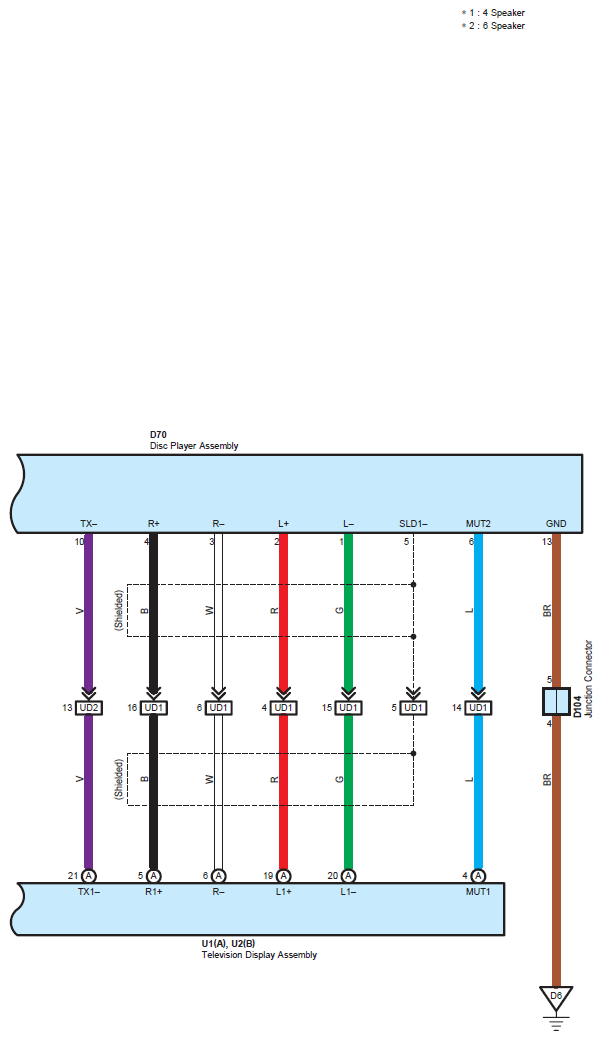

Fig 12: Audio System (w/o Navigation System) Wiring Diagram (12 Of 12)
G07113143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
