Power Window Master Switch: Inspection: Inspection
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
- Check that the LED illuminates.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Apply battery voltage to the multiplex network master switch and check that the LED illuminates.
OK

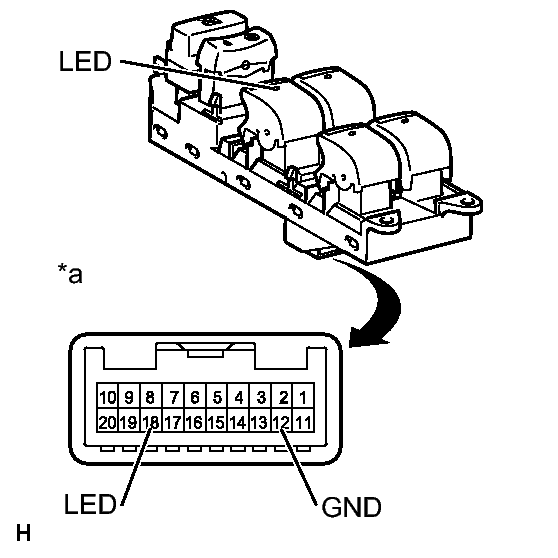

Measurement Condition Specified Condition Battery positive (+) → 18 (LED)
Battery negative (-) → 12 (GND)LED illuminates TEXT IN ILLUSTRATION*a Component without harness connected
(to Multiplex Network Master Switch Assembly)If the result is not as specified, replace the multiplex network master switch.
