Trailer Towing: Notes

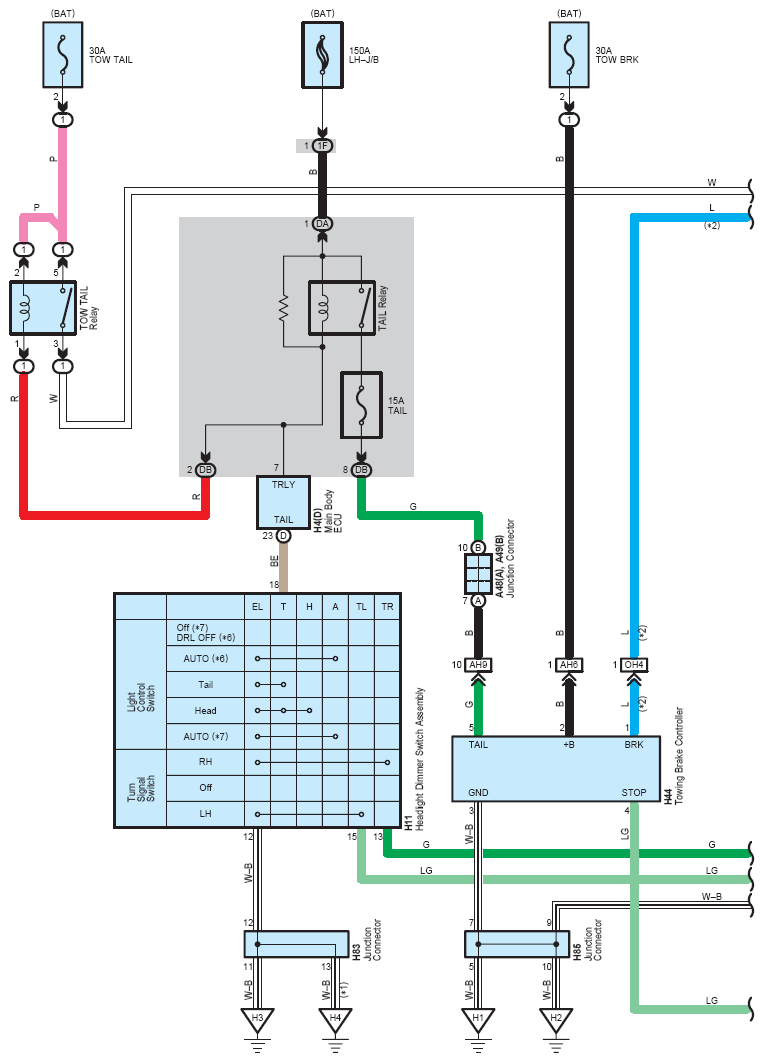

Fig 1: Trailer Towing System Wiring Diagram (1 Of 4)
G07112383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

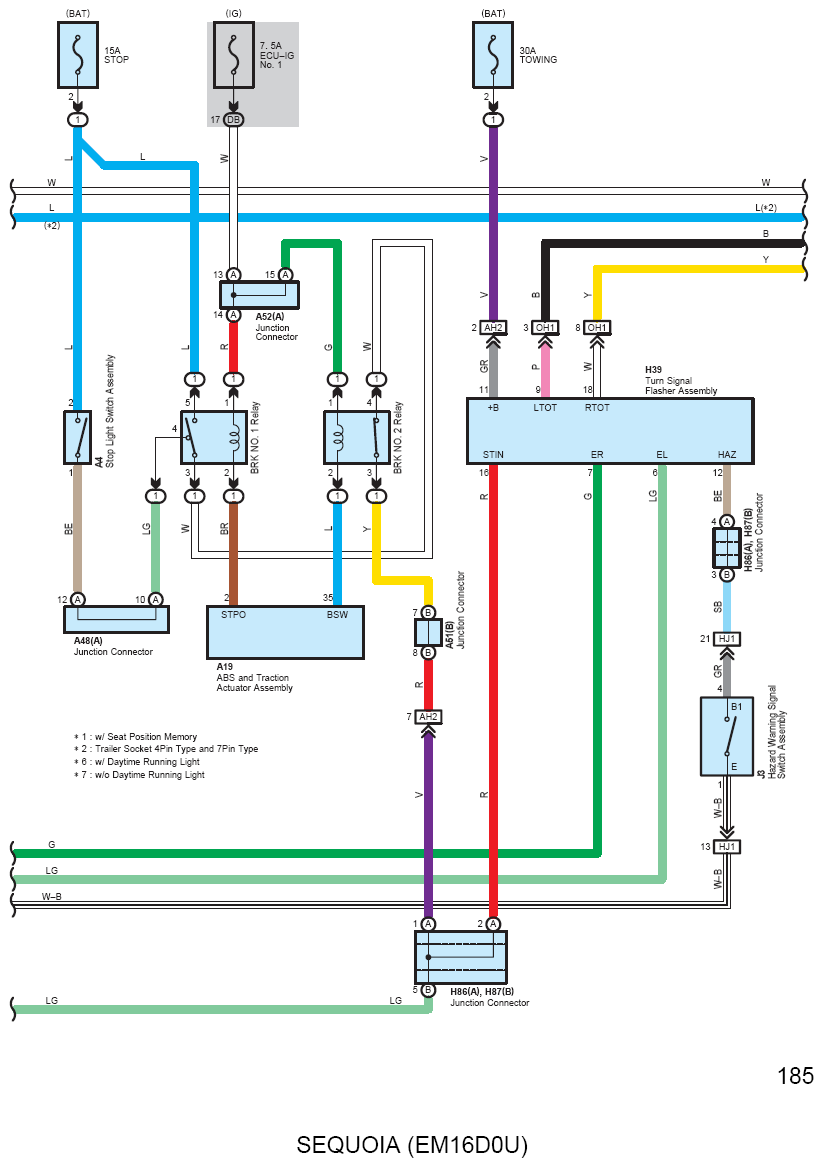

Fig 2: Trailer Towing System Wiring Diagram (2 Of 4)
G07112384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

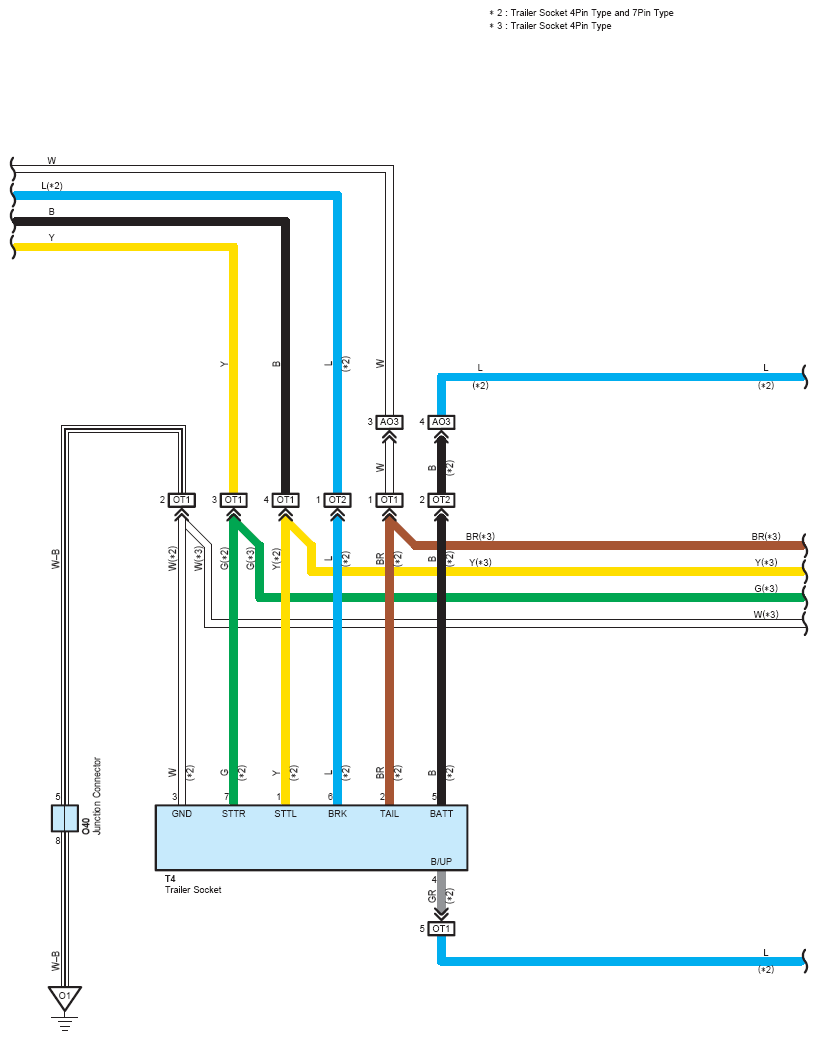

Fig 3: Trailer Towing System Wiring Diagram (3 Of 4)
G07112385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

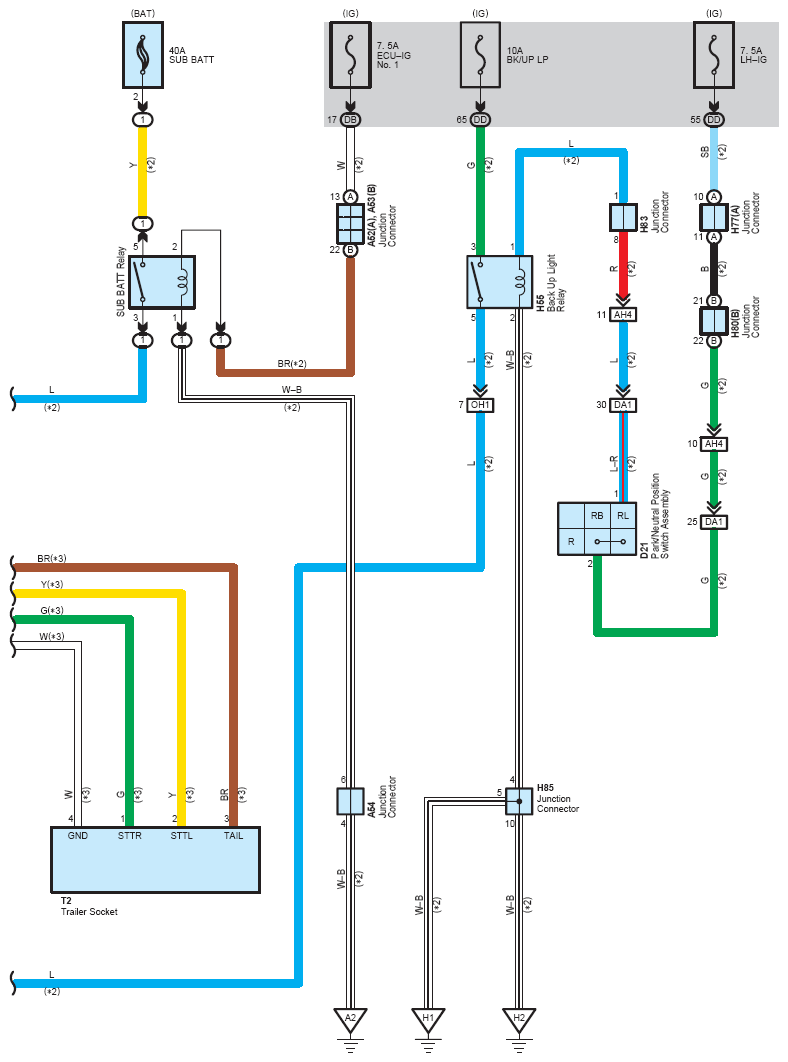

Fig 4: Trailer Towing System Wiring Diagram (4 Of 4)
G07112386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
