Shift Lock: Notes

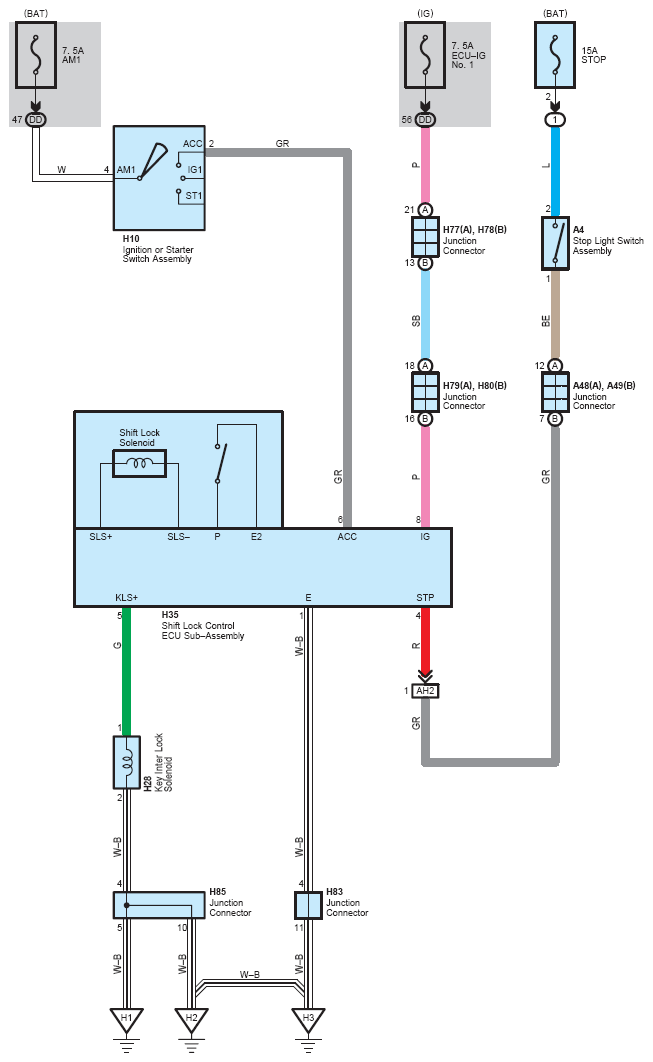

Fig 1: Shift Lock Electrical Wiring Diagram

G07112446

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
