OEM System Circuits: SRS: Notes

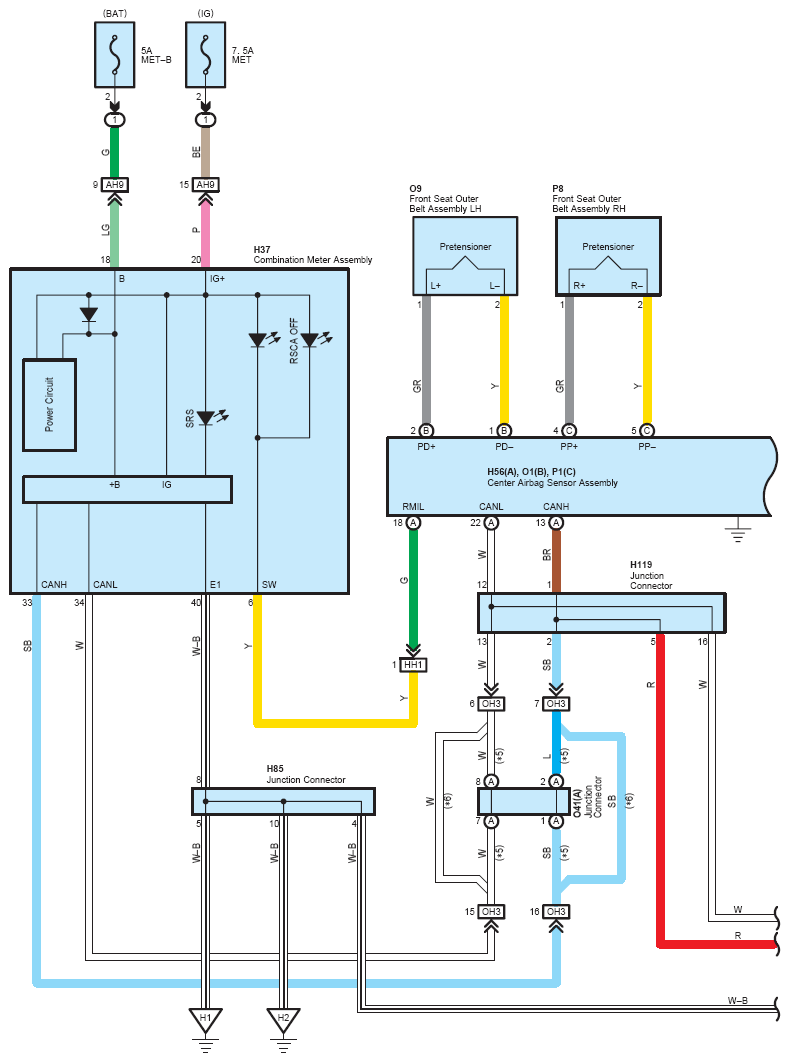

Fig 1: SRS Electrical Wiring Diagram (1 Of 5)
G07112441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

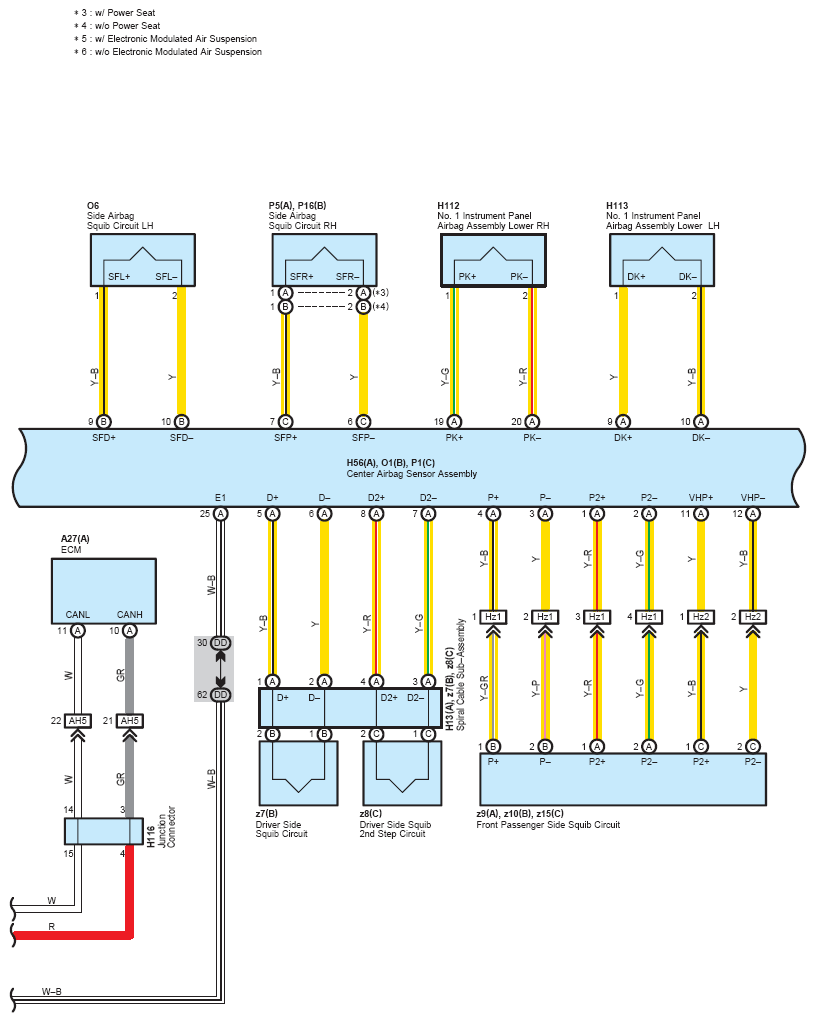

Fig 2: SRS Electrical Wiring Diagram (2 Of 5)
G07112442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

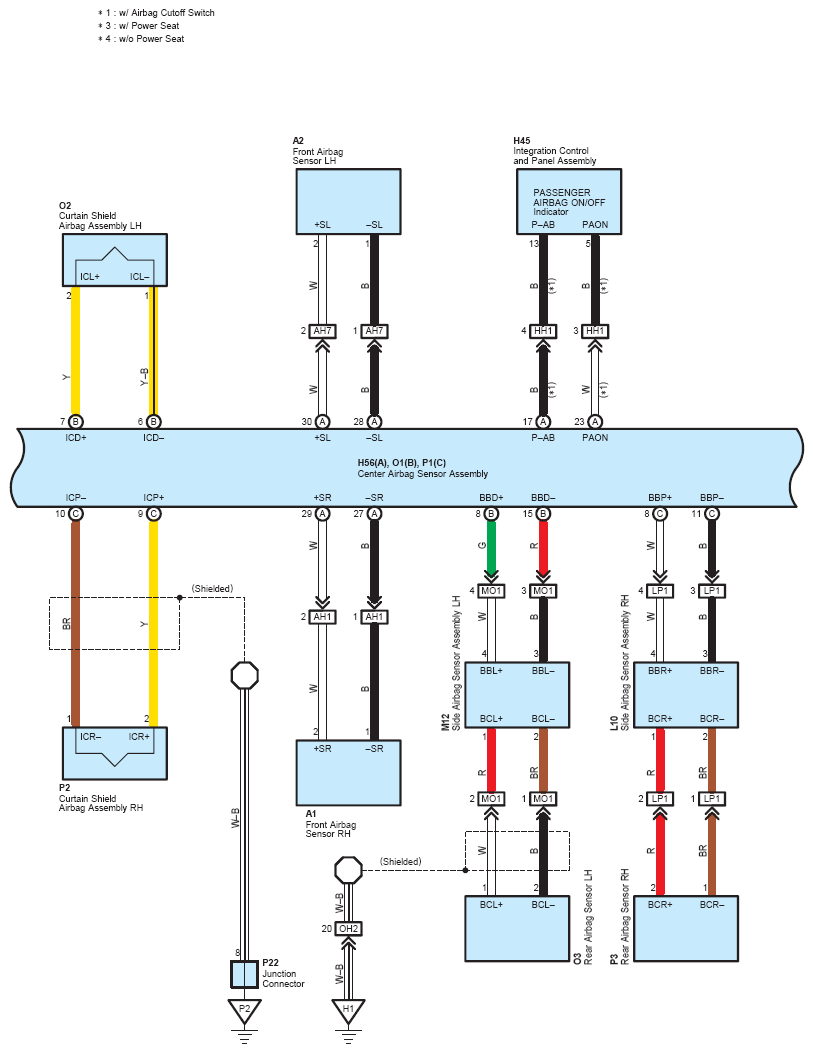

Fig 3: SRS Electrical Wiring Diagram (3 Of 5)
G07112443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

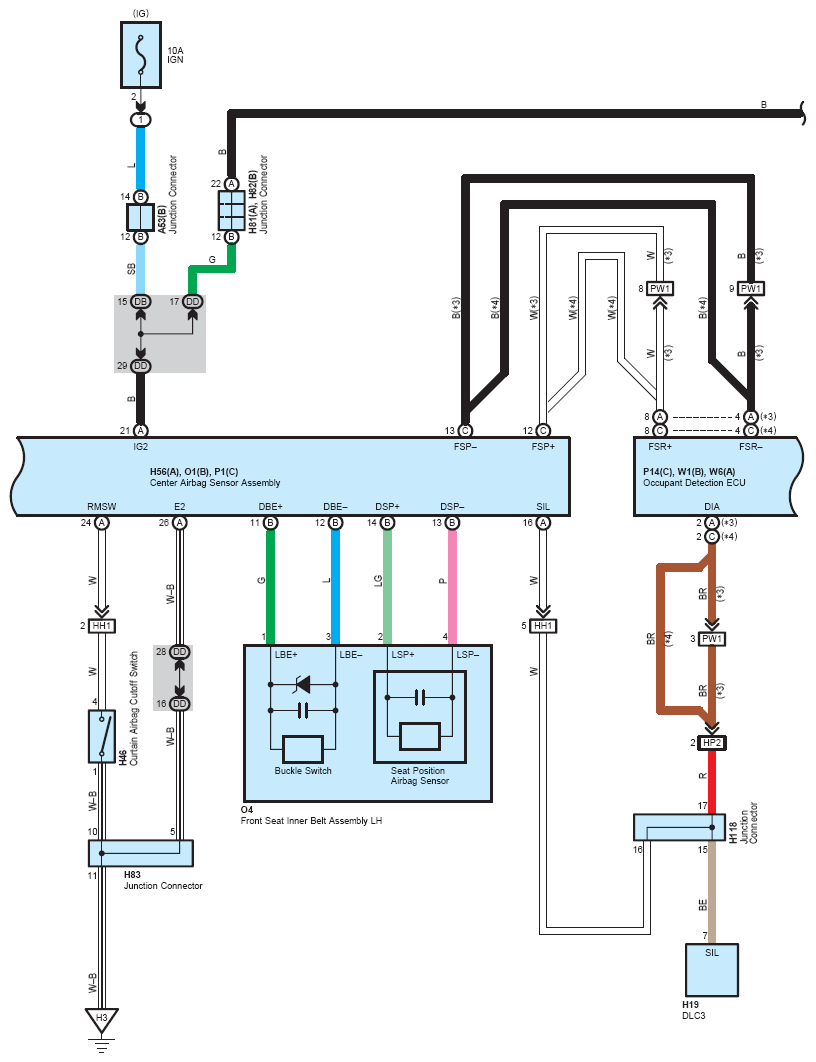

Fig 4: SRS Electrical Wiring Diagram (4 Of 5)
G07112444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

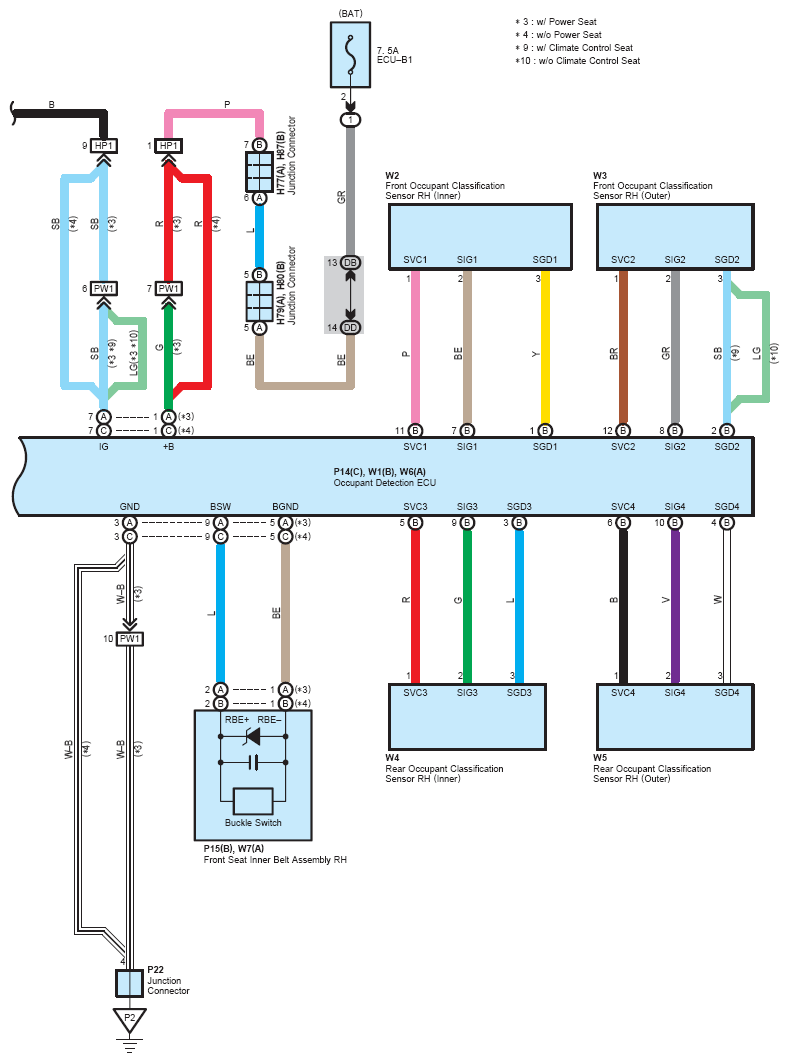

Fig 5: SRS Electrical Wiring Diagram (5 Of 5)
G07112445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
