Door Lock Control: Notes

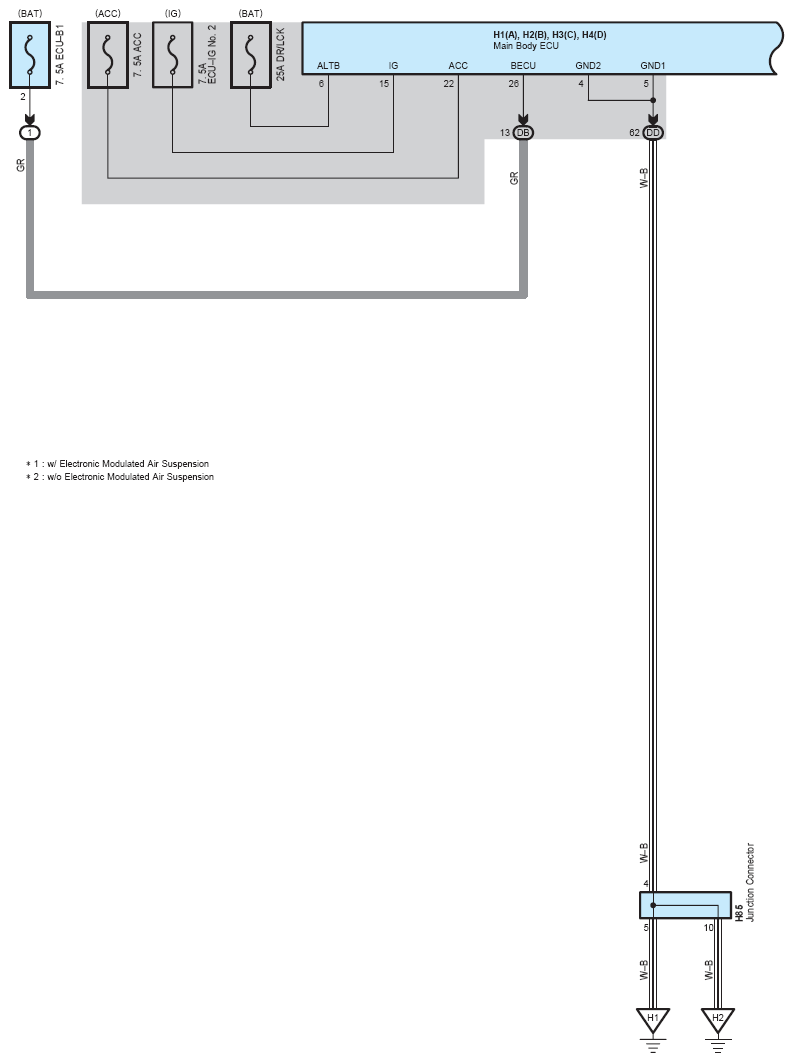

Fig 1: Door Lock Control System Wiring Diagram (1 Of 5)
G07112454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

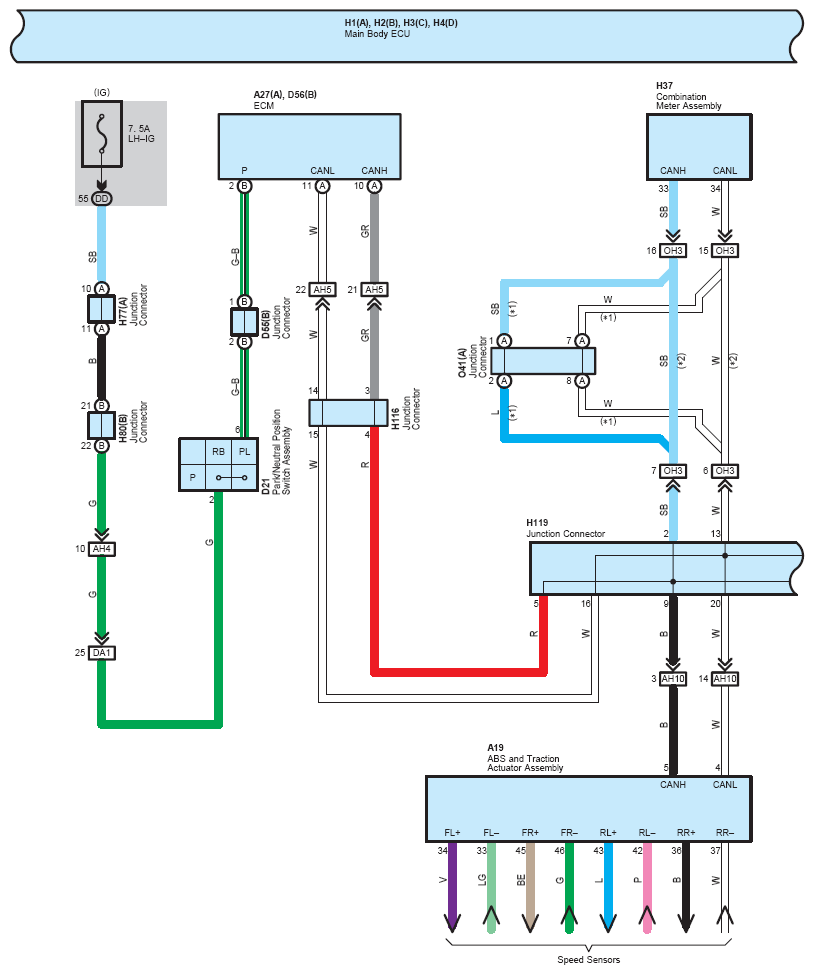

Fig 2: Door Lock Control System Wiring Diagram (2 Of 5)
G07112455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

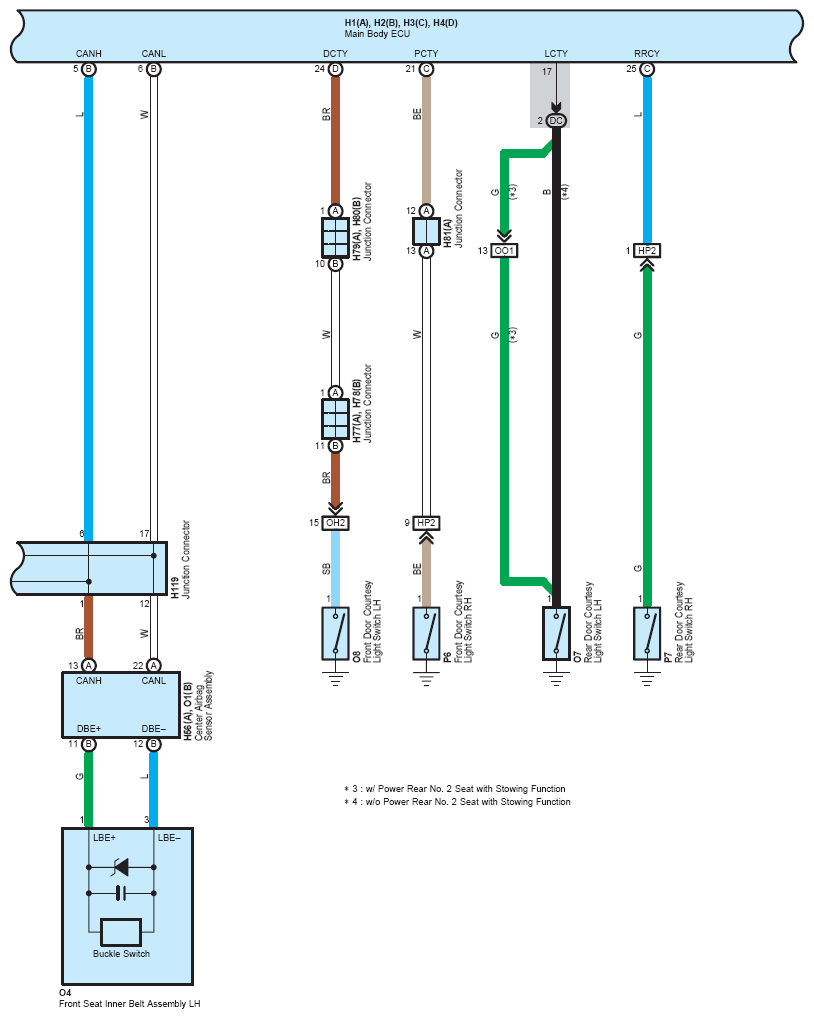

Fig 3: Door Lock Control System Wiring Diagram (3 Of 5)
G07112456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

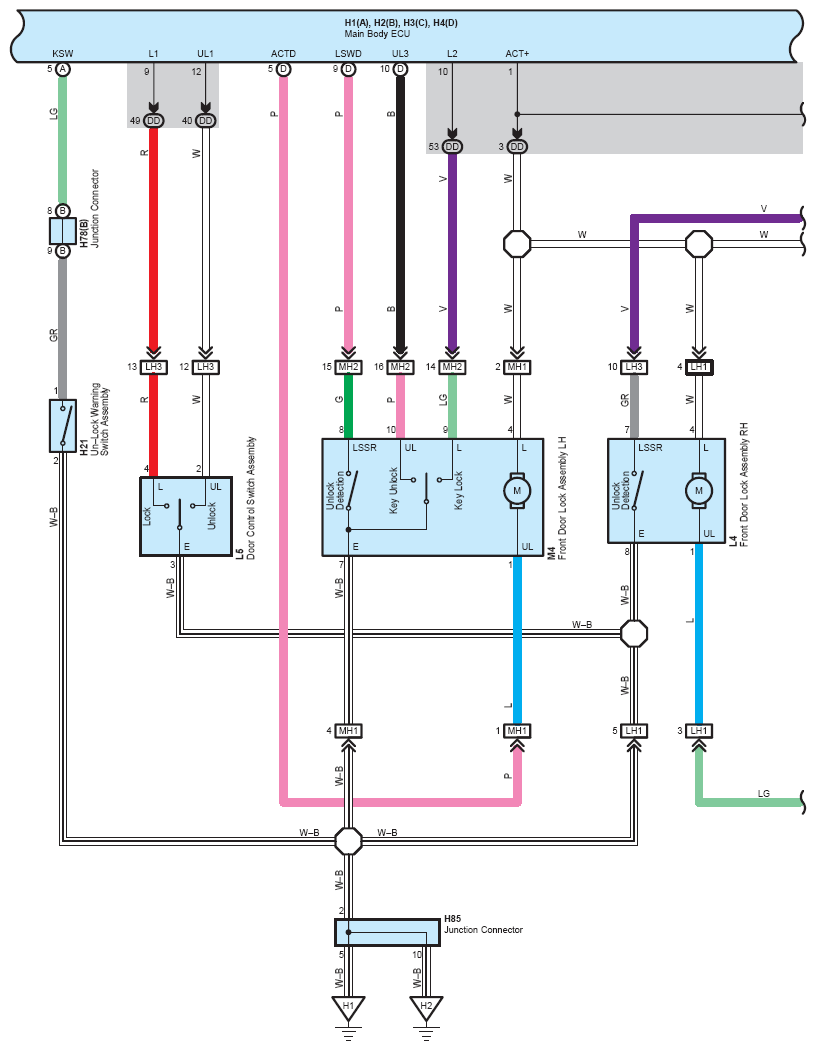

Fig 4: Door Lock Control System Wiring Diagram (4 Of 5)
G07112457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

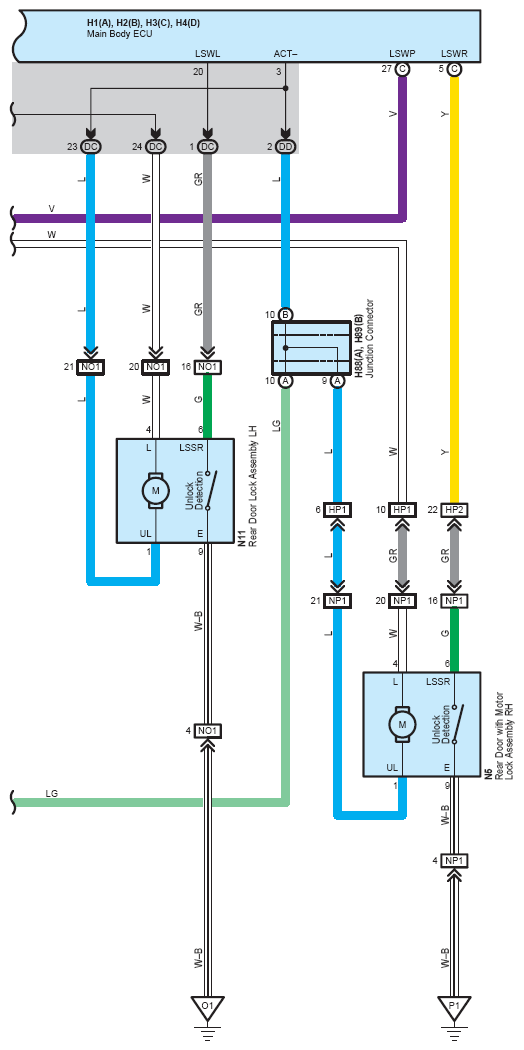

Fig 5: Door Lock Control System Wiring Diagram (5 Of 5)
G07112458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
